Frankfurt / Main, Germany (FFMJ00DEU)

RESPONSIBLE AGENCY BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION ffmj00deu_20240215.log
STATUS IN EPN included since 15-12-2019
LAST AVAILABLE DATA 17-04-2024
LAST RECEIVER JAVAD TRE_3 DELTA (15-02-2024 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA LEIAR25.R3/LEIT (04-09-2019 to now)
INDIVIDUAL CALIBRATION(S)
  • LEIAR25.R3/LEIT (SN: 09050002) from 2019-09-04 to now :
  • LEIAR25.R3/LEIT (SN: 10020025) from 2019-01-16 to 2019-09-04 :
  • LEIAR25.R4/LEIT (SN: 10231013) from 2011-02-08 to 2019-01-16 :
DATA ROUTINELY ANALYSED BY BKG, GFZ, MUT, ROB
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 03-05-2021.

RINEX V2.11 - GPS+GLO+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 123/2021 N/A
BEV 123/2021 N/A
BKGI 123/2021 N/A
RINEX V3.05 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 102/2024 78.57%
BEV 108/2024 100%
BKGI 108/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 109/2024 (T) 100% 100%
BKGI 109/2024 (T) 100% 100%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

FFMJ00DEU0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/04/18 19:39 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/04/18 19:39 RTCM 3.2/1033: Incorrect Receiver SN in stream (1I3W3LQ8D2UY90QDSPVJ) wrt site log (02884)

    2024/04/18 19:39 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0450 m) wrt site log (0.20596 m)

    2024/04/18 19:39 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.7700 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/04/18 17:31 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/04/18 17:31 RTCM 3.2/1033: Incorrect Receiver SN in stream (1I3W3LQ8D2UY90QDSPVJ) wrt site log (02884)

    2024/04/18 17:31 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0450 m) wrt site log (0.20596 m)

    2024/04/18 17:31 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.7700 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/04/17 22:35 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/04/17 22:35 RTCM 3.2/1033: Incorrect Receiver SN in stream (1I3W3LQ8D2UY90QDSPVJ) wrt site log (02884)

    2024/04/17 22:35 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0450 m) wrt site log (0.20596 m)

    2024/04/17 22:35 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.7700 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing only positions for the station FFMJ00DEU
Last ETRF2000 position valid from 349/2019 to 316/2022
expressed at epoch 133/2021
X = 4053456.157 m
Y = 617729.425 m
Z = 4869395.497 m
Position time series

Position time series

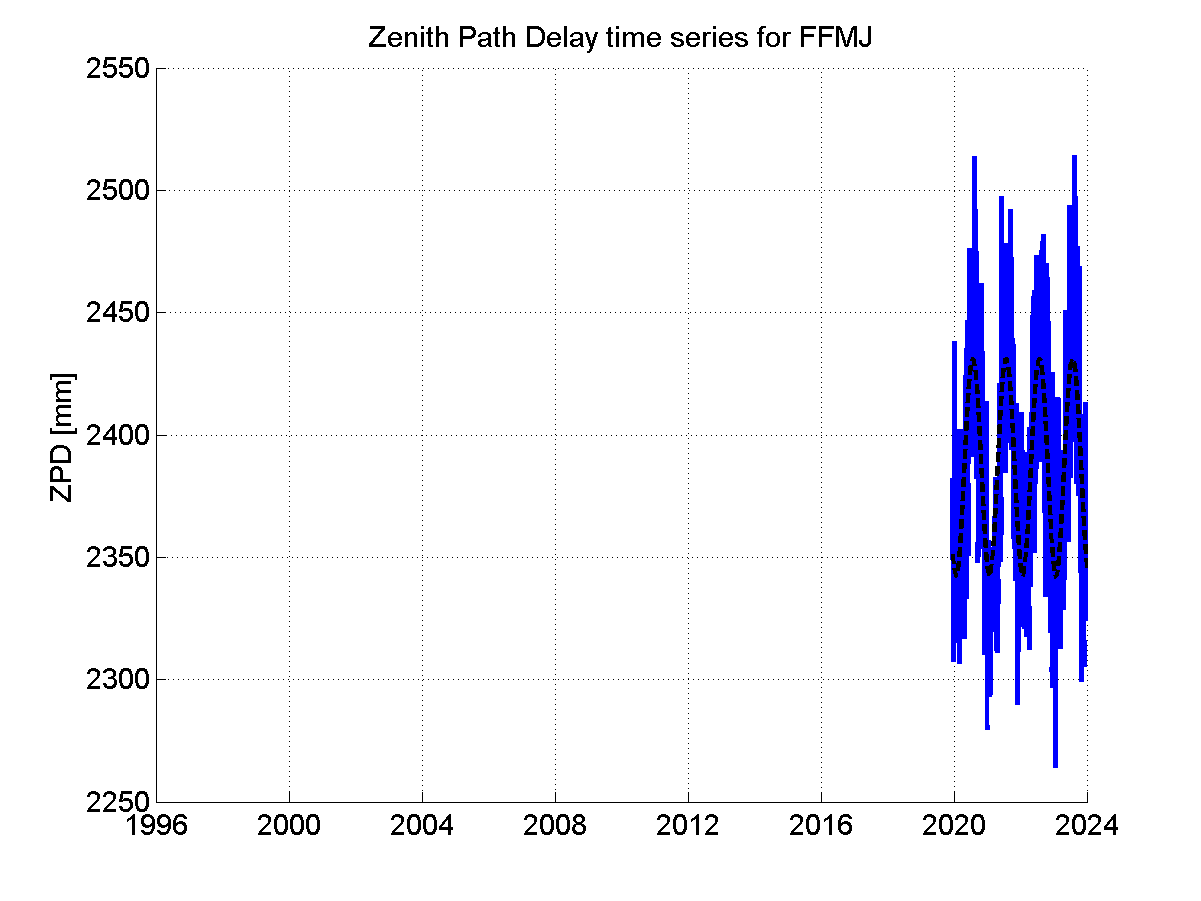

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

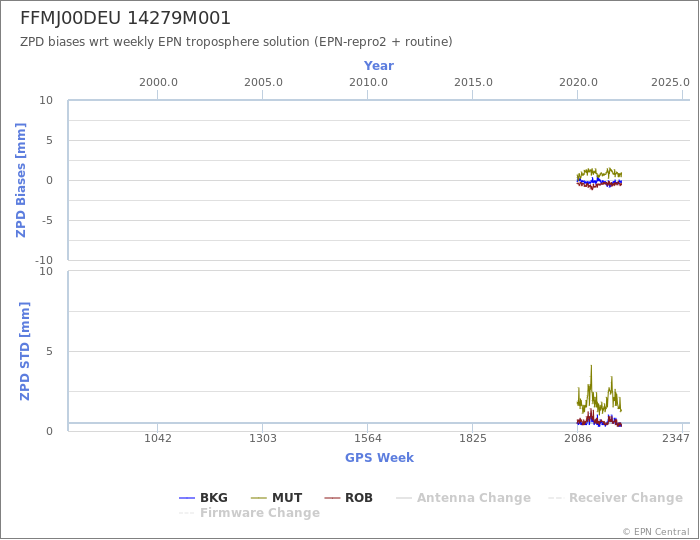

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
