EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	DGT (Direcao-Geral do Territorio)
RESPONSIBLE FOR METADATA	DGT (Direcao-Geral do Territorio)
CURRENT STATION CONFIGURATION	pdel00prt_20240219.log
STATUS IN EPN	included since 11-02-2001
LAST AVAILABLE DATA	18-04-2024
LAST RECEIVER	TRIMBLE ALLOY (19-02-2024 to now)
SET TO TRACK	GPS+GLO+GAL
LAST ANTENNA	TRM159900.00/NONE (15-10-2021 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	COD, GFZ, IGE, MUT, WUT
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 14-07-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

PDEL00PRT0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5)
2024/04/18 23:45 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL) wrt source table (GPS+GLO+GAL+BDS+QZSS+SBAS)
2024/04/18 23:45 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.11407 m)
2024/04/18 23:45 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.1228 m) exceeds threshold

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5)
2024/04/18 21:59 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.11407 m)
2024/04/18 21:59 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.1228 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5)
2024/04/19 03:02 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.11407 m)
2024/04/19 03:02 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.1228 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

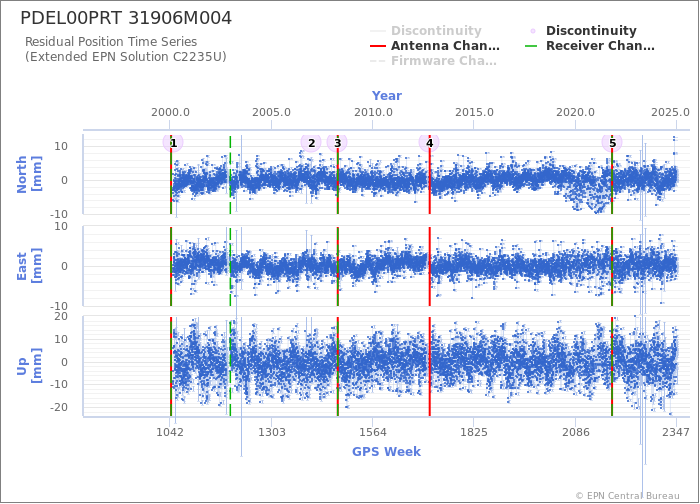

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station PDEL00PRT
Last ETRF2000 position valid from 290/2021 to 316/2022 expressed at epoch 001/2010
X = 4551596.014 m	Vx = -0.0036 m/y
Y = -2186893.385 m	Vy = -0.0031 m/y
Z = 3883410.588 m	Vz = -0.0017 m/y
