Rakhiv, Ukraine (RAH100UKR)

RESPONSIBLE AGENCY NULP (National University "Lviv Polytechnic")
RESPONSIBLE FOR METADATA NULP (National University "Lviv Polytechnic")
CURRENT STATION CONFIGURATION rah100ukr_20230412.log
STATUS IN EPN included since 09-01-2022
LAST AVAILABLE DATA 17-04-2024
LAST RECEIVER TRIMBLE NETR9 (22-07-2021 to now)
SET TO TRACK GPS+GLO+GAL+BDS+QZSS+SBAS
LAST ANTENNA TRM55971.00/NONE (29-08-2008 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BEV, BKG, GFZ, UPA

The RINEX 2 data are no more submitted to the EPN data centres since 20-09-2021.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 212/2021 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 102/2024 75%
BEV 108/2024 96.43%
BKGE 108/2024 96.43%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 109/2024 (U) 97.02% 94.05%
BKGE 109/2024 (U) 97.02% 94.05%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing only positions for the station RAH100UKR
Last ETRF2000 position valid from 010/2022 to 316/2022
expressed at epoch 156/2022
X = 3895974.433 m
Y = 1751353.798 m
Z = 4721320.588 m

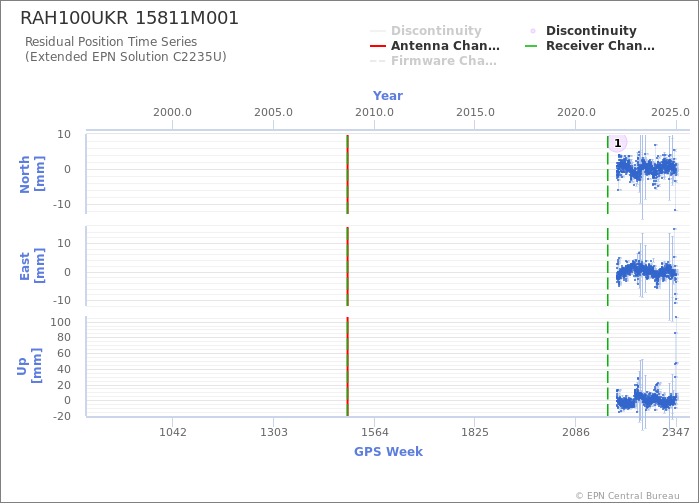

Position time series

Position time series

Location

Pictures
