EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE FOR METADATA	IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION	alac00esp_20240315.log
STATUS IN EPN	included since 05-09-1999
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-ALAC00ESP
LAST AVAILABLE DATA	01-07-2024
LAST RECEIVER	LEICA GR50 (15-03-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR25.R3/LEIT (15-09-2010 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R3/LEIT (SN: 10250007) from 2010-09-15 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2010-08-13)
DATA ROUTINELY ANALYSED BY	ASI, BEK, IGE, IGN
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 02-12-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

ALAC00ESP0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/07/02 17:21 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)
2024/07/02 17:21 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/07/02 17:21 RTCM 3.2/1006: Incorrect Antenna Height in stream (3.0350 m) wrt site log (3.19596 m)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/07/02 15:06 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/07/02 15:06 RTCM 3.2/1006: Incorrect Antenna Height in stream (3.0350 m) wrt site log (3.19596 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/07/02 20:06 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/07/02 20:06 RTCM 3.2/1006: Incorrect Antenna Height in stream (3.0350 m) wrt site log (3.19596 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

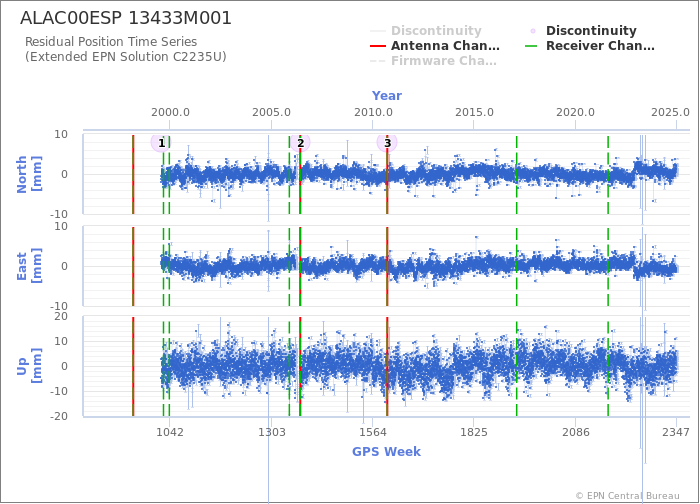

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station ALAC00ESP
Last ETRF2000 position valid from 266/2010 to 316/2022 expressed at epoch 001/2010
X = 5009051.387 m	Vx = -0.0006 m/y
Y = -42072.481 m	Vy = -0.0007 m/y
Z = 3935057.481 m	Vz = -0.0004 m/y
