Albacete, Spain (ALBA00ESP)

RESPONSIBLE AGENCY IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE FOR METADATA IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION alba00esp_20240315.log
STATUS IN EPN included since 09-09-2007
LAST AVAILABLE DATA 15-04-2024
LAST RECEIVER LEICA GR50 (15-03-2024 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA LEIAR25.R3/LEIT (14-09-2010 to now)
INDIVIDUAL CALIBRATION(S)
  • LEIAR25.R3/LEIT (SN: 10240005) from 2010-09-14 to now :
DATA ROUTINELY ANALYSED BY BEK, IGE, MUT, RGA
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 02-12-2020.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 335/2020 N/A
BEV 316/2020 N/A
BKGE 335/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 100/2024 78.57%
BEV 106/2024 100%
BKGE 106/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 107/2024 (N) 95.83% 95.24%
BKGE 107/2024 (N) 100% 100%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

ALBA00ESP0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/04/15 17:27 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)

    2024/04/15 17:27 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)

    2024/04/15 17:27 RTCM 3.2/1006: Incorrect Antenna Height in stream (3.0590 m) wrt site log (3.21996 m)

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/04/15 15:12 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)

    2024/04/15 15:12 RTCM 3.2/1006: Incorrect Antenna Height in stream (3.0590 m) wrt site log (3.21996 m)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/04/15 20:11 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)

    2024/04/15 20:11 RTCM 3.2/1006: Incorrect Antenna Height in stream (3.0590 m) wrt site log (3.21996 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station ALBA00ESP
Last ETRF2000 position valid from 363/2013 to 316/2022
expressed at epoch 001/2010
X = 4962848.185 m Vx = -0.0053 m/y
Y = -160854.382 m Vy = -0.0011 m/y
Z = 3990884.182 m Vz = -0.0047 m/y

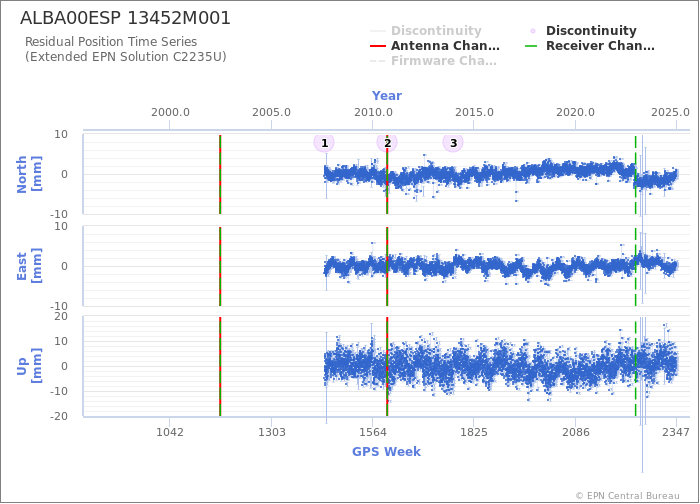

Position time series

Position time series

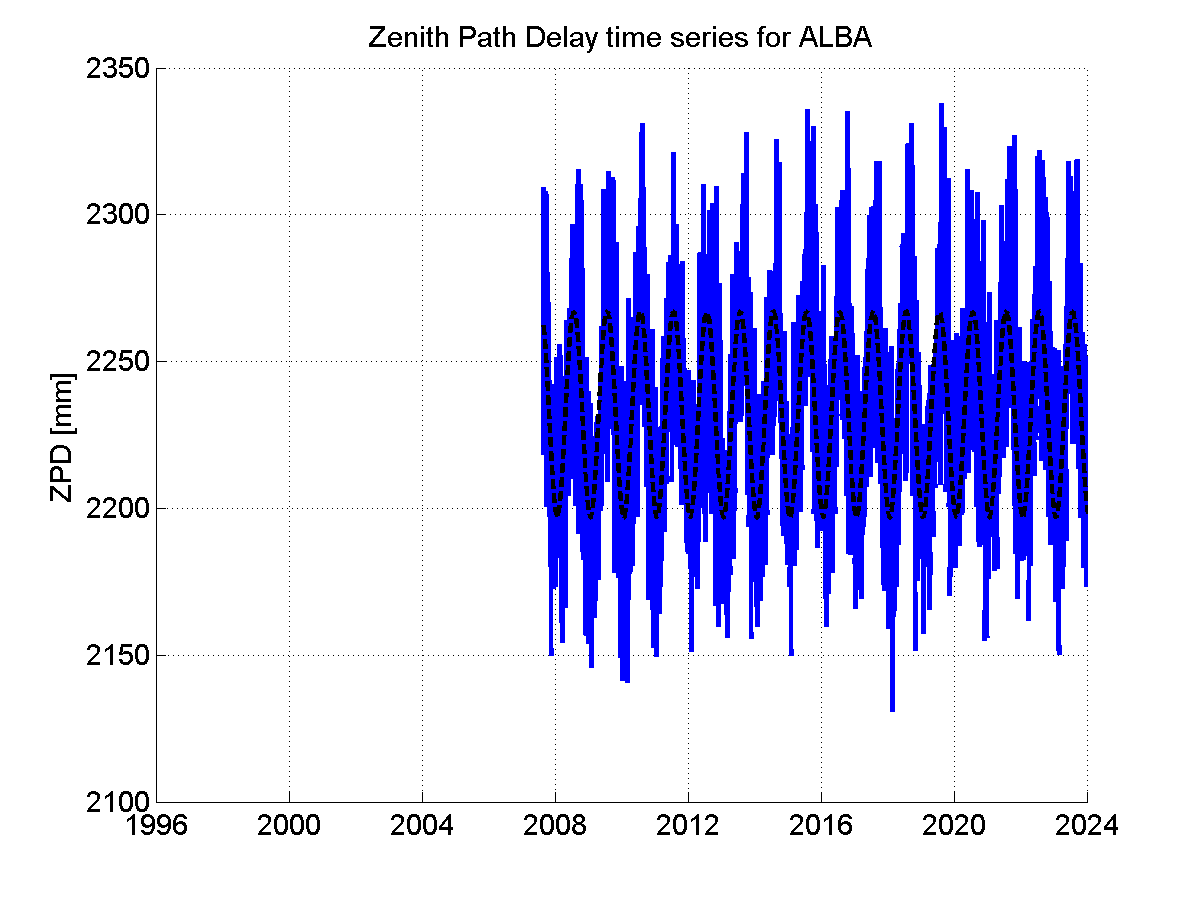

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

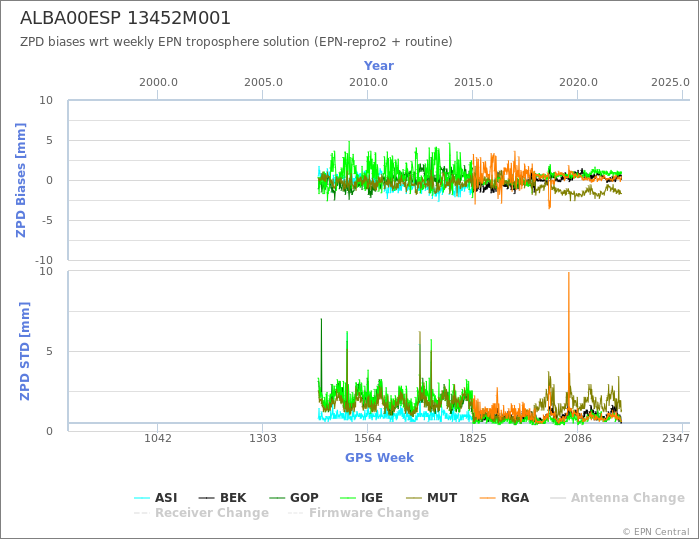

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

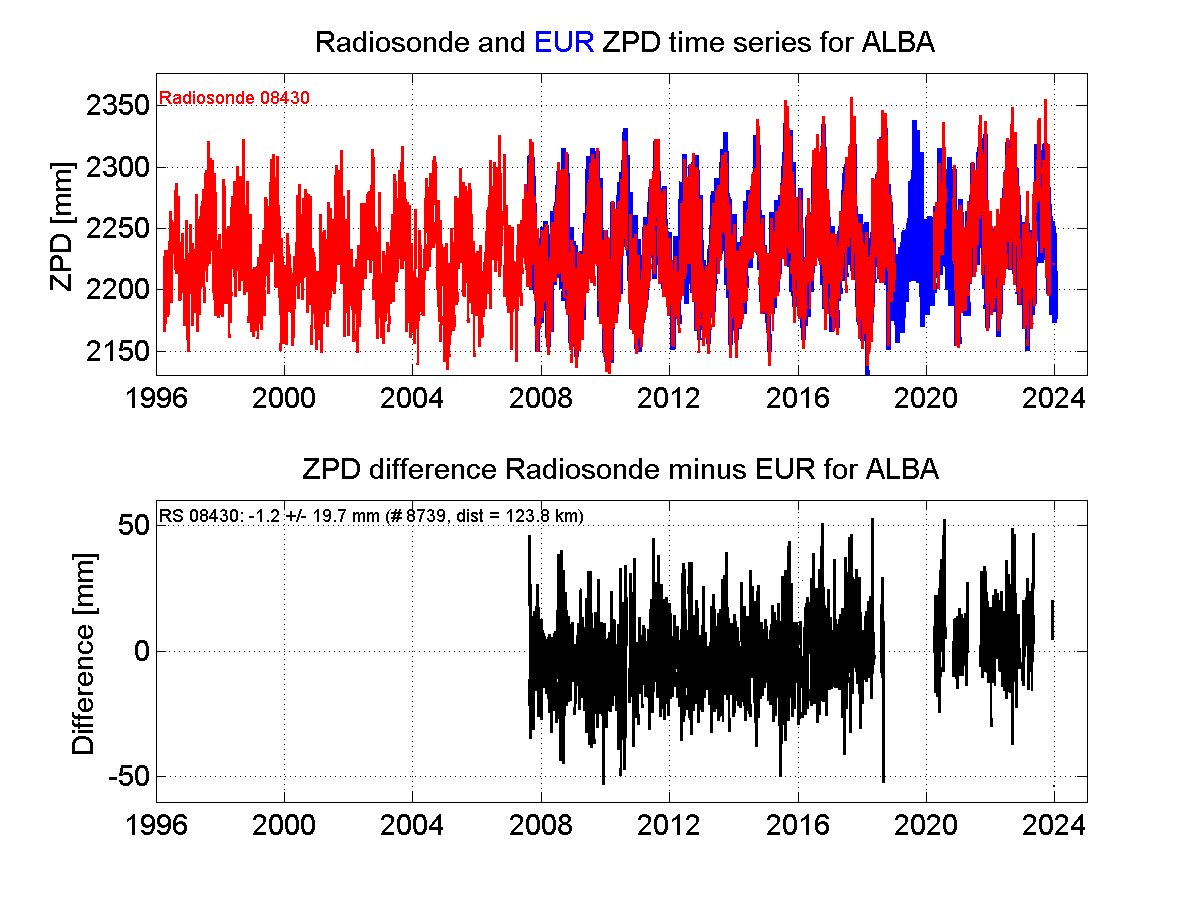

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
