CastleBar, Ireland (CASB00IRL)

RESPONSIBLE AGENCY OSI (Ordnance Survey Ireland/ Tailte Eireann National Mapping Division)
RESPONSIBLE FOR METADATA OSI (Ordnance Survey Ireland/ Tailte Eireann National Mapping Division)
CURRENT STATION CONFIGURATION casb00irl_20230331.log
STATUS IN EPN former since 08-12-2019
LAST AVAILABLE DATA 04-12-2019 (decommissioned station)
LAST RECEIVER LEICA GRX1200GGPRO (22-12-2016 to 05-12-2019)
SET TO TRACK GPS+GLO
LAST ANTENNA LEIAT504GG/LEIS (17-01-2008 to 05-12-2019)
INDIVIDUAL CALIBRATION(S) none
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 338/2019
BKGE 338/2019
RINEX V3.05
Daily
(data calendar)
Data centres Last data
BKGE298/2018
Hourly

No recent data available

Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station CASB00IRL
Last ETRF2000 position valid from 264/2014 to 338/2019
expressed at epoch 001/2010
X = 3721280.123 m Vx = -0.0004 m/y
Y = -608536.769 m Vy = -0.0007 m/y
Z = 5127050.944 m Vz = 0.0003 m/y

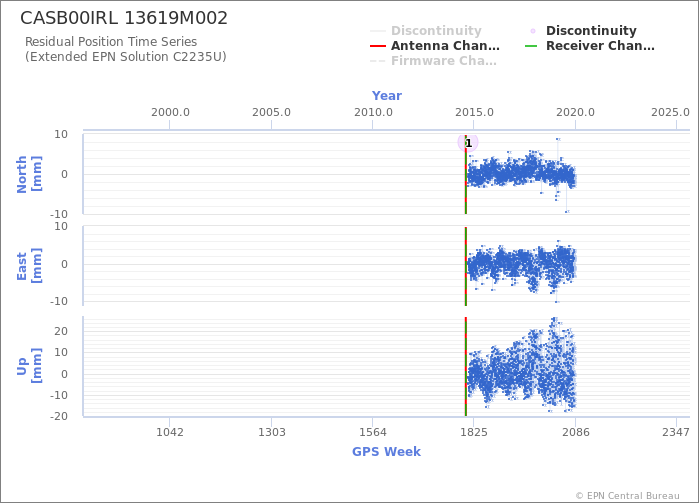

Position time series

Position time series

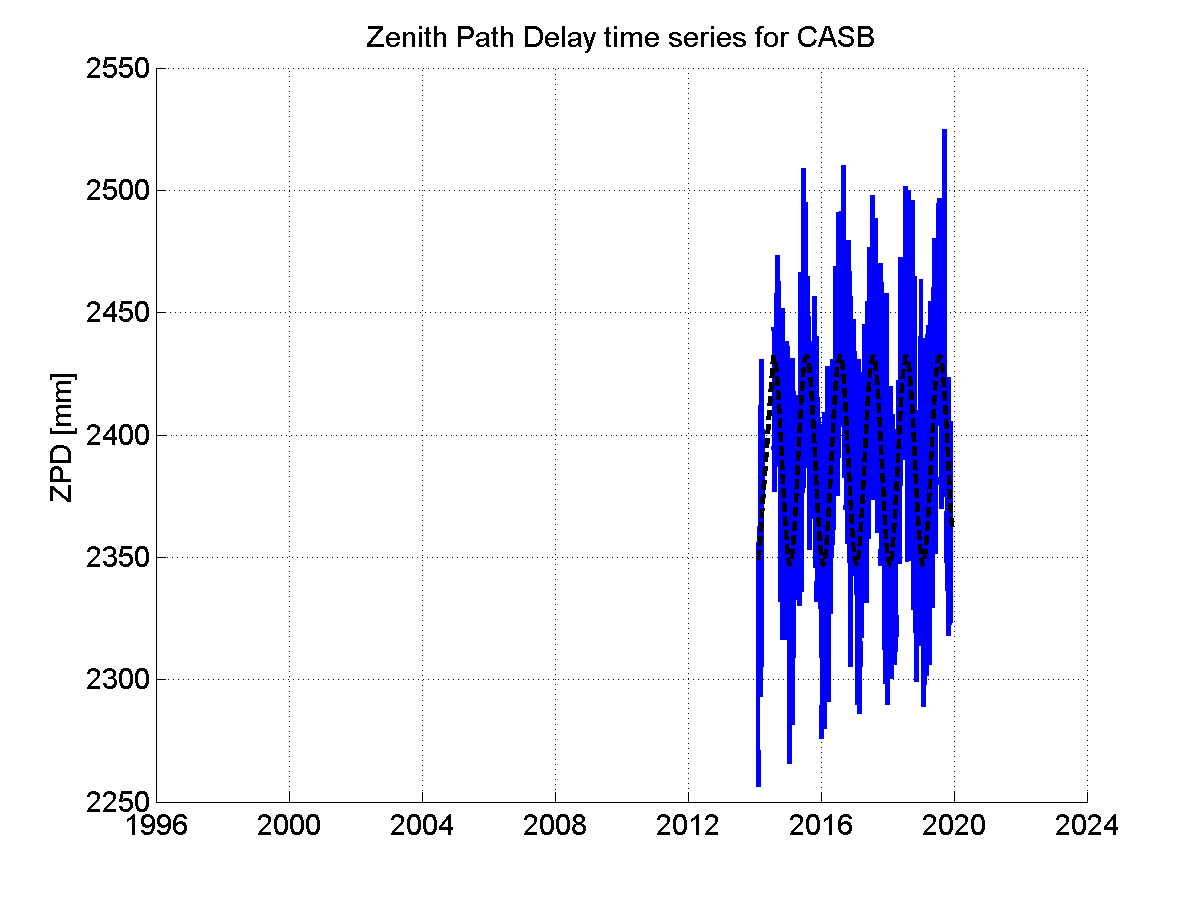

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

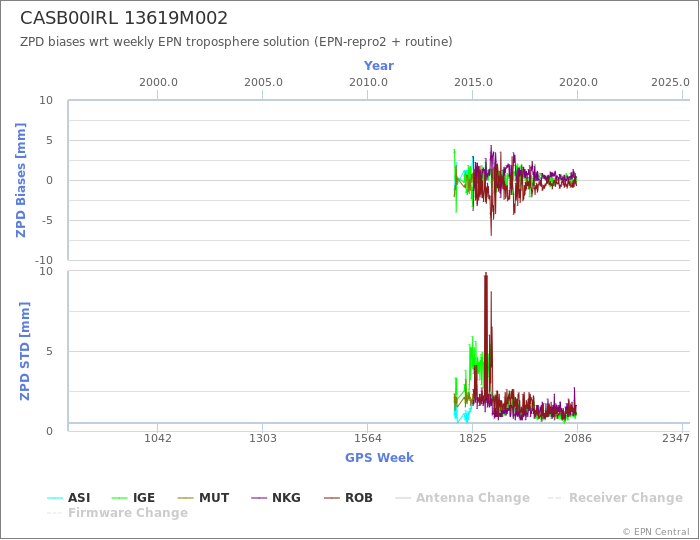

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
