EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	ICGC (Institut Cartografic i Geologic de Catalunya)
RESPONSIBLE FOR METADATA	ICGC (Institut Cartografic i Geologic de Catalunya)
CURRENT STATION CONFIGURATION	case00esp_20231113.log
STATUS IN EPN	included since 31-07-2016
LAST AVAILABLE DATA	23-04-2024
LAST RECEIVER	LEICA GR50 (12-11-2023 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR25.R4/NONE (20-04-2016 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/NONE (SN: 726351) from 2016-04-20 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2015-12-01)
DATA ROUTINELY ANALYSED BY	BEK, IGE, SUT, UPA
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 15-04-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

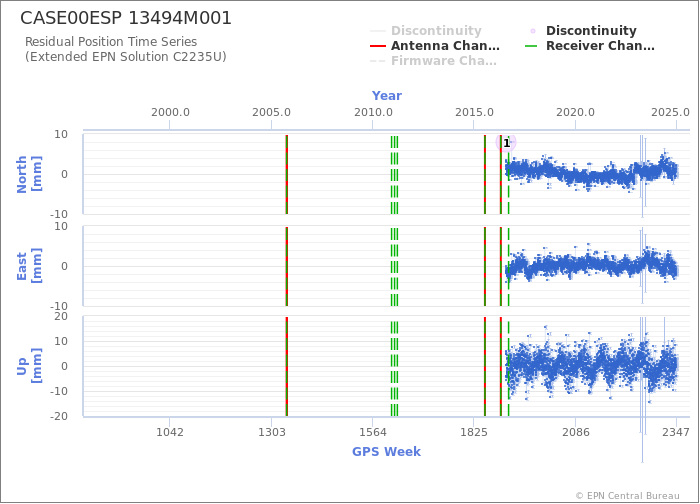

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station CASE00ESP
Last ETRF2000 position valid from 213/2016 to 316/2022 expressed at epoch 001/2010
X = 4749772.762 m	Vx = -0.0011 m/y
Y = 240959.530 m	Vy = 0.0001 m/y
Z = 4236095.917 m	Vz = -0.0010 m/y
