Tabor, Czechia (CTAB00CZE)

RESPONSIBLE AGENCY ZU (Land Survey Office)
RESPONSIBLE FOR METADATA ZU (Land Survey Office)
CURRENT STATION CONFIGURATION ctab00cze_20220818.log
STATUS IN EPN included since 21-03-2010
LAST AVAILABLE DATA 15-04-2024
LAST RECEIVER LEICA GR30 (18-08-2022 to now)
SET TO TRACK GPS+GLO+GAL+BDS+QZSS+SBAS
LAST ANTENNA LEIAR25.R4/LEIT (13-09-2011 to now)
INDIVIDUAL CALIBRATION(S)
  • LEIAR25.R4/LEIT (SN: 10471002) from 2011-09-13 to now :
DATA ROUTINELY ANALYSED BY BEV, MUT, RGA, SUT, WUT
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 02-08-2022.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 213/2022 N/A
BEV 213/2022 N/A
BKGE 213/2022 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+QZSS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 100/2024 78.57%
BEV 106/2024 100%
BKGE 106/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 107/2024 (T) 100% 22.62%
BKGE 107/2024 (T) 100% 69.05%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

CTAB00CZE0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/04/16 19:00 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2024/04/16 19:00 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)

    2024/04/16 19:00 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.60) wrt site log (4.60/7.811)

    2024/04/16 19:00 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0666 m) wrt site log (0.22557 m)

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/04/16 16:48 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2024/04/16 16:48 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO+GAL+BDS+QZSS)

    2024/04/16 16:48 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.60) wrt site log (4.60/7.811)

    2024/04/16 16:48 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0666 m) wrt site log (0.22557 m)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/04/15 21:51 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+QZSS+SBAS)

    2024/04/15 21:51 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO+GAL+BDS+QZSS)

    2024/04/15 21:51 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.60) wrt site log (4.60/7.811)

    2024/04/15 21:51 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0666 m) wrt site log (0.22557 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station CTAB00CZE
Last ETRF2000 position valid from 029/2017 to 316/2022
expressed at epoch 001/2010
X = 4022510.298 m Vx = -0.0004 m/y
Y = 1053801.608 m Vy = -0.0002 m/y
Z = 4820712.215 m Vz = -0.0007 m/y

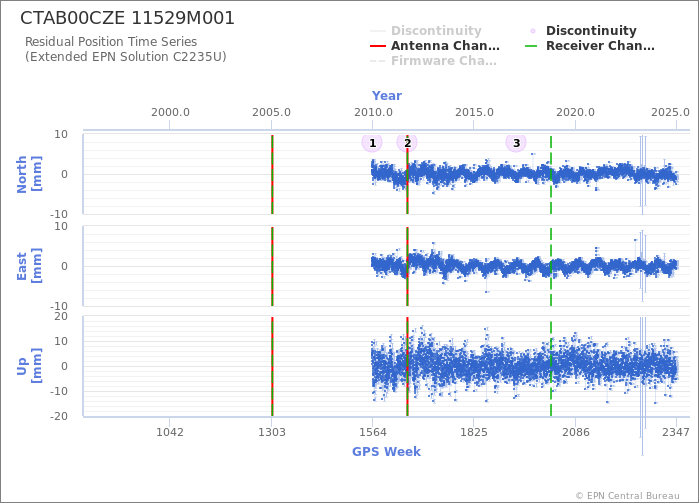

Position time series

Position time series

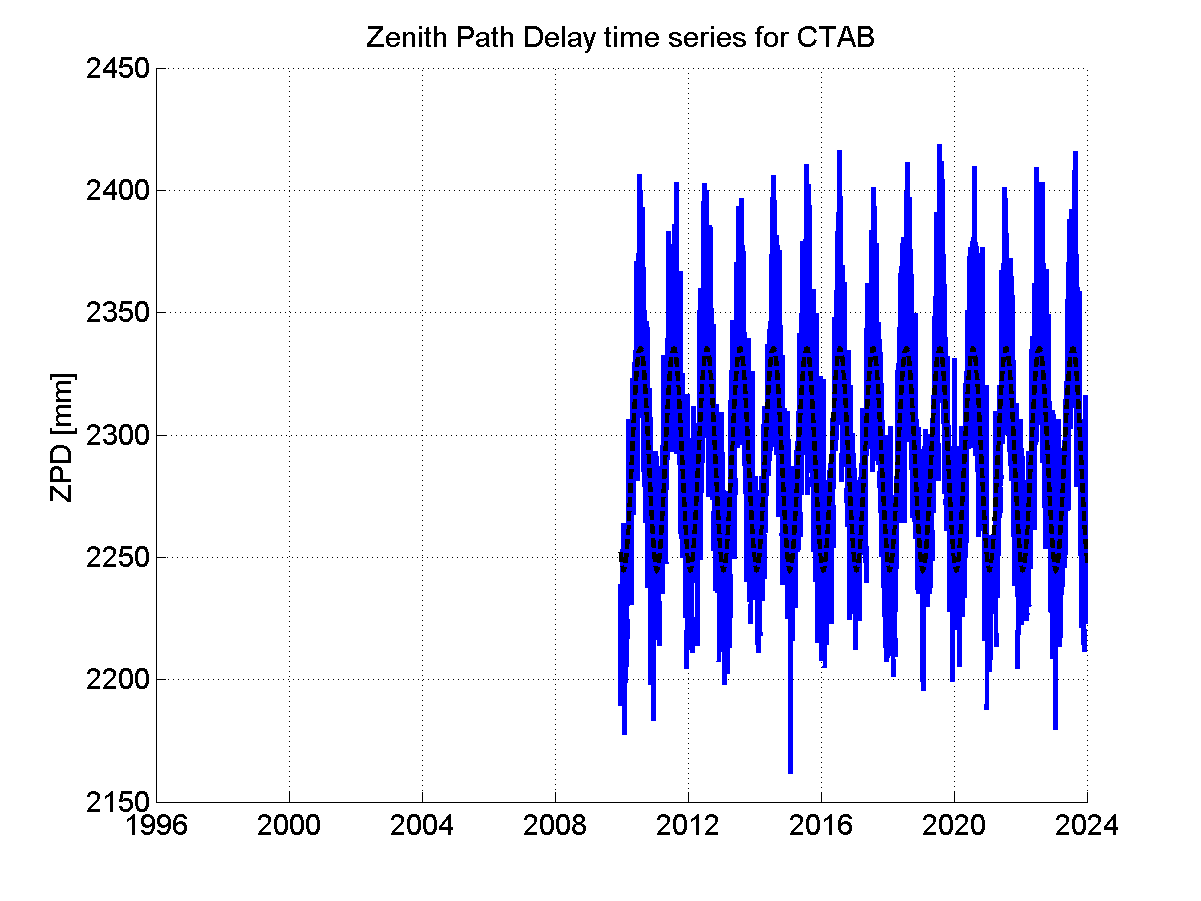

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

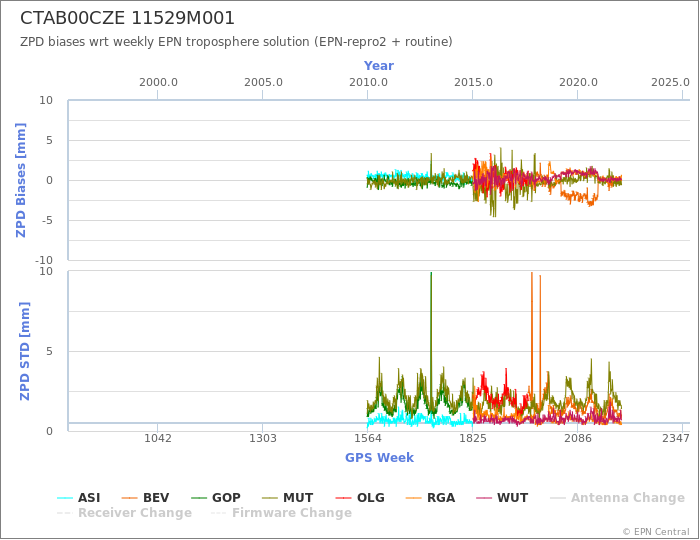

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

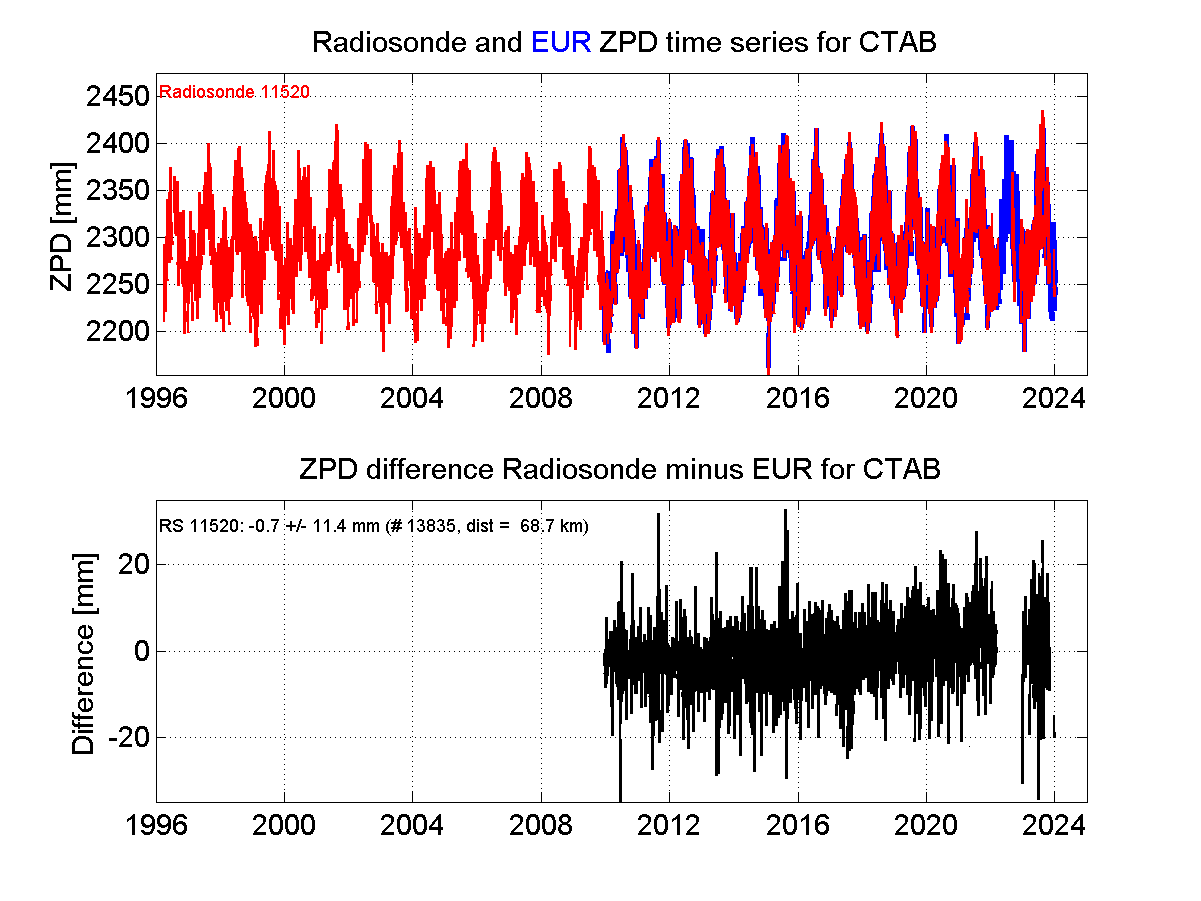

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
