EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	GUGiK (Head Office of Geodesy and Cartography)
RESPONSIBLE FOR METADATA	ASGEUPOS (ASG-EUPOS Management Center Head Office of Geodesy and Cartography)
CURRENT STATION CONFIGURATION	gwwl00pol_20240208.log
STATUS IN EPN	included since 08-06-2008
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	04-07-2024
LAST RECEIVER	TRIMBLE ALLOY (06-02-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	TRM59900.00/SCIS (28-10-2014 to now)
INDIVIDUAL CALIBRATION(S)	TRM55971.00/TZGD (SN: 30477056) from 2007-12-10 to 2014-10-28 : BERL - ROBOT (freq: G01, G02, R01, R02, date: 2007-11-13) TRM59900.00/SCIS (SN: 5319361129) from 2014-10-28 to now : BERL - ROBOT (freq: G01, G02, R01, R02, date: 2014-09-16)
DATA ROUTINELY ANALYSED BY	BEV, BKG, LPT, MUT, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 13-12-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

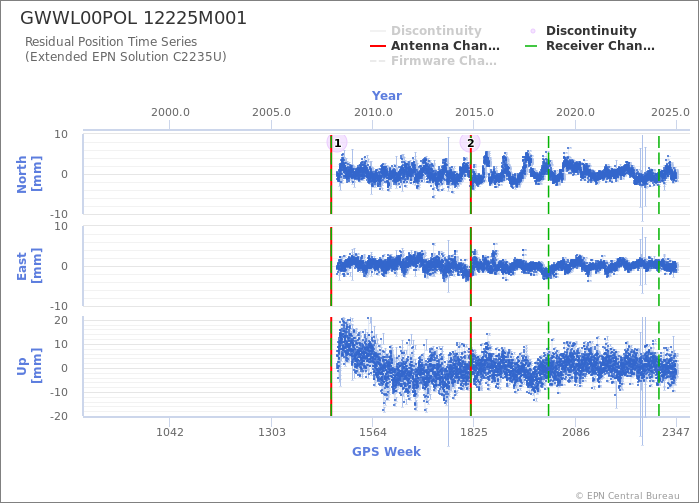

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station GWWL00POL
Last ETRF2000 position valid from 306/2014 to 316/2022 expressed at epoch 001/2010
X = 3734526.180 m	Vx = -0.0005 m/y
Y = 1015012.800 m	Vy = -0.0004 m/y
Z = 5053042.555 m	Vz = -0.0010 m/y
