RESPONSIBLE FOR METADATA BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE AGENCY BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION helg00deu_20220905.log
STATUS IN EPN included since 28-11-1999
LAST AVAILABLE DATA 04-02-2023
LAST RECEIVER JAVAD TRE_3 DELTA (03-03-2022 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA LEIAR25.R4/LEIT (11-09-2018 to now)
INDIVIDUAL CALIBRATION(S)
  • LEIAR25.R4/LEIT (SN: 725559) from 2014-09-09 to 2018-09-11 :
  • LEIAR25.R4/LEIT (SN: 726342) from 2018-09-11 to now :
  • LEIAT504GG/LEIS (SN: 200446) from 2008-09-02 to 2014-09-09 :
DATA ROUTINELY ANALYSED BY BKG, COE, GFZ, LPT, SUT
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 02-11-2021.

RINEX V2.11 - GPS+GLO+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 305/2021 N/A
BEV 305/2021 N/A
BKGE 305/2021 N/A
RINEX V3.05 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 029/2023 78.57%
BEV 034/2023 96.43%
BKGE 035/2023 100%
Hourly
Data centres Online Last data Availability Latency
BEV 305/2021 (J) N/A 0%
BKGE 305/2021 (J) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 036/2023 (G) 100% 100%
BKGE 036/2023 (G) 100% 100%

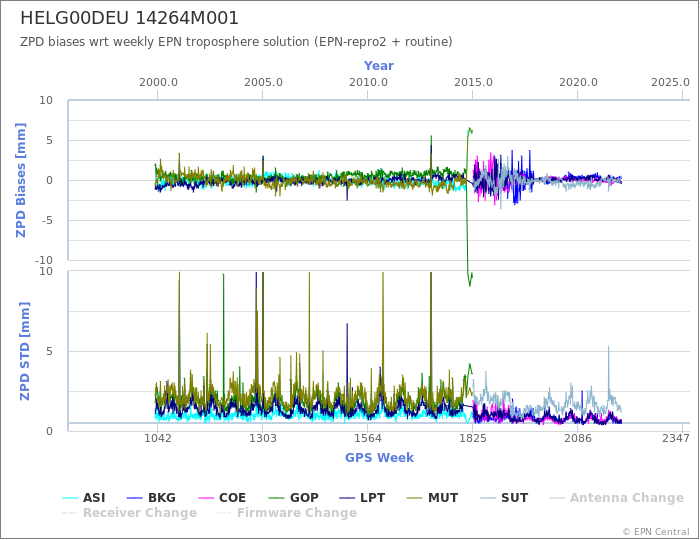

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

Real-time

HELG00DEU0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2023/02/04 20:05 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2023/02/04 20:05 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)

    2023/02/04 20:05 RTCM 3.2/1033: Incorrect Receiver SN in stream (1PVYSE0J310DY0QYWF01) wrt site log (02540)

    2023/02/04 20:05 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.7214 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2023/02/04 17:51 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2023/02/04 17:51 RTCM 3.2/1033: Incorrect Receiver SN in stream (1PVYSE0J310DY0QYWF01) wrt site log (02540)

    2023/02/04 17:51 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.7214 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2023/02/04 22:51 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2023/02/04 22:51 RTCM 3.2/1033: Incorrect Receiver SN in stream (1PVYSE0J310DY0QYWF01) wrt site log (02540)

    2023/02/04 22:51 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.7214 m) exceeds threshold

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Location

Pictures
