EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IGMI (Italian Military Geographic Institute)
RESPONSIBLE FOR METADATA	IGMI (Italian Military Geographic Institute)
CURRENT STATION CONFIGURATION	igm200ita_20201209.log
STATUS IN EPN	included since 04-11-2018
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	01-07-2024
LAST RECEIVER	LEICA GR30 (04-12-2020 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	LEIAR25.R4/LEIT (13-12-2016 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	ASI, BEK, IGE, UPA
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 09-04-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

IGM200ITA0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/07/02 20:48 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/07/02 20:48 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.31.101) wrt site log (4.31/7.403)
2024/07/02 20:48 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0030 m) wrt site log (0.16197 m)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/07/02 18:45 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/07/02 18:45 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.31.101) wrt site log (4.31/7.403)
2024/07/02 18:45 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0030 m) wrt site log (0.16197 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/07/01 23:47 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/07/01 23:47 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.31.101) wrt site log (4.31/7.403)
2024/07/01 23:47 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0030 m) wrt site log (0.16197 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

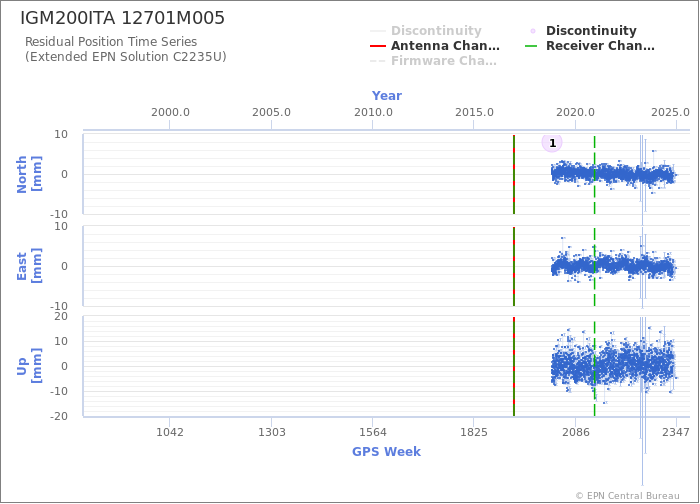

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station IGM200ITA
Last ETRF2000 position valid from 308/2018 to 316/2022 expressed at epoch 001/2010
X = 4523237.510 m	Vx = -0.0019 m/y
Y = 896768.294 m	Vy = -0.0003 m/y
Z = 4391808.520 m	Vz = 0.0008 m/y
