EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	FGI (National Land Survey of Finland)
RESPONSIBLE FOR METADATA	FGI (National Land Survey of Finland)
CURRENT STATION CONFIGURATION	kev200fin_20240417.log
STATUS IN EPN	included since 02-04-2017
LAST AVAILABLE DATA	22-04-2024
LAST RECEIVER	JAVAD TRE_3 DELTA (17-04-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	JAVRINGANT_DM/SCIS (04-07-2013 to now)
INDIVIDUAL CALIBRATION(S)	JAVRINGANT_DM/SCIS (SN: 00749) from 2013-07-04 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2012-08-28)
DATA ROUTINELY ANALYSED BY	GFZ, MUT, NKG, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 19-08-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

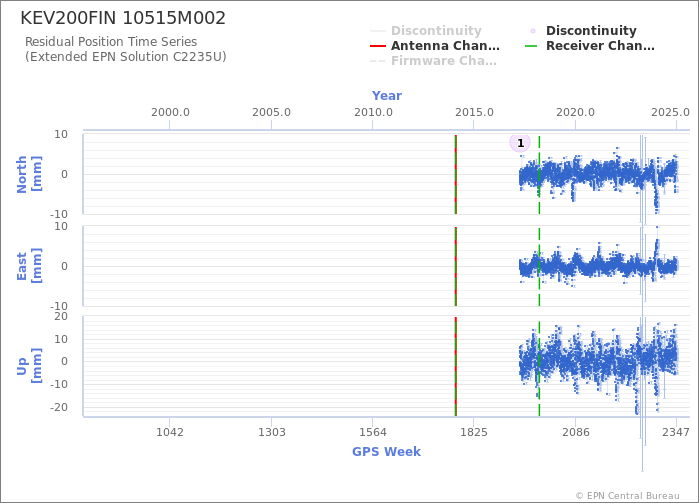

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station KEV200FIN
Last ETRF2000 position valid from 092/2017 to 316/2022 expressed at epoch 001/2010
X = 1972152.881 m	Vx = 0.0004 m/y
Y = 1005171.300 m	Vy = 0.0003 m/y
Z = 5961801.534 m	Vz = 0.0029 m/y
