Knjazevac, Serbia (KNJA00SRB)
RINEX V2.11 - GPS
Daily
(data calendar)| Data centres | Online | Last data | Availability | Download |
| EPNCB (historical) | 031/2019 | N/A | ||
| BEV | 111/2019 | 100% | ||
| BKGE | 111/2019 | 100% |
RINEX V3.02 - GPS+GLO+GAL+BDS+QZSS
Daily
(data calendar)| Data centres | Online | Last data | Availability | Download |
| EPNCB (historical) | 290/2018 | N/A | ||
| BEV | 108/2019 | 89% | ||
| BKGE | 108/2019 | 89% |

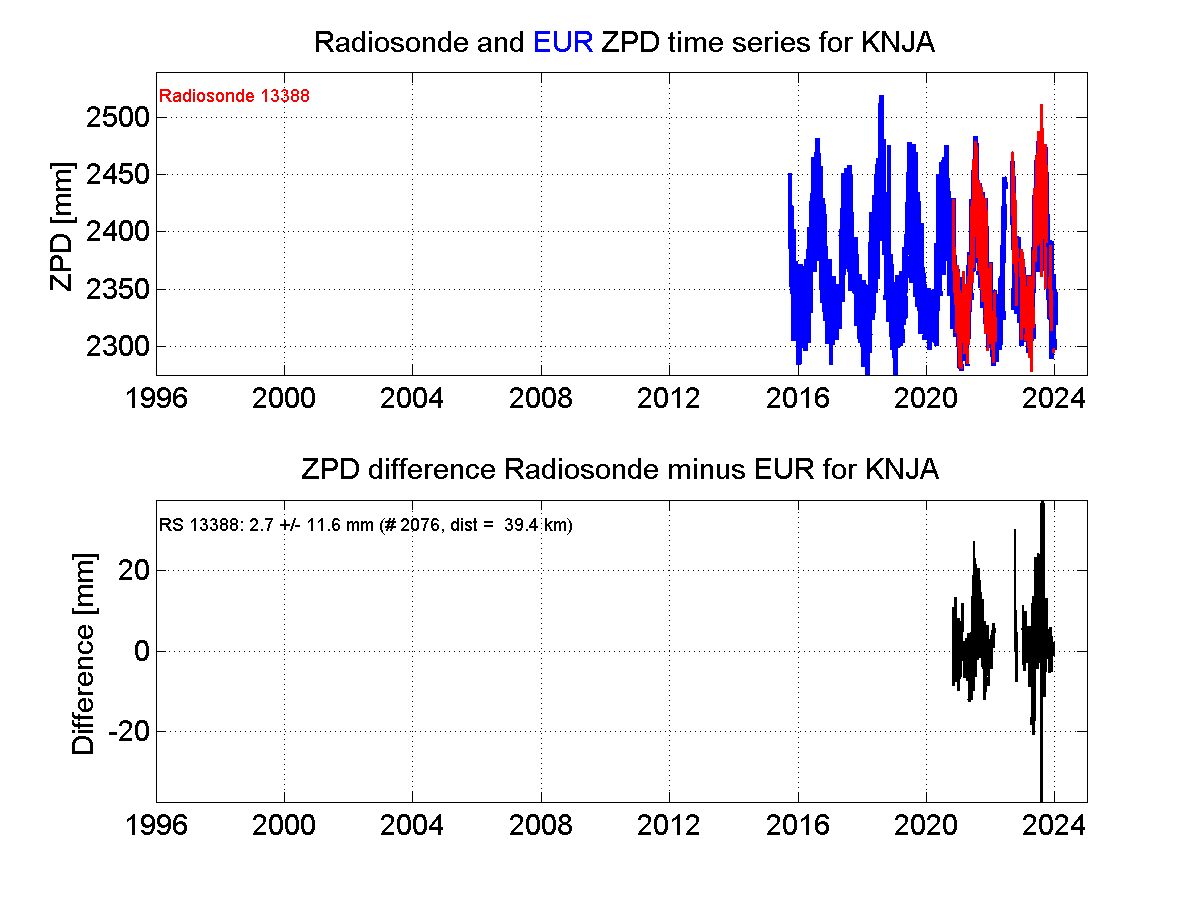

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
Location
Pictures
Picture of Trimble Zephyr Geodetic Model 1 GNSS antenna with radome and cable type is TRIMBLE SB3710 with label installed on 2011-07-19
The snapshot of Zephyr antenna model TRM41249.00, which was installed on 2010-03-04 on the cadastre building Knjazevac with TRIMBLE DCA9520 cable
A closer view of the rack cabinet where old GNSS receiver Trimble 5700 is situated.
A closer look of reference reciever TRIMBLE 5700 which was active until 2017-09-08 as part of KNJA CORS configuration
Picture of cabinet with previous GNSS reciever Trimble 4400 SSi, which was placed in Knjazevac until 2011-07-19.
Snapshot of local cadastre building in Knjazevac city, where AGROS CORS station KNJA is located
Existing Trimble Zephyr Geodetic antenna configuration w/Radome on the bricked chimney with belonging cable of type TRIMBLE SB3710 with label
A closer view of cabinets where Trimble GNSS receiver is placed along with other reference station modules of KNJA station
The number of tracked satellites on display of new GNSS receiver Trimble NetR9 which is installed in Knjazevac city for KNJA reference station
Local surrounding of GNSS antenna which is placed in the middle chimney near radio antennas and base stations for mobile telephone communication
The picture of bricked chimney on the roof of local cadastre building where KNJA CORS antenna is set
The picture of new reference GNSS receiver Trimble NetR9 in metal cabinet with belonging power supply, GNSS antenna cable and ethernet cables
