EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	ASI (Agenzia Spaziale Italiana)
RESPONSIBLE FOR METADATA	ASI (Agenzia Spaziale Italiana)
CURRENT STATION CONFIGURATION	lamp00ita_20240301.log
STATUS IN EPN	included since 20-06-1999
LAST AVAILABLE DATA	15-04-2024
LAST RECEIVER	LEICA GR10 (01-03-2024 to now)
SET TO TRACK	GPS+GLO+GAL
LAST ANTENNA	LEIAR20/NONE (26-09-2017 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	ASI, BEK, BKG, RGA, UPA
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 03-08-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

LAMP00ITA0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM7)
2024/04/15 21:57 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL) wrt source table (GPS+GLO+GAL+BDS+SBAS)
2024/04/15 21:57 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/6.525)
2024/04/15 21:57 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.12225 m)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM7)
2024/04/15 19:55 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/6.525)
2024/04/15 19:55 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.12225 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM7)
2024/04/16 00:54 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL) wrt source table (GPS+GLO+GAL+BDS)
2024/04/16 00:54 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/6.525)
2024/04/16 00:54 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.12225 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

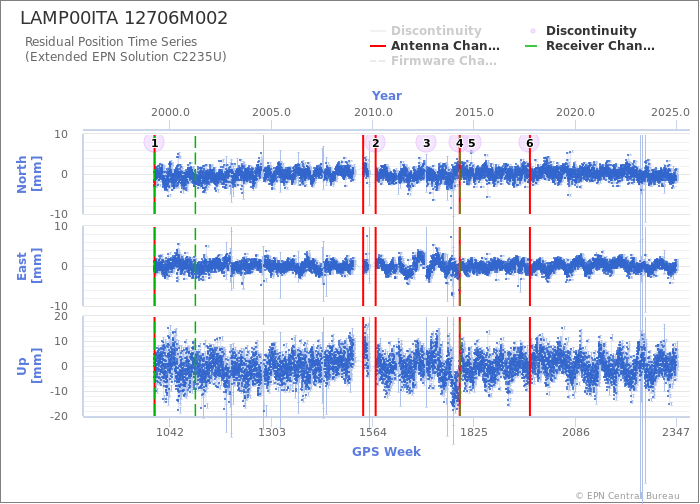

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station LAMP00ITA
Last ETRF2000 position valid from 274/2017 to 316/2022 expressed at epoch 001/2010
X = 5073165.016 m	Vx = -0.0017 m/y
Y = 1134512.272 m	Vy = -0.0038 m/y
Z = 3683180.904 m	Vz = 0.0018 m/y
