Villeneuve d'Ascq, France (LILL00FRA)

RESPONSIBLE AGENCY IGN_RGP (Institut National de l'Information Géographique et Forestière)
RESPONSIBLE FOR METADATA IGN_RGP (Institut National de l'Information Géographique et Forestière)
CURRENT STATION CONFIGURATION lill00fra_20230724.log
STATUS IN EPN former since 01-07-2007
LAST AVAILABLE DATA 28-06-2007 (decommissioned station)
LAST RECEIVER LEICA CRS1000 (01-02-2001 to 29-06-2007)
SET TO TRACK GPS
LAST ANTENNA LEIAT504/NONE (01-02-2002 to 29-06-2007)
INDIVIDUAL CALIBRATION(S) none
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 179/2007
BKGE 176/2007
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station LILL00FRA
Last ETRF2000 position valid from 033/2002 to 180/2007
expressed at epoch 001/2010
X = 4049386.392 m Vx = -0.0004 m/y
Y = 222031.333 m Vy = -0.0003 m/y
Z = 4906400.670 m Vz = -0.0006 m/y

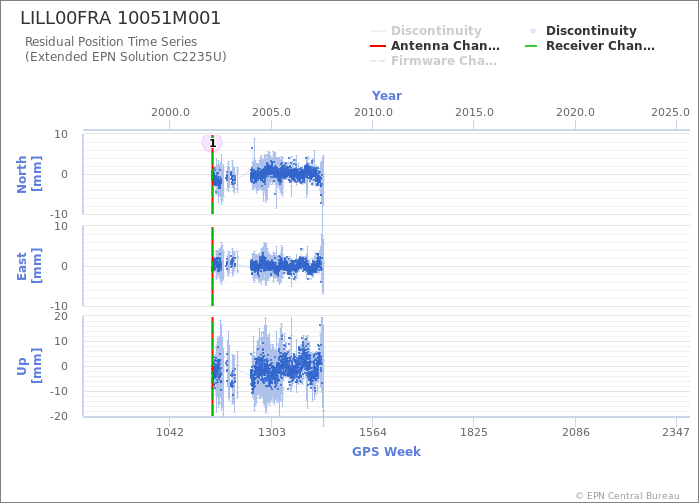

Position time series

Position time series

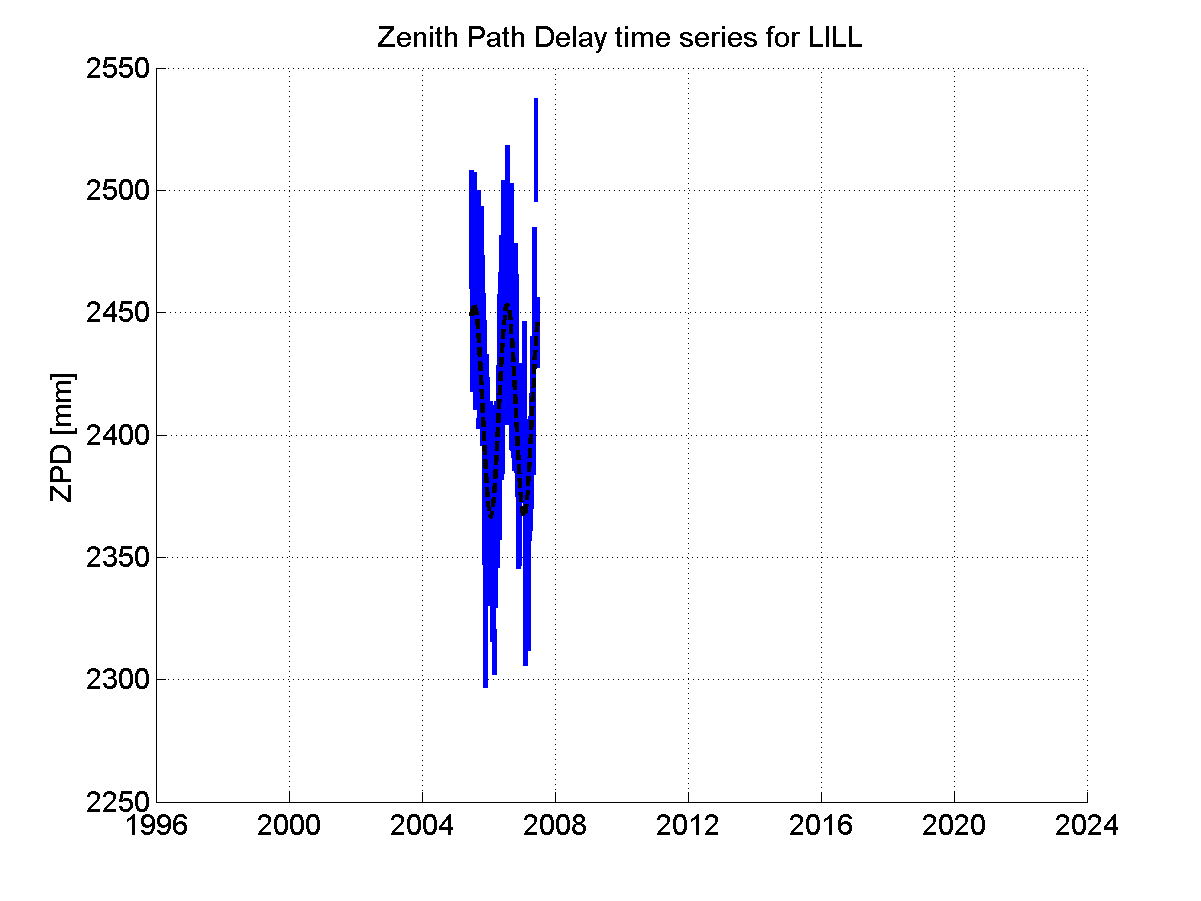

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

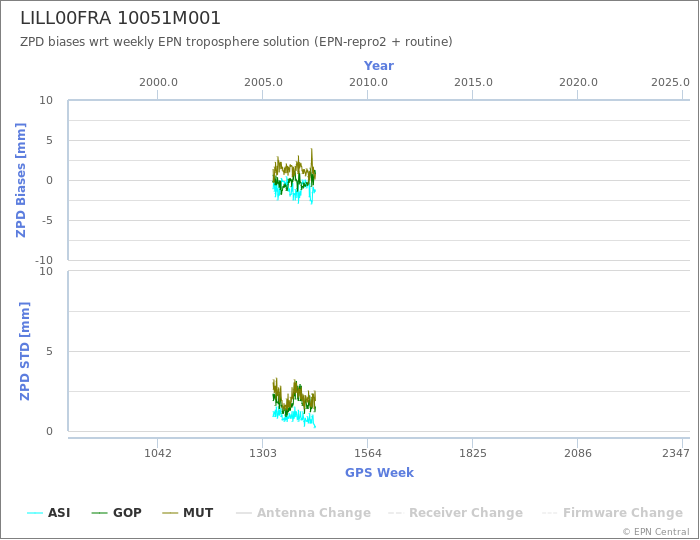

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
