EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	RIGC (Research Institute of Geodesy and Cartography)
RESPONSIBLE FOR METADATA	MAO (Main Astronomical Observatory of the National Academy of Sciences of Ukraine)
CURRENT STATION CONFIGURATION	mikl00ukr_20240312.log
STATUS IN EPN	included since 10-11-2002
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	01-07-2024
LAST RECEIVER	LEICA GR50 (11-03-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS
LAST ANTENNA	LEIAR20/LEIM (09-12-2021 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEV, MUT, SUT, WUT
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 18-12-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

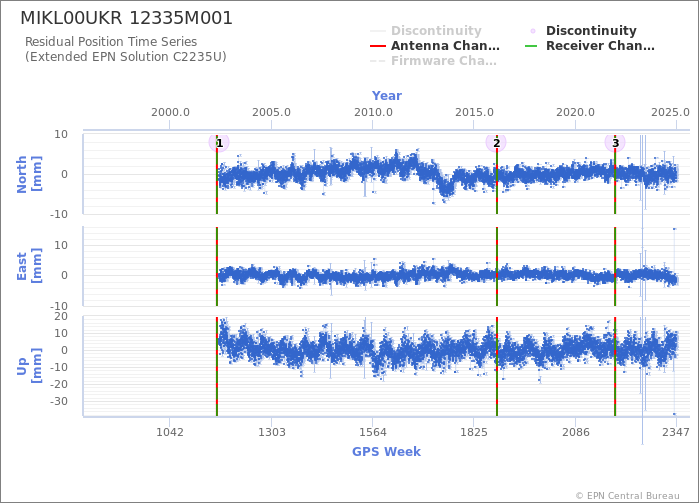

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station MIKL00UKR
Last ETRF2000 position valid from 345/2021 to 316/2022 expressed at epoch 001/2010
X = 3698554.372 m	Vx = 0.0003 m/y
Y = 2308675.801 m	Vy = -0.0004 m/y
Z = 4639769.314 m	Vz = -0.0009 m/y
