Oberpfaffenhofen, Germany (OBER00DEU)

RESPONSIBLE AGENCY GFZ (Helmholtz Centre Potsdam GFZ German Research Centre for Geosciences)
RESPONSIBLE FOR METADATA GFZ (Helmholtz Centre Potsdam GFZ German Research Centre for Geosciences)
CURRENT STATION CONFIGURATION ober00deu_20211028.log
STATUS IN EPN former since 12-08-2001
LAST AVAILABLE DATA 28-07-2001 (decommissioned station)
LAST RECEIVER AOA SNR-8000 ACT (19-08-1999 to 28-07-2001)
SET TO TRACK GPS
LAST ANTENNA AOAD/M_T/NONE (11-10-1996 to 28-07-2001)
INDIVIDUAL CALIBRATION(S) none
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 208/2001
BKGE 172/2001
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station OBER00DEU
Last ETRF2000 position valid from 302/1996 to 147/2001
expressed at epoch 001/2010
X = 4186558.688 m Vx = -0.0008 m/y
Y = 835026.955 m Vy = 0.0000 m/y
Z = 4723759.124 m Vz = -0.0006 m/y

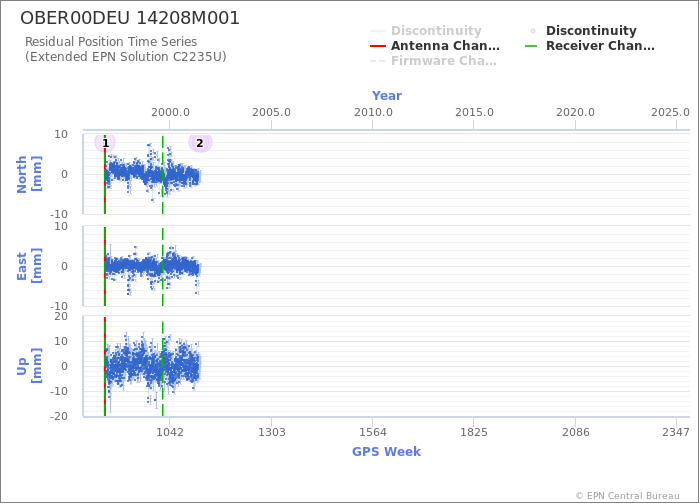

Position time series

Position time series

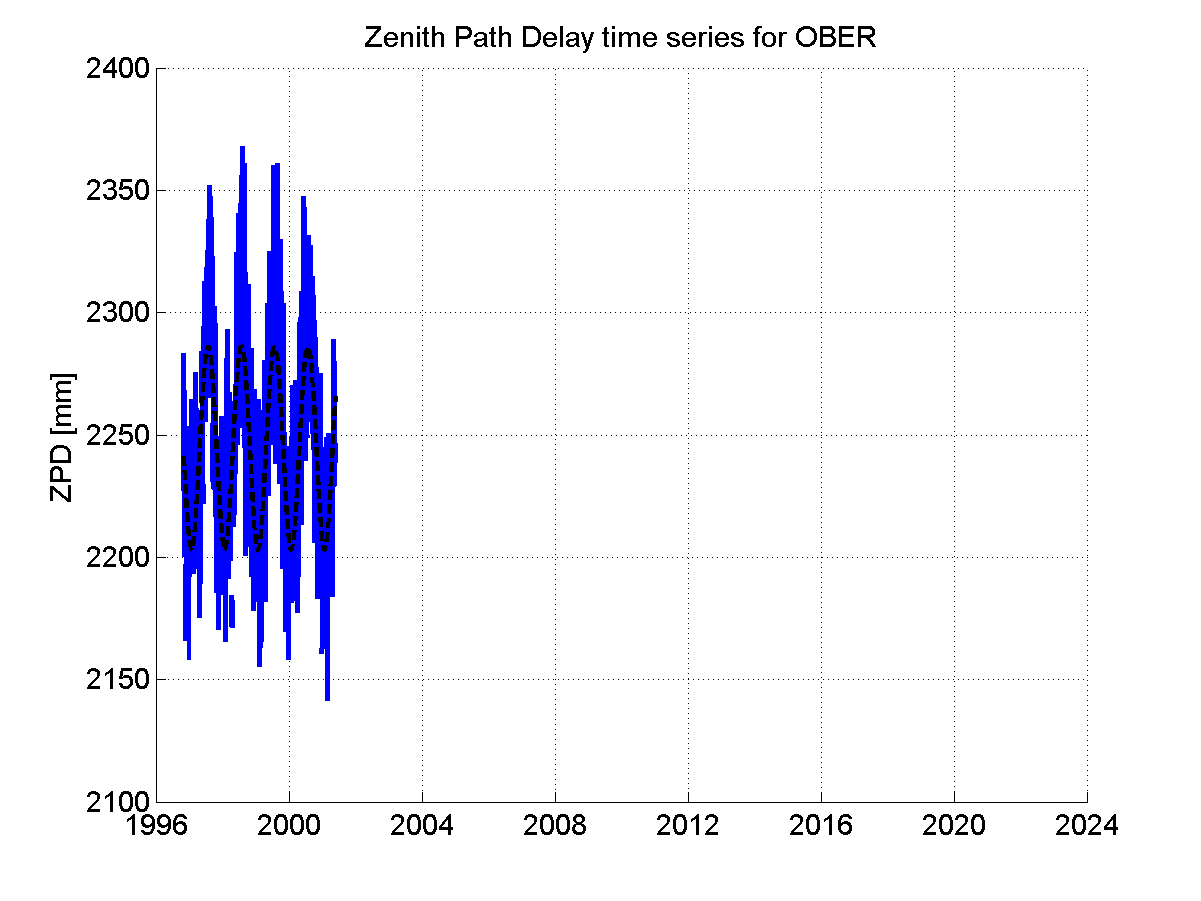

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)
Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

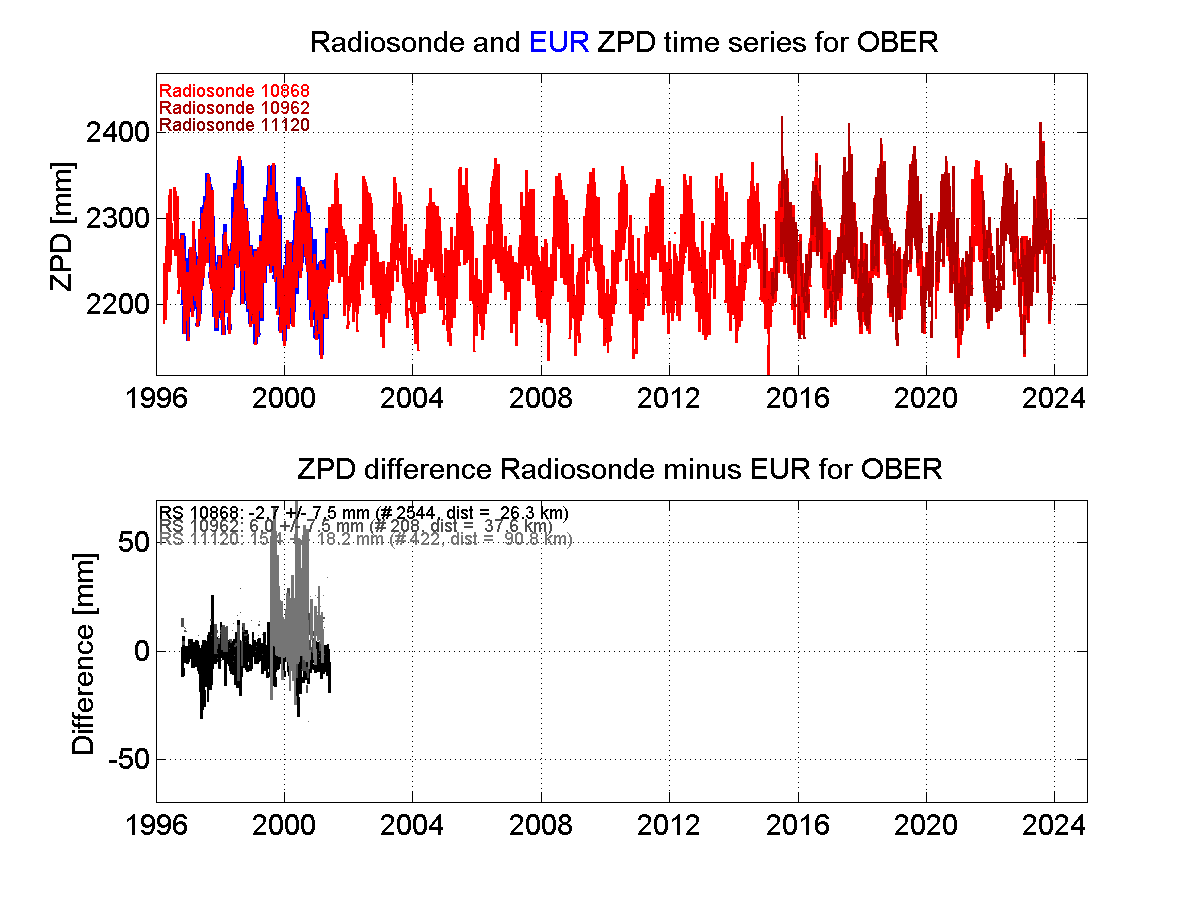

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location
