RESPONSIBLE FOR METADATA LMV (Lantmäteriet, the Swedish mapping, cadastral and land registration authority)
RESPONSIBLE AGENCY LMV (Lantmäteriet, the Swedish mapping, cadastral and land registration authority)
CURRENT STATION CONFIGURATION ske800swe_20221129.log
STATUS IN EPN included since 28-09-2014
LAST AVAILABLE DATA 04-02-2023
LAST RECEIVER TRIMBLE ALLOY (29-11-2022 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA LEIAR25.R3/LEIT (08-07-2011 to now)
INDIVIDUAL CALIBRATION(S)
  • LEIAR25.R3/LEIT (SN: 09030004) from 2011-07-08 to now :
DATA ROUTINELY ANALYSED BY BEV, MUT, NKG, WUT
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 28-04-2020.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 118/2020 N/A
BEV 001/2020 N/A
BKGE 118/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 029/2023 78.57%
BEV 035/2023 100%
BKGE 035/2023 100%
Hourly
Data centres Online Last data Availability Latency
BEV 119/2020 (A) N/A 0%
BKGE 119/2020 (A) N/A 0%
Hourly
Data centres Online Last data Availability Latency
BEV 036/2023 (F) 100% 100%
BKGE 036/2023 (F) 100% 100%

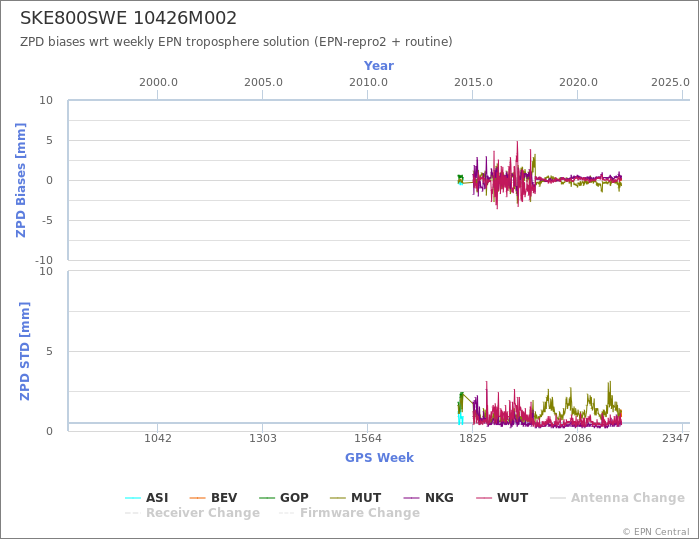

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

Real-time

SKE800SWE0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2023/02/05 00:17 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2023/02/05 00:17 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (6.15,22/JUL/2022) wrt site log (6.15)

    2023/02/05 00:17 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0001 m) wrt site log (0.003 m)

    2023/02/05 00:17 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.2341 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2023/02/04 22:13 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2023/02/04 22:13 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (6.15,22/JUL/2022) wrt site log (6.15)

    2023/02/04 22:13 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0001 m) wrt site log (0.003 m)

    2023/02/04 22:13 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.2341 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2023/02/05 03:57 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2023/02/05 03:57 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (6.15,22/JUL/2022) wrt site log (6.15)

    2023/02/05 03:57 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0001 m) wrt site log (0.003 m)

    2023/02/05 03:57 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.2341 m) exceeds threshold

information above extracted from monitor files - https://epncb.eu/ftp/station/real_time/

Location

Pictures
