Smidstrup, Vejle, Denmark (SMID00DNK)

RESPONSIBLE AGENCY SDFE (Agency for Data Supply and Infrastructure)
RESPONSIBLE FOR METADATA SDFE (Agency for Data Supply and Infrastructure)
CURRENT STATION CONFIGURATION smid00dnk_20221113.log
STATUS IN EPN former since 14-08-2022
LAST AVAILABLE DATA 10-08-2022 (decommissioned station)
LAST RECEIVER SEPT POLARX5 (08-07-2021 to 10-08-2022)
SET TO TRACK GPS+GLO+GAL+BDS+QZSS+IRNSS
LAST ANTENNA ASH701941.B/UNAV (16-07-2003 to 10-08-2022)
INDIVIDUAL CALIBRATION(S) none
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 24-02-2021.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 054/2021
BEV 054/2021
BKGE 054/2021
RINEX V3.05 - GPS+GLO+GAL+BDS+QZSS+IRNSS+SBAS
Daily
(data calendar)
Data centres Last data
EPNCB (historical)221/2022
BEV222/2022
BKGE222/2022
Hourly

No recent data available

Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station SMID00DNK
Last ETRF2000 position valid from 363/2013 to 221/2022
expressed at epoch 001/2010
X = 3557911.520 m Vx = -0.0002 m/y
Y = 599176.478 m Vy = -0.0006 m/y
Z = 5242066.253 m Vz = -0.0006 m/y

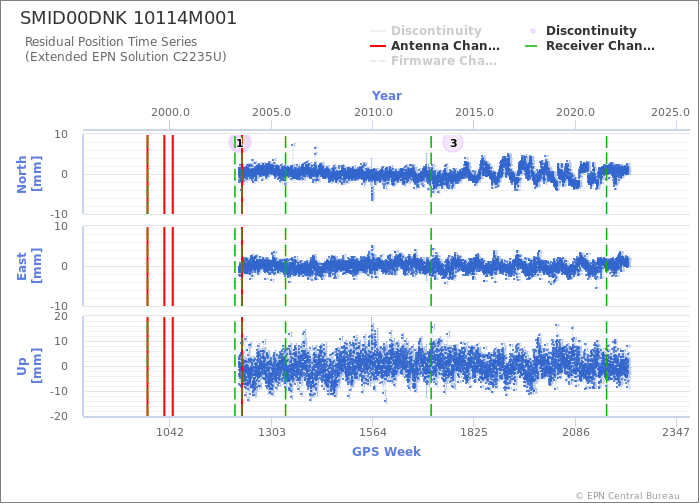

Position time series

Position time series

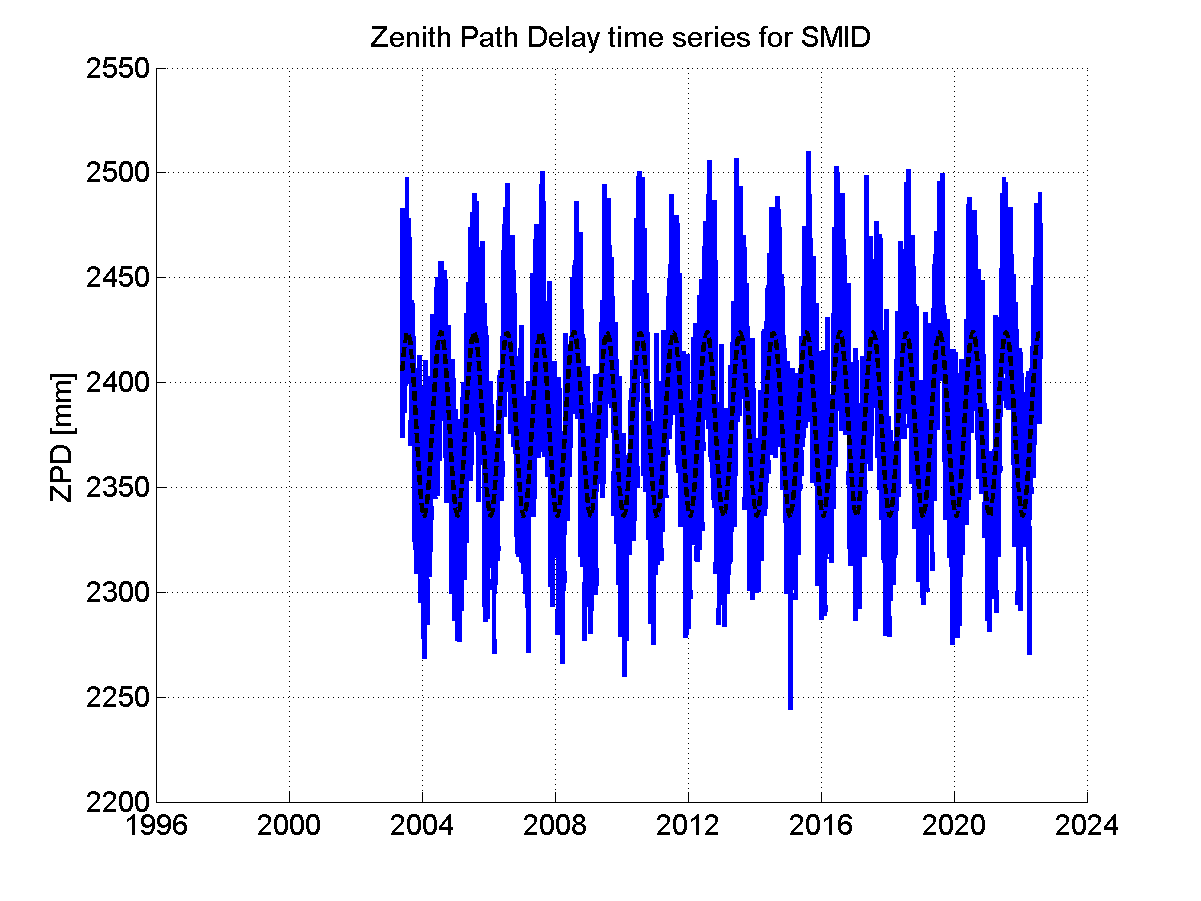

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

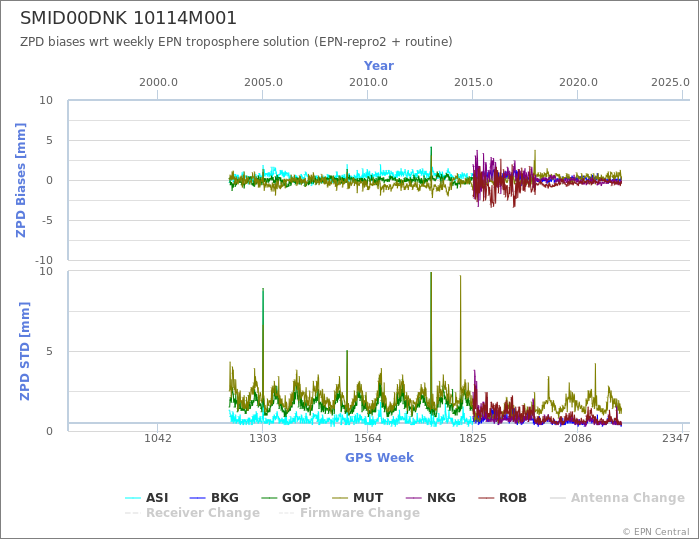

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

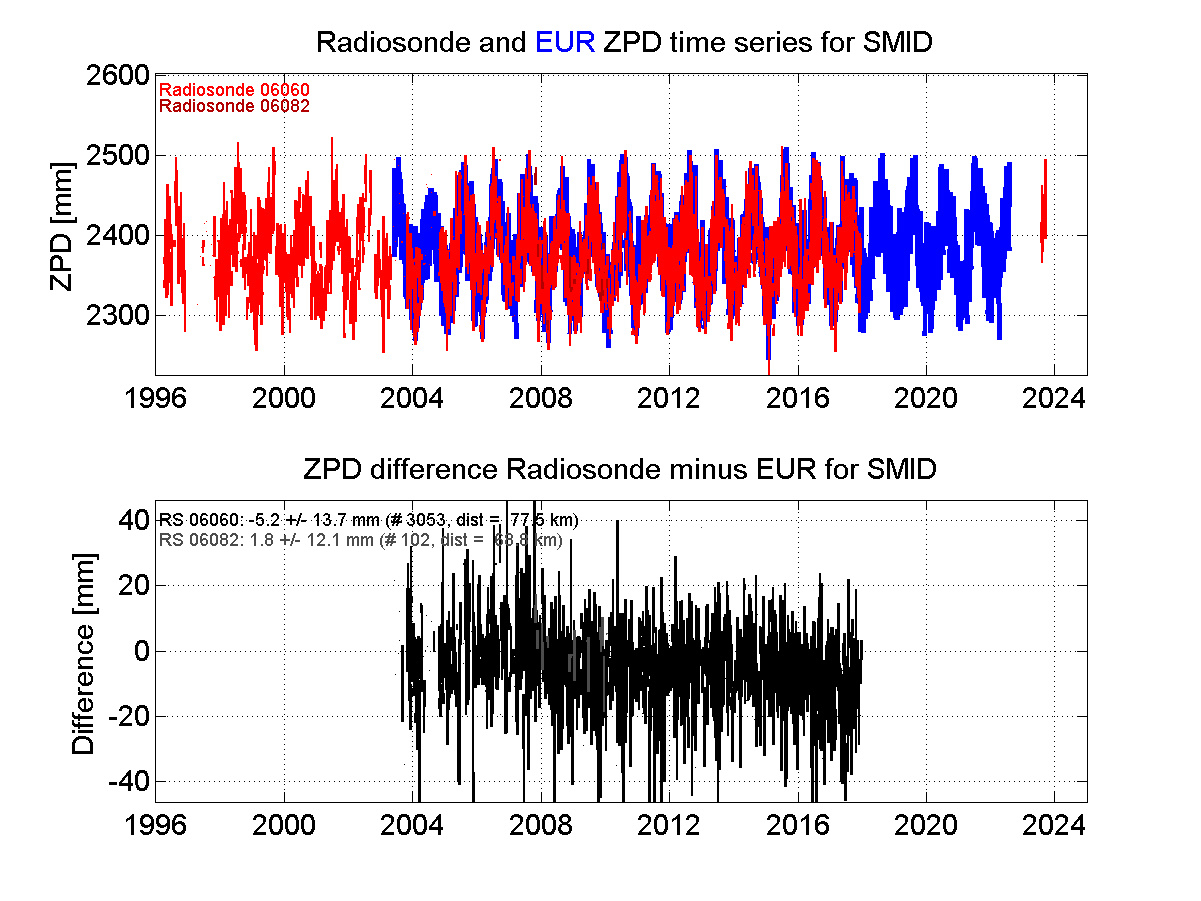

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
