EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	ELB (Estonian Land Board)
RESPONSIBLE FOR METADATA	ELB (Estonian Land Board)
CURRENT STATION CONFIGURATION	toil00est_20240528.log
STATUS IN EPN	included since 27-04-2008
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	02-07-2024
LAST RECEIVER	LEICA GR50 (23-05-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR25.R4/LEIT (05-06-2017 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	IGN, MUT, NKG, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 14-04-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

TOIL00EST0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5) : stream temporarily unavailable
2024/07/03 01:40 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL) wrt site log (GPS+GLO+GAL+BDS)
2024/07/03 01:40 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL) wrt source table (GPS+GLO)
2024/07/03 01:40 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80) wrt site log (4.80/7.900)
2024/07/03 01:40 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.15897 m)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5) : stream temporarily unavailable
2024/07/03 00:12 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL) wrt site log (GPS+GLO+GAL+BDS)
2024/07/03 00:12 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80) wrt site log (4.80/7.900)
2024/07/03 00:12 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.15897 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5) : stream temporarily unavailable
2024/07/02 04:57 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL) wrt site log (GPS+GLO+GAL+BDS)
2024/07/02 04:57 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80) wrt site log (4.80/7.900)
2024/07/02 04:57 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.15897 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

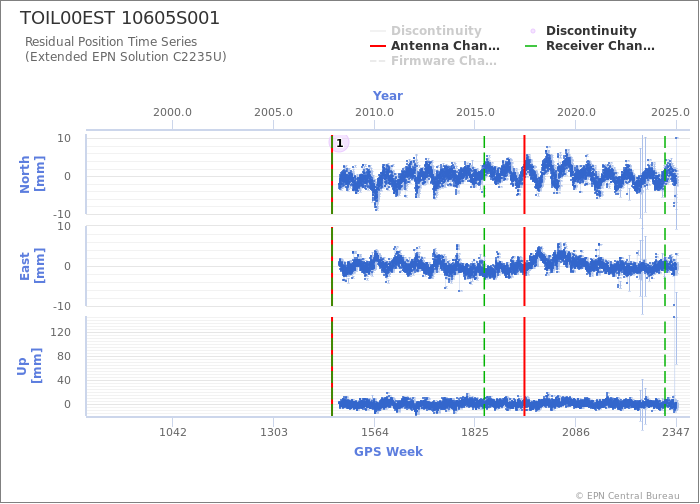

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station TOIL00EST
Last ETRF2000 position valid from 102/2008 to 316/2022 expressed at epoch 001/2010
X = 2884257.591 m	Vx = 0.0009 m/y
Y = 1503793.907 m	Vy = 0.0007 m/y
Z = 5468067.788 m	Vz = 0.0011 m/y
