EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE FOR METADATA	IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION	vale00esp_20230725.log
STATUS IN EPN	included since 11-02-2001
LAST AVAILABLE DATA	22-04-2024
LAST RECEIVER	LEICA GR10 (25-07-2023 to now)
SET TO TRACK	GPS+GLO+GAL
LAST ANTENNA	LEIAR25.R3/LEIT (16-09-2010 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R3/LEIT (SN: 10190012) from 2010-09-16 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2010-08-11)
DATA ROUTINELY ANALYSED BY	IGE, MUT, RGA, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 02-12-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

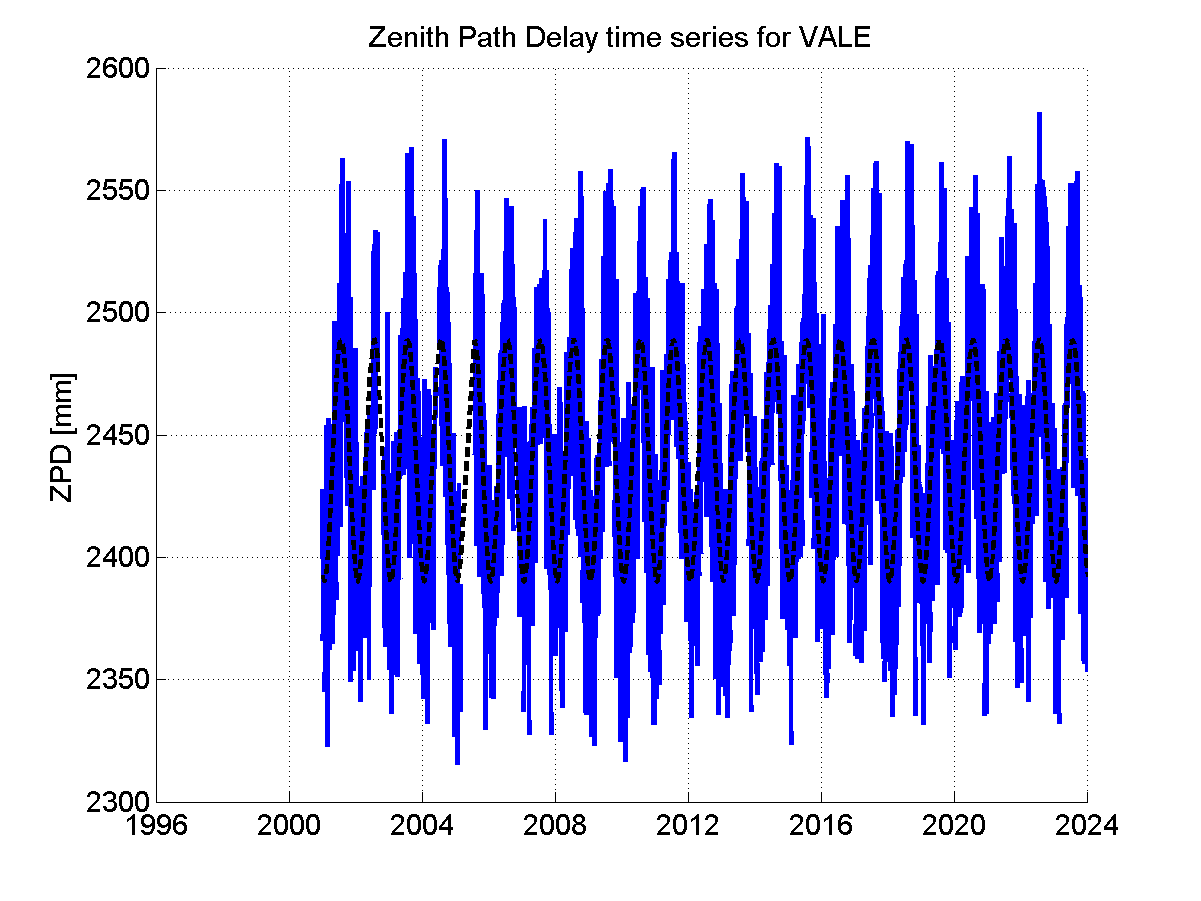

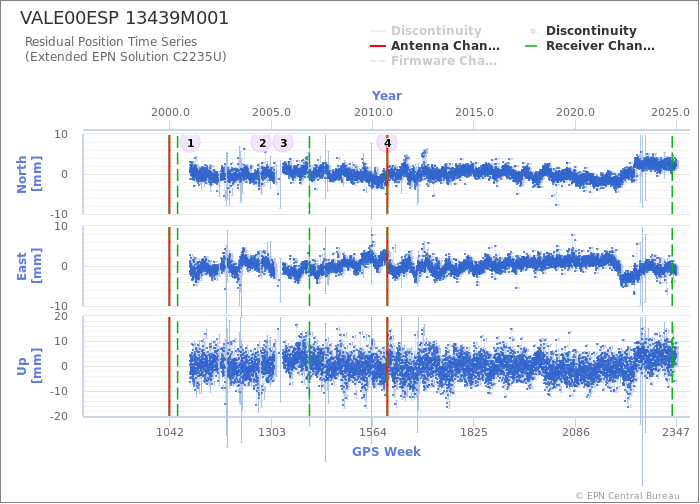

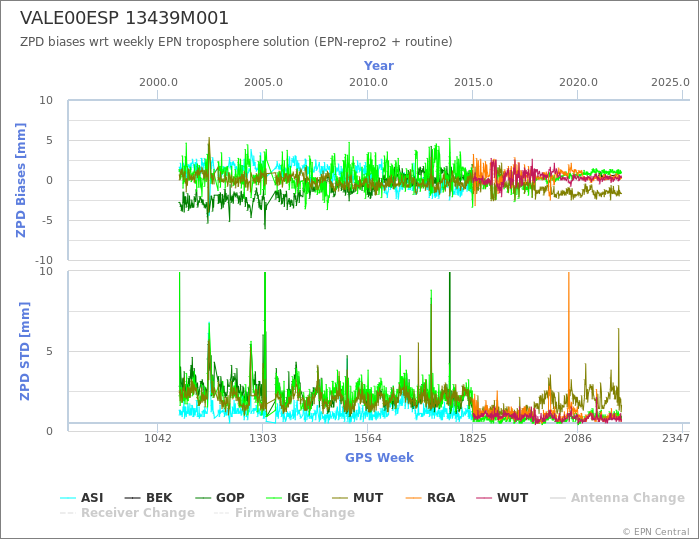

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station VALE00ESP
Last ETRF2000 position valid from 262/2010 to 316/2022 expressed at epoch 001/2010
X = 4929534.031 m	Vx = -0.0011 m/y
Y = -29050.687 m	Vy = -0.0010 m/y
Z = 4033709.905 m	Vz = -0.0011 m/y
