EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE FOR METADATA	IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION	yebe00esp_20240318.log
STATUS IN EPN	included since 22-10-2000
LAST AVAILABLE DATA	16-04-2024
LAST RECEIVER	LEICA GR50 (18-03-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR20/LEIM (18-11-2021 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR20/LEIM (SN: 23349016) from 2021-03-24 to 2021-11-18, from 2021-11-18 to now : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, R04, R06, E01, E05, E06, E07, E08, C01, C02, C05, C06, C07, C08, J01, J02, J05, J06, S01, S05, I05, date: 2021-02-05)
DATA ROUTINELY ANALYSED BY	BKG, GFZ, IGE, IGN, NKG
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 02-12-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

YEBE00ESP0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/04/17 03:37 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)
2024/04/17 03:37 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/04/17 03:37 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0600 m) wrt site log (0.18488 m)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/04/18 01:19 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/04/18 01:19 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0600 m) wrt site log (0.18488 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/04/17 06:53 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)
2024/04/17 06:53 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0600 m) wrt site log (0.18488 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

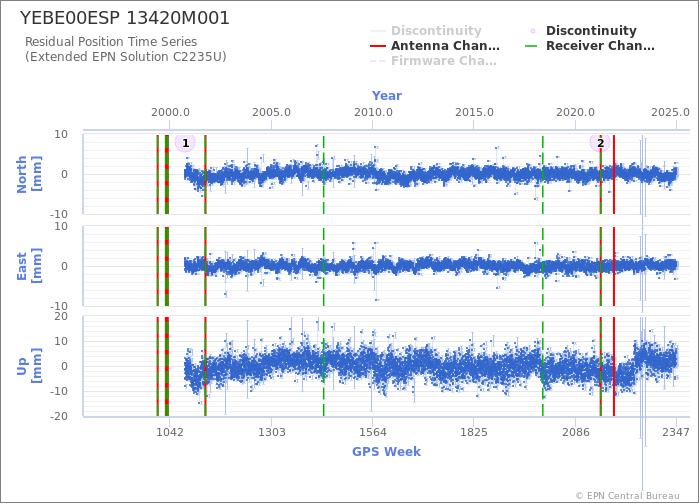

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station YEBE00ESP
Last ETRF2000 position valid from 084/2021 to 316/2022 expressed at epoch 001/2010
X = 4848724.898 m	Vx = -0.0003 m/y
Y = -261632.485 m	Vy = -0.0007 m/y
Z = 4123093.898 m	Vz = -0.0006 m/y
