Zaporizhzhia, Ukraine (ZPRS00UKR)

RESPONSIBLE AGENCY CSIRP&NFC (Centre of Special Information Receiving and Processing and Navigation Field Control)
RESPONSIBLE FOR METADATA MAO (Main Astronomical Observatory of the National Academy of Sciences of Ukraine)
CURRENT STATION CONFIGURATION zprs00ukr_20240131.log
STATUS IN EPN former since 13-11-2022
LAST AVAILABLE DATA 08-11-2022 (decommissioned station)
LAST RECEIVER NOV OEMV3 (19-03-2018 to 08-11-2022)
SET TO TRACK GPS+GLO
LAST ANTENNA NOV702GG/NONE (20-05-2011 to 08-11-2022)
INDIVIDUAL CALIBRATION(S) none
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 311/2022
BEV 312/2022
BKGE 311/2022
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station ZPRS00UKR
Last ETRF2000 position valid from 119/2018 to 311/2022
expressed at epoch 001/2010
X = 3507143.675 m Vx = 0.0006 m/y
Y = 2470487.508 m Vy = 0.0012 m/y
Z = 4704181.351 m Vz = -0.0023 m/y

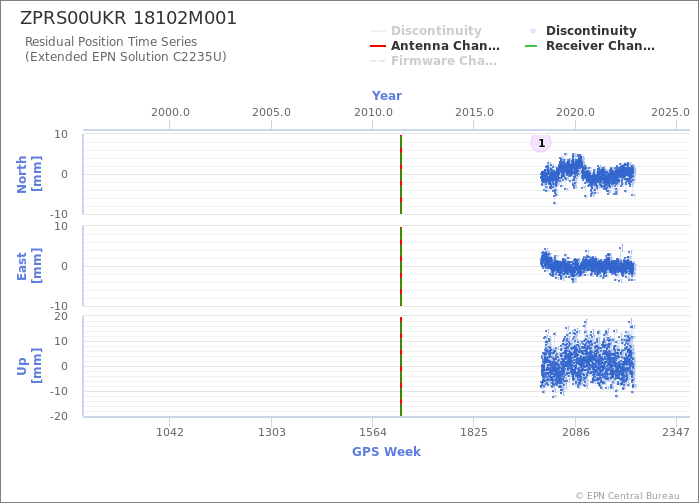

Position time series

Position time series

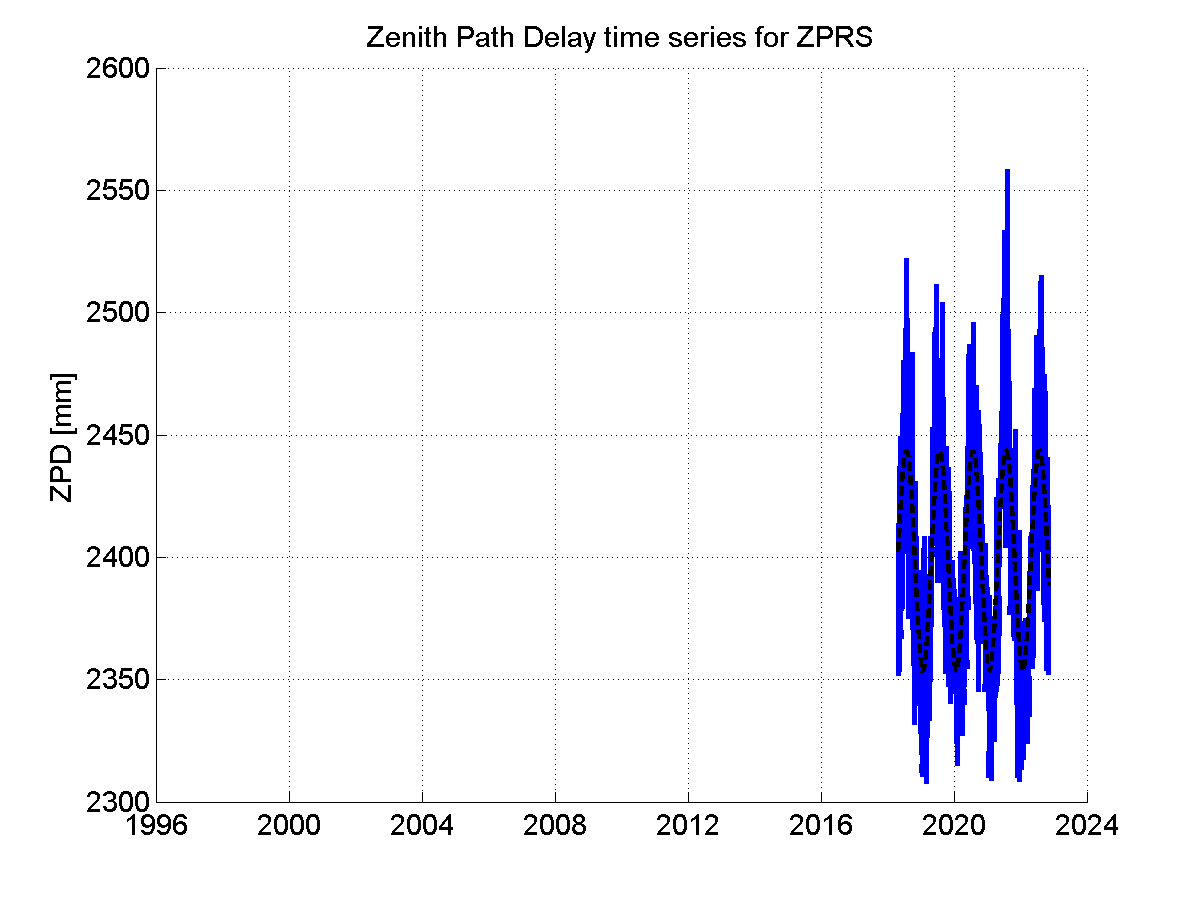

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

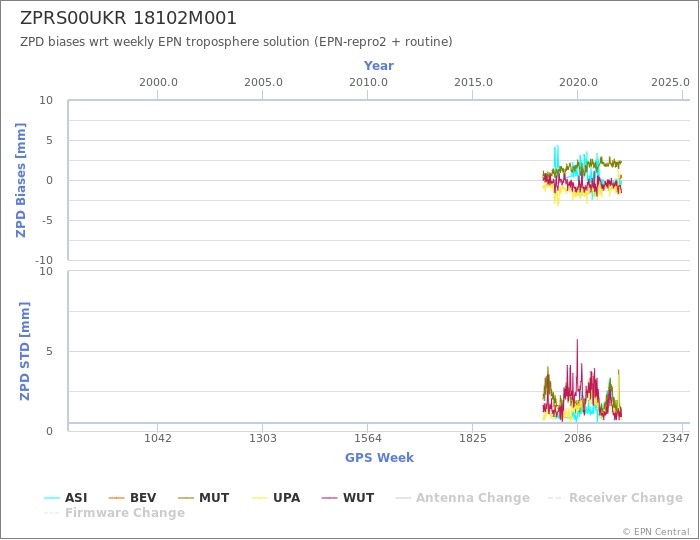

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
