Due to the occurance of coordinate jumps, the station coordinates given in the tables below are valid for a specific period in time (indicated in the first column). The coordinate jumps are caused by station-specific equipment changes (see station log and/or EPN_discontinuities.snx).

To obtain the station positions at an epoch t different from t0, apply the station velocities: X(t) = X(t0) + (t-t0)*VX; Y(t) = Y(t0) + (t-t0)*VY; Z(t) = Z(t0) + (t-t0)*VZ

1. POSITIONS/VELOCITIES PUBLISHED BY EUREF

EUREF has classified BAUT00DEU (Bautzen, DEU) as a class A station which means that it can used as fiducial station for EUREF densifications.

LATEST RELEASE

C2220 (October 13, 2022)

EPN_ETRF2000_C2220.SNX.Z

ETRF2000 epoch t0 Position (m) Velocity (m/y)
X Y Z VX VY VZ
125/2019 - 211/2022 001/2010 3877546.081 ± 0.001 1004370.440 ± 0.000 4947147.723 ± 0.001 -0.0000 ± 0.0001 -0.0006 ± 0.0000 -0.0009 ± 0.0001

EPN_ETRF2014_C2220.SNX.Z

ETRF2014 epoch t0 Position (m) Velocity (m/y)
X Y Z VX VY VZ
125/2019 - 211/2022 001/2010 3877546.037 ± 0.001 1004370.393 ± 0.000 4947147.771 ± 0.001 0.0003 ± 0.0001 -0.0005 ± 0.0000 -0.0003 ± 0.0001

EPN_IGb14_C2220.SNX.Z

IGb14 epoch t0 Position (m) Velocity (m/y)
X Y Z VX VY VZ
125/2019 - 211/2022 001/2010 3877545.690 ± 0.001 1004370.740 ± 0.000 4947147.972 ± 0.001 -0.0162 ± 0.0001 0.0160 ± 0.0000 0.0093 ± 0.0001
plus_minus
PREVIOUS RELEASES

2. POSITIONS/VELOCITIES PUBLISHED BY THE IGS

IGS has not yet released coordinates for BAUT00DEU (Bautzen, DEU).

3. POSITIONS/VELOCITIES PUBLISHED BY THE IERS

IERS has not yet released coordinates for BAUT00DEU (Bautzen, DEU).

4. POSITION PUBLISHED WEEKLY IN THE EPN COMBINED SOLUTION

IGb14 epoch t0 Position (m) Velocity (m/y)
X Y Z VX VY VZ
324/2022 - 330/2022 327/2022 3877545.484 ± 0.000 1004370.948 ± 0.000 4947148.094 ± 0.000 NANANA

5. POSITIONS PUBLISHED BY THE COUNTRY

The official ETRS89 coordinates used in DEU are maintained by BKG. This agency is fully responsible for the information kindly provided to the EPN:

Valid (from - to) epoch t0 Position (m) Velocity (m/y)
X Y Z VX VY VZ
307/2019- now 001/1989 3877546.098 1004370.441 4947147.720 NANANA

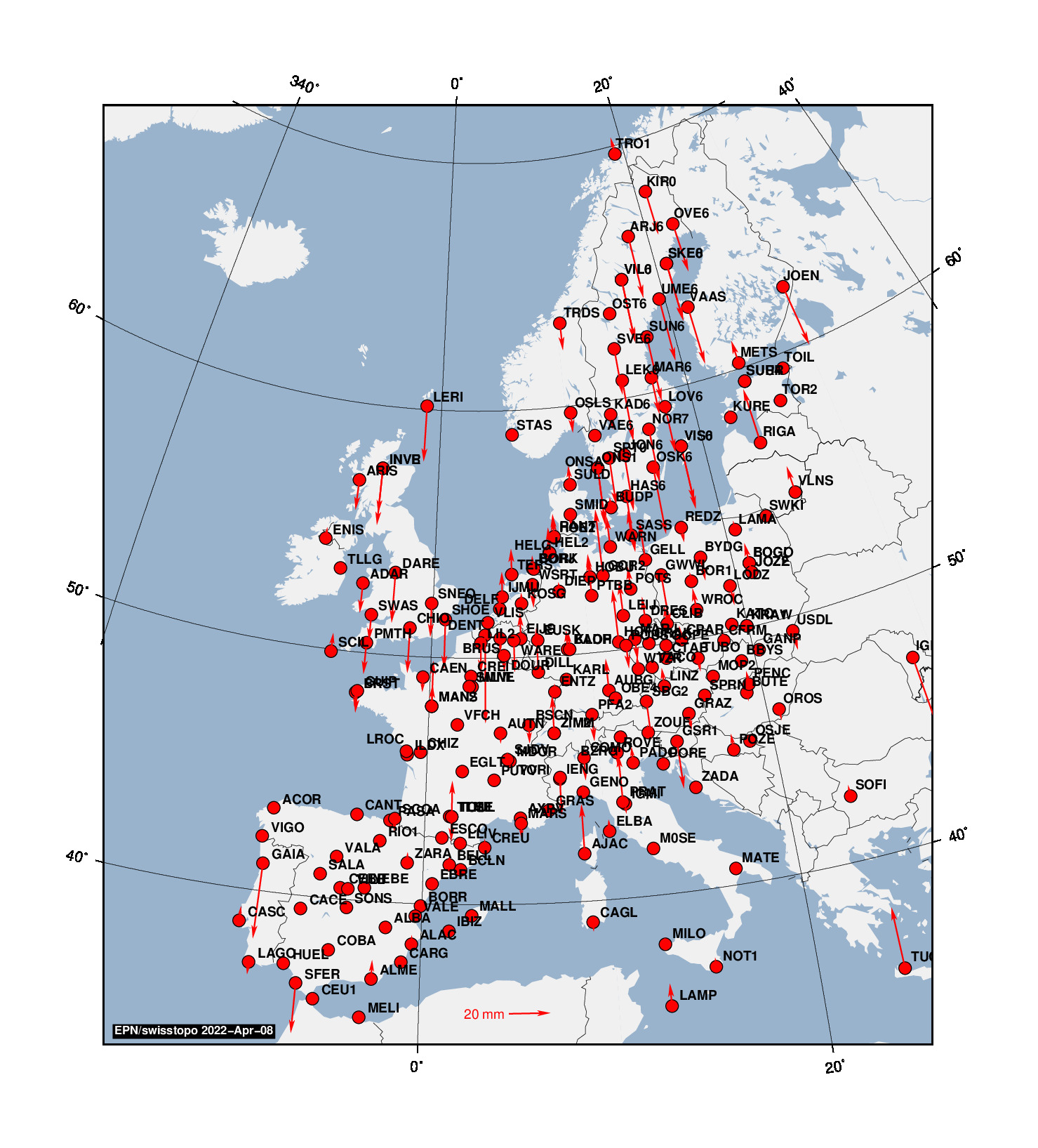

Following a recent initiative of the EUREF Technical Working Group (Monitoring of official national ETRF coordinates on EPN web), the differences between the national coordinates and the latest cumulative EPN solutions (section 1) are regularly monitored. They are given in two maps: [horizontal differences] and [vertical differences].
