EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE FOR METADATA	IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION	alme00esp_20230913.log
STATUS IN EPN	included since 21-01-2001
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-ALME00ESP
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	TRIMBLE NETR9 (13-09-2023 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	TRM29659.00/NONE (05-02-2007 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BKG, COD, IGE, UPA
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 02-12-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

ALME00ESP0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/20 10:16 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS)
2024/11/20 10:16 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.61,27/JUN/2023) wrt site log (5.61)
2024/11/20 10:16 RTCM 3.2/1006: Incorrect Antenna Height in stream (3.0439 m) wrt site log (3.0440 m)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/21 06:56 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.61,27/JUN/2023) wrt site log (5.61)
2024/11/21 06:56 RTCM 3.2/1006: Incorrect Antenna Height in stream (3.0439 m) wrt site log (3.0440 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/21 08:14 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.61,27/JUN/2023) wrt site log (5.61)
2024/11/21 08:14 RTCM 3.2/1006: Incorrect Antenna Height in stream (3.0439 m) wrt site log (3.0440 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

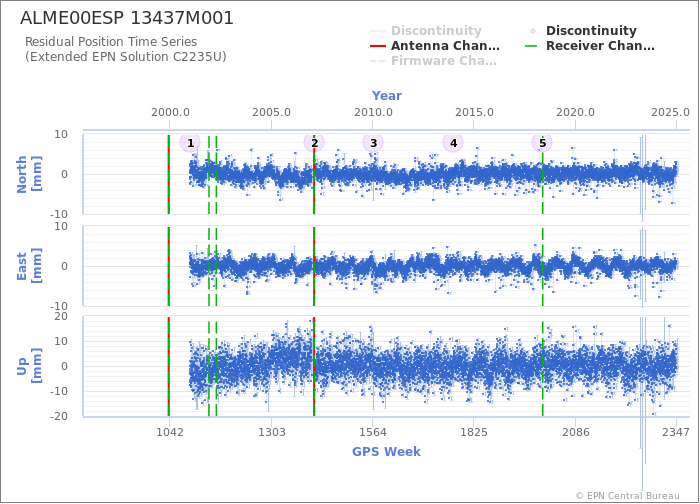

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station ALME00ESP
Last ETRF2000 position valid from 136/2018 to 316/2022 expressed at epoch 001/2010
X = 5105220.279 m	Vx = -0.0001 m/y
Y = -219278.821 m	Vy = -0.0018 m/y
Z = 3804386.868 m	Vz = -0.0006 m/y
