EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	IGN_RGP (Institut National de l'Information Géographique et Forestière)
RESPONSIBLE FOR METADATA	IGN_RGP (Institut National de l'Information Géographique et Forestière)
CURRENT STATION CONFIGURATION	axpv00fra_20241014.log
STATUS IN EPN	included since 28-03-2010
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	LEICA GR50 (16-07-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	TRM57971.00/NONE (20-10-2011 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BKG, IGE, IGN, LPT, ROB
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 28-03-2022.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

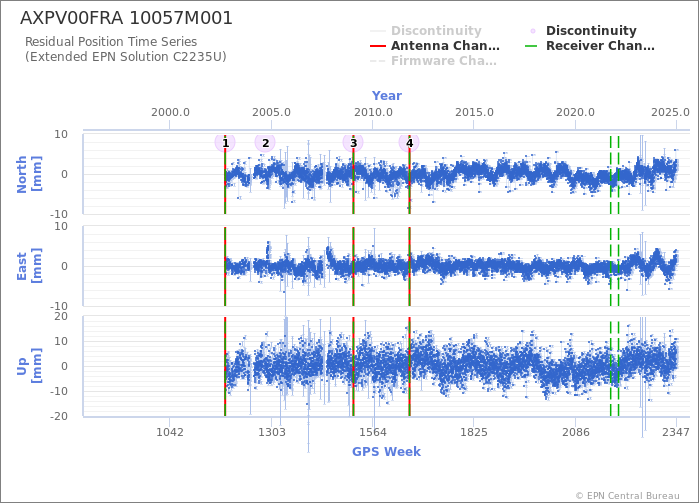

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station AXPV00FRA
Last ETRF2000 position valid from 296/2011 to 316/2022 expressed at epoch 001/2010
X = 4614667.157 m	Vx = -0.0007 m/y
Y = 430786.234 m	Vy = -0.0003 m/y
Z = 4367411.307 m	Vz = -0.0007 m/y
