EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA	BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION	badh00deu_20250224.log
STATUS IN EPN	included since 07-05-2006
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	30-03-2025
LAST RECEIVER	LEICA GR50 (19-02-2025 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	LEIAR10/NONE (18-09-2012 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR10/NONE (SN: 12356022) from 2012-09-18 to now : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, E01, E05, E06, E07, E08, date: 2012-03-08) TRM41249.00/NONE (SN: 12379133) from 2005-01-18 to 2012-09-18 : GEO - ROBOT (freq: G01, G02, date: 2004-08-04)
DATA ROUTINELY ANALYSED BY	BKG, IGE, IGN, LPT, ROB
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 19-10-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

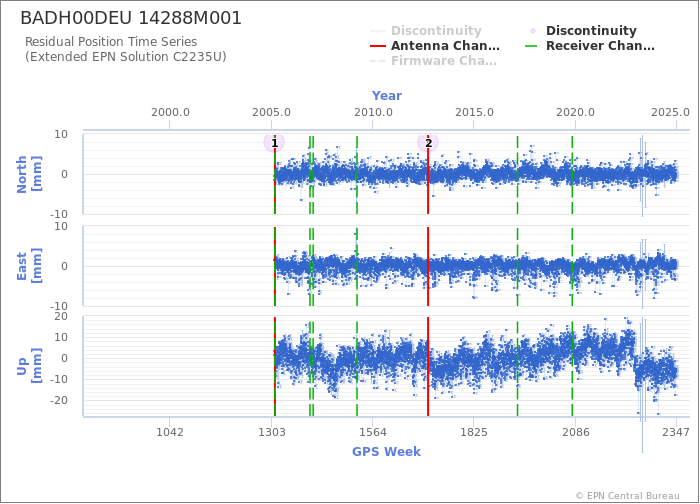

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station BADH00DEU
Last ETRF2000 position valid from 267/2012 to 316/2022 expressed at epoch 001/2010
X = 4042498.102 m	Vx = -0.0001 m/y
Y = 612081.188 m	Vy = -0.0003 m/y
Z = 4879250.853 m	Vz = -0.0003 m/y
