EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	GKU (Geodetic and Cartographic Institute Bratislava)
RESPONSIBLE FOR METADATA	GKU (Geodetic and Cartographic Institute Bratislava)
CURRENT STATION CONFIGURATION	bbys00svk_20240521.log
STATUS IN EPN	included since 04-02-2007
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-BBYS00SVK
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	TRIMBLE NETR9 (21-05-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS+SBAS
LAST ANTENNA	TRM59800.00/NONE (12-11-2018 to now)
INDIVIDUAL CALIBRATION(S)	TRM115000.00/NONE (SN: 6123121898) from 2018-04-24 to 2018-11-12 : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2018-03-02) TRM59800.00/NONE (SN: 5222354502) from 2012-09-14 to 2015-05-20, from 2015-07-31 to 2018-04-24, from 2018-11-12 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2015-07-02)
DATA ROUTINELY ANALYSED BY	BEV, RGA, SGO, SUT, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 01-04-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

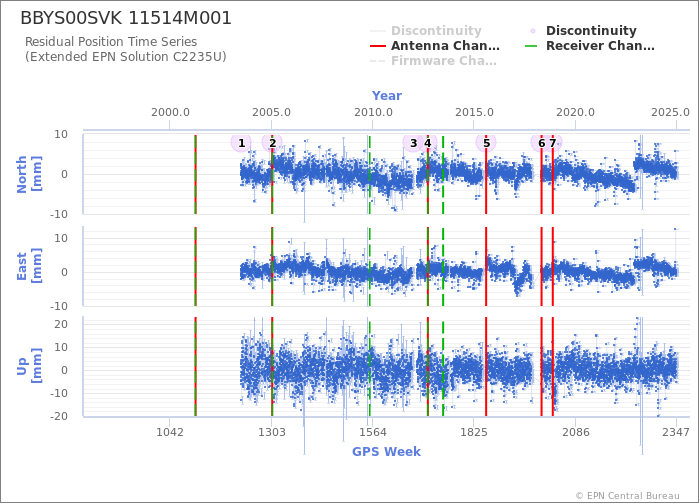

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station BBYS00SVK
Last ETRF2000 position valid from 317/2018 to 316/2022 expressed at epoch 001/2010
X = 3980359.141 m	Vx = -0.0006 m/y
Y = 1382291.872 m	Vy = -0.0004 m/y
Z = 4772771.757 m	Vz = -0.0008 m/y
