EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	ICV (Institut Cartogràfic Valencià)
RESPONSIBLE FOR METADATA	ICV (Institut Cartogràfic Valencià)
CURRENT STATION CONFIGURATION	borr00esp_20210312.log
STATUS IN EPN	included since 21-10-2007
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	TRIMBLE NETR9 (09-03-2021 to now)
SET TO TRACK	GPS+GLO+GAL
LAST ANTENNA	TRM59900.00/NONE (21-06-2016 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEK, IGE, IGN, UPA
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 01-04-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

BORR00ESP0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5)
2024/11/20 10:38 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.37,21/SEP/2018) wrt site log (5.37)
2024/11/20 10:38 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.1299 m) wrt site log (0.1300 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL (MSM5)
2024/11/21 08:39 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.37,21/SEP/2018) wrt site log (5.37)
2024/11/21 08:39 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.1299 m) wrt site log (0.1300 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

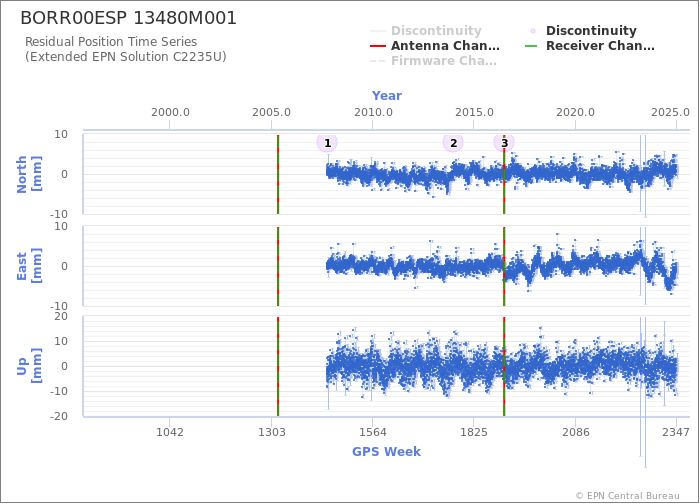

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station BORR00ESP
Last ETRF2000 position valid from 178/2016 to 316/2022 expressed at epoch 001/2010
X = 4899519.296 m	Vx = -0.0006 m/y
Y = -7115.832 m	Vy = 0.0001 m/y
Z = 4069961.400 m	Vz = -0.0009 m/y
