EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	GUGiK (Head Office of Geodesy and Cartography)
RESPONSIBLE FOR METADATA	ASGEUPOS (ASG-EUPOS Management Center Head Office of Geodesy and Cartography)
CURRENT STATION CONFIGURATION	bpdl00pol_20240213.log
STATUS IN EPN	included since 08-06-2008
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-BPDL00POL
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	TRIMBLE ALLOY (13-02-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	TRM159900.00/SCIS (05-06-2019 to now)
INDIVIDUAL CALIBRATION(S)	TRM159900.00/SCIS (SN: 5744338072) from 2019-06-05 to now : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, R04, R06, S01, S05, E01, E05, E07, E08, E06, J01, J02, J05, J06, C02, C01, C05, C07, C08, C06, I05, date: 2019-05-15) TRM55971.00/TZGD (SN: 30436730) from 2007-12-04 to 2019-06-05 : BERL - ROBOT (freq: G01, G02, R01, R02, date: 2007-11-09)
DATA ROUTINELY ANALYSED BY	BEV, BKG, MUT, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 13-12-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

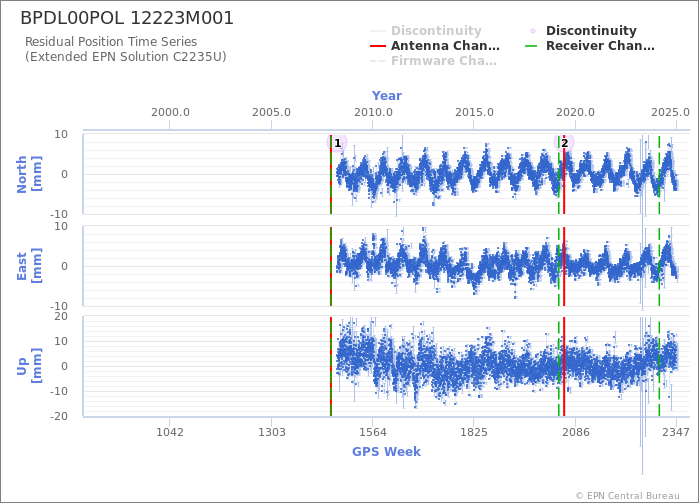

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station BPDL00POL
Last ETRF2000 position valid from 157/2019 to 316/2022 expressed at epoch 001/2010
X = 3615990.153 m	Vx = -0.0005 m/y
Y = 1544390.854 m	Vy = -0.0006 m/y
Z = 5005373.511 m	Vz = -0.0009 m/y
