EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA	BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION	brmg00deu_20240903.log
STATUS IN EPN	included since 24-05-2020
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	JAVAD TRE_3S DELTA (03-09-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	LEIAR25.R4/LEIT (08-04-2020 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/LEIT (SN: 726856) from 2020-04-08 to now : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, S01, S05, E01, E05, E07, E08, E06, J01, J02, J05, J06, C02, C07, C06, I05, date: 2018-01-31) BERL - ROBOT (freq: G01, G02, G05, R01, R02, E06, E07, E08, C02, C06, date: 2019-12-12) - careful: not used within EPN analysis GEO - ROBOT (freq: G01, G02, R01, R02, date: 2017-10-24) - careful: not used within EPN analysis
DATA ROUTINELY ANALYSED BY	BEK, BKG, GFZ, ROB
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 03-05-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

BRMG00DEU0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/20 10:44 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/20 10:44 RTCM 3.2/1033: Incorrect Receiver SN in stream (S34A9C790A834550FBD0) wrt site log (04934)
2024/11/20 10:44 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 3.1359 m) exceeds threshold

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/21 07:24 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/21 07:24 RTCM 3.2/1033: Incorrect Receiver SN in stream (S34A9C790A834550FBD0) wrt site log (04934)
2024/11/21 07:24 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 3.1359 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/20 08:45 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/20 08:45 RTCM 3.2/1033: Incorrect Receiver SN in stream (S34A9C790A834550FBD0) wrt site log (04934)
2024/11/20 08:45 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 3.1359 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

Position, Velocity & Time Series

EUREF is providing only positions for the station BRMG00DEU
Last ETRF2000 position valid from 145/2020 to 316/2022 expressed at epoch 212/2021
X = 4245557.541 m
Y = 568957.607 m
Z = 4710199.662 m

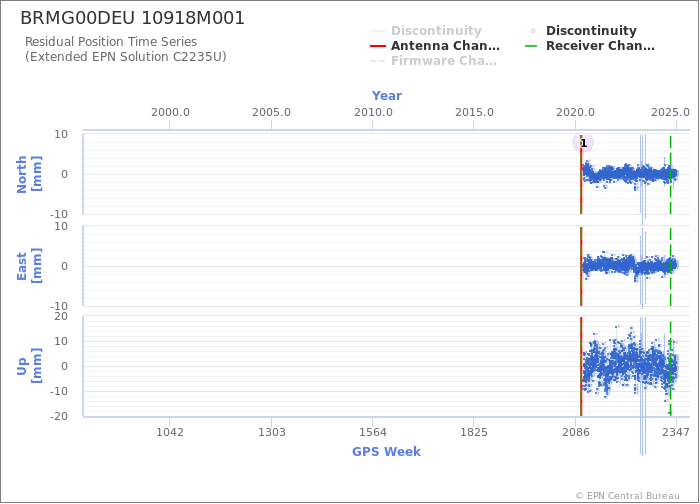

Position time series

Tropospheric Delays

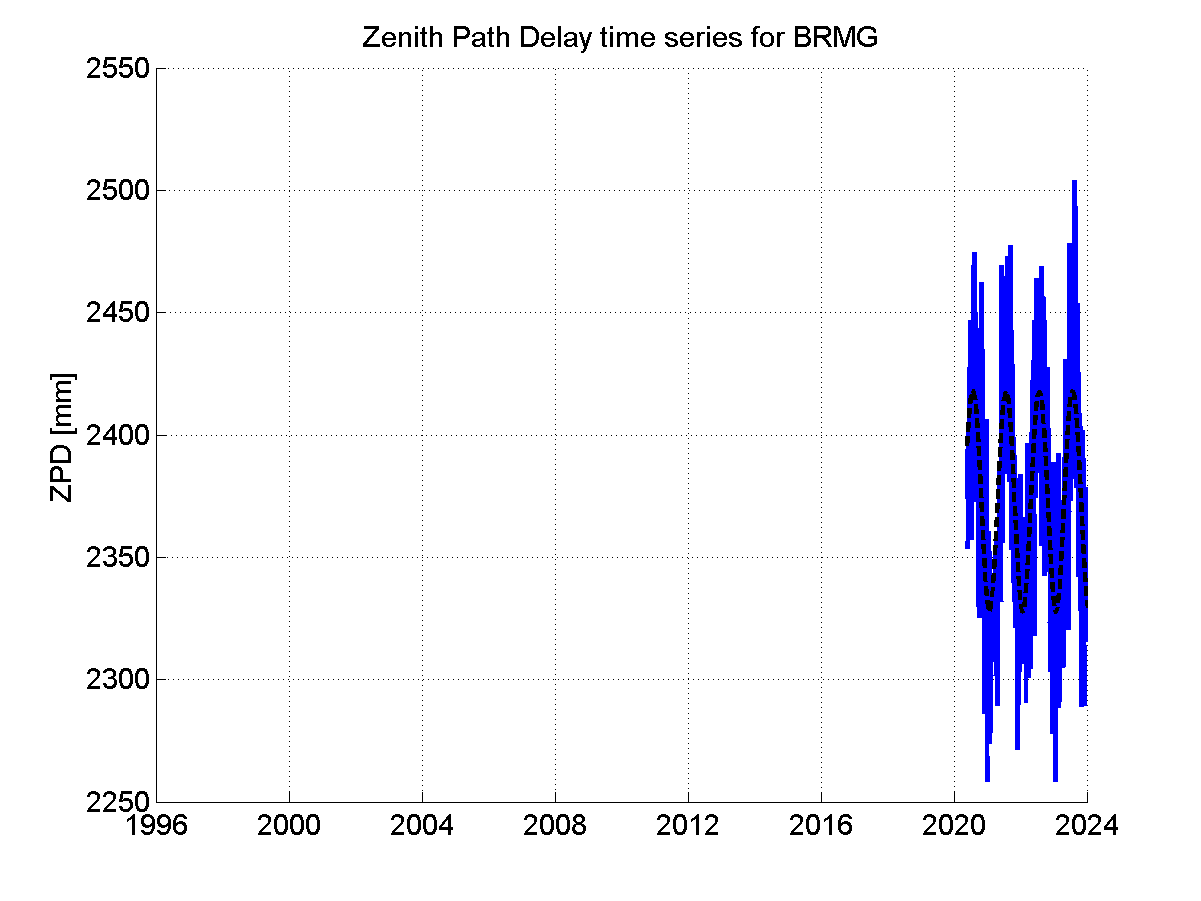

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

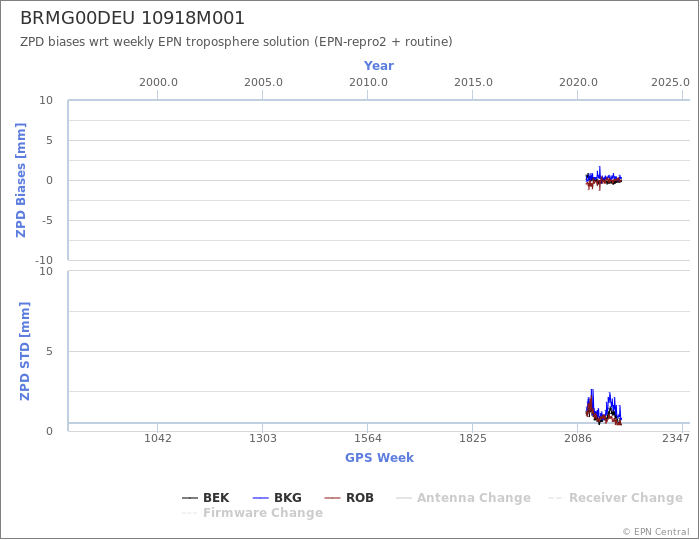

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Bremgarten, Germany (BRMG00DEU)
