Bolzano Bozen, Italy (BZR200ITA)

RESPONSIBLE AGENCY STPOS (Autonome Provinz Bozen - Sudtirol)
RESPONSIBLE FOR METADATA STPOS (Autonome Provinz Bozen - Sudtirol)
CURRENT STATION CONFIGURATION bzr200ita_20211119.log
STATUS IN EPN included since 19-07-2020
LAST AVAILABLE DATA 18-04-2024
LAST RECEIVER LEICA GR30 (16-06-2021 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA LEIAR25.R4/LEIT (27-10-2017 to now)
INDIVIDUAL CALIBRATION(S)
  • LEIAR25.R4/LEIT (SN: 726507) from 2017-10-27 to now :
DATA ROUTINELY ANALYSED BY ASI, BEK, LPT, RGA, SUT, UPA
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 23-01-2020.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 022/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 103/2024 78.57%
BEV 109/2024 89.29%
BKGI 109/2024 92.86%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 110/2024 (K) 98.81% 72.02%
BKGI 110/2024 (K) 100% 73.21%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

Real-time

BZR200ITA0 :

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/04/18 16:06 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.50) wrt site log (4.50/7.710)

    2024/04/18 16:06 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.15897 m)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/04/18 21:09 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.50) wrt site log (4.50/7.710)

    2024/04/18 21:09 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0000 m) wrt site log (0.15897 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing only positions for the station BZR200ITA
Last ETRF2000 position valid from 201/2020 to 316/2022
expressed at epoch 212/2021
X = 4312893.062 m
Y = 864794.529 m
Z = 4603598.271 m

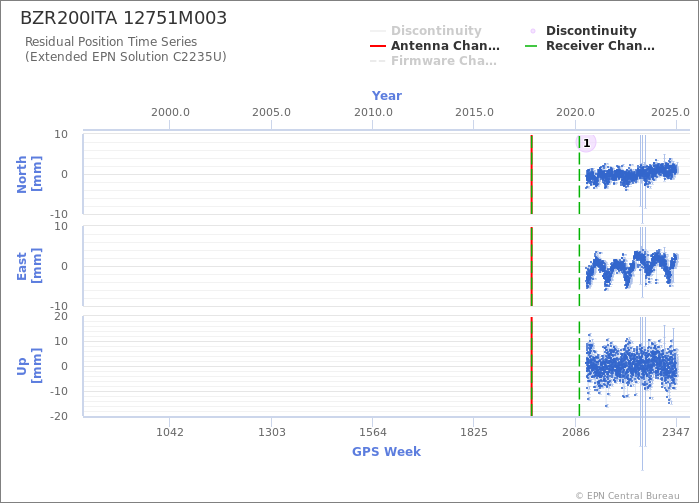

Position time series

Position time series

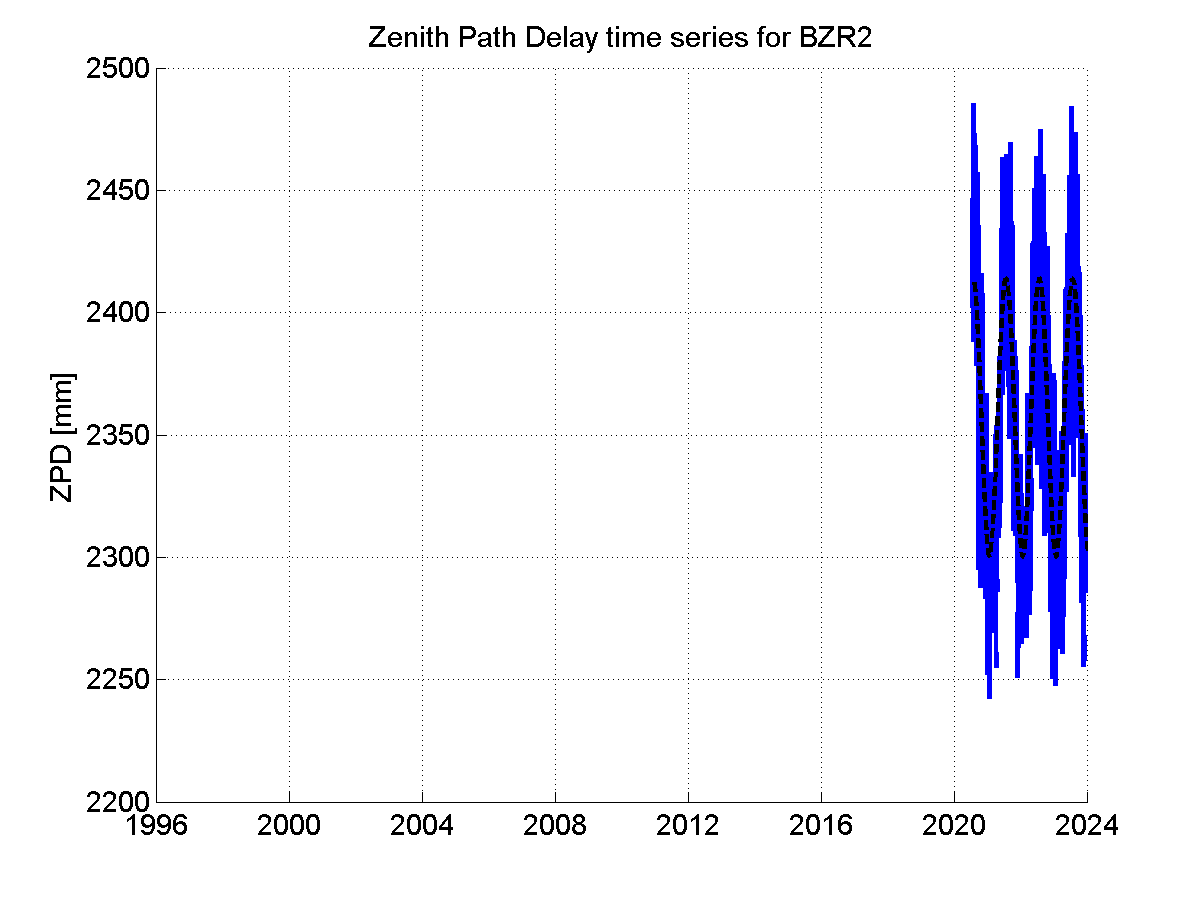

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)
Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

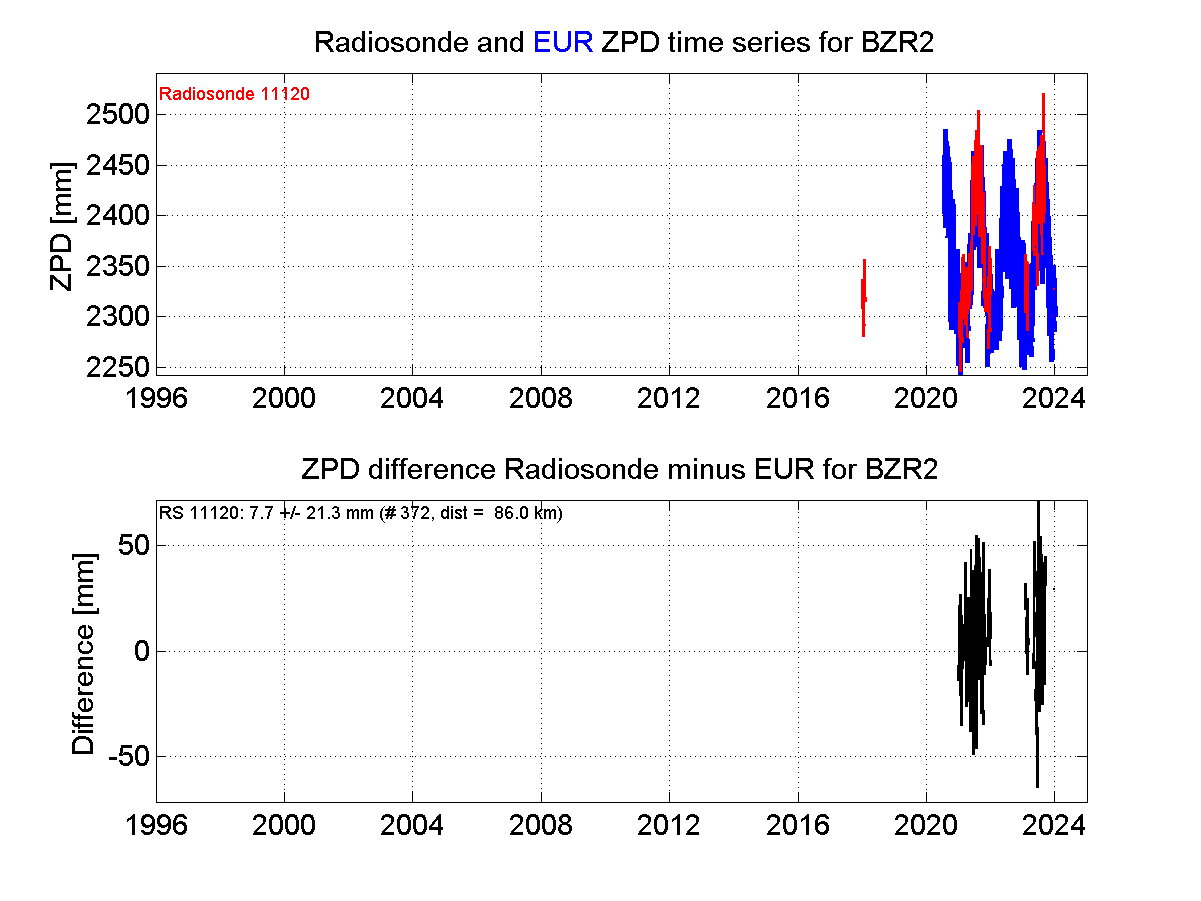

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
