Ceuta, Spain (CEU100ESP)

RESPONSIBLE AGENCY IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE FOR METADATA IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION ceu100esp_20230831.log
STATUS IN EPN included since 09-03-2008
DATA LICENSE CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI) https://doi.org/10.24414/ROB-EUREF-CEU100ESP
LAST AVAILABLE DATA 20-11-2024
LAST RECEIVER TRIMBLE NETR9 (31-08-2023 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA TRM59900.00/SCIS (08-03-2016 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BEK, BKG, IGE, IGN
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 02-12-2020.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 335/2020 N/A
BEV 316/2020 N/A
BKGE 335/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 319/2024 78.57%
BEV 323/2024 21.43%
BKGE 325/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 326/2024 (H) 99.4% 99.4%
BKGE 326/2024 (H) 99.4% 99.4%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

CEU100ESP0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 11:17 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)

    2024/11/20 11:17 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.61,27/JUN/2023) wrt site log (5.61)

    2024/11/20 11:17 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0775 m) wrt site log (0.0776 m)

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/21 08:02 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.61,27/JUN/2023) wrt site log (5.61)

    2024/11/21 08:02 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0775 m) wrt site log (0.0776 m)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 09:21 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.61,27/JUN/2023) wrt site log (5.61)

    2024/11/20 09:21 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0775 m) wrt site log (0.0776 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station CEU100ESP
Last ETRF2000 position valid from 073/2016 to 316/2022
expressed at epoch 001/2010
X = 5150907.995 m Vx = -0.0012 m/y
Y = -478415.049 m Vy = -0.0045 m/y
Z = 3718518.216 m Vz = -0.0001 m/y

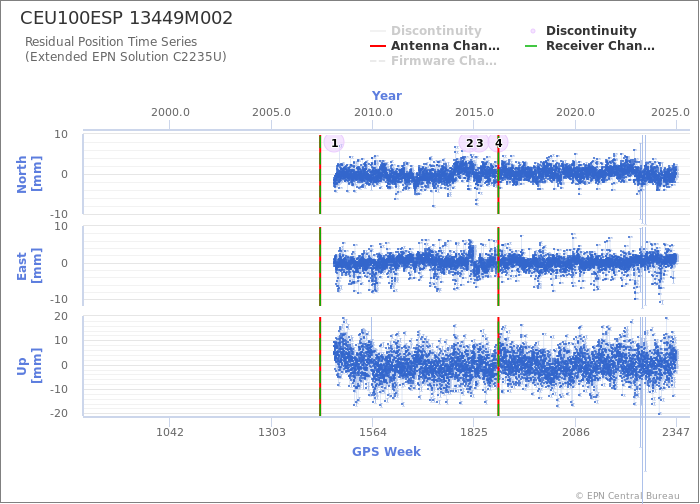

Position time series

Position time series

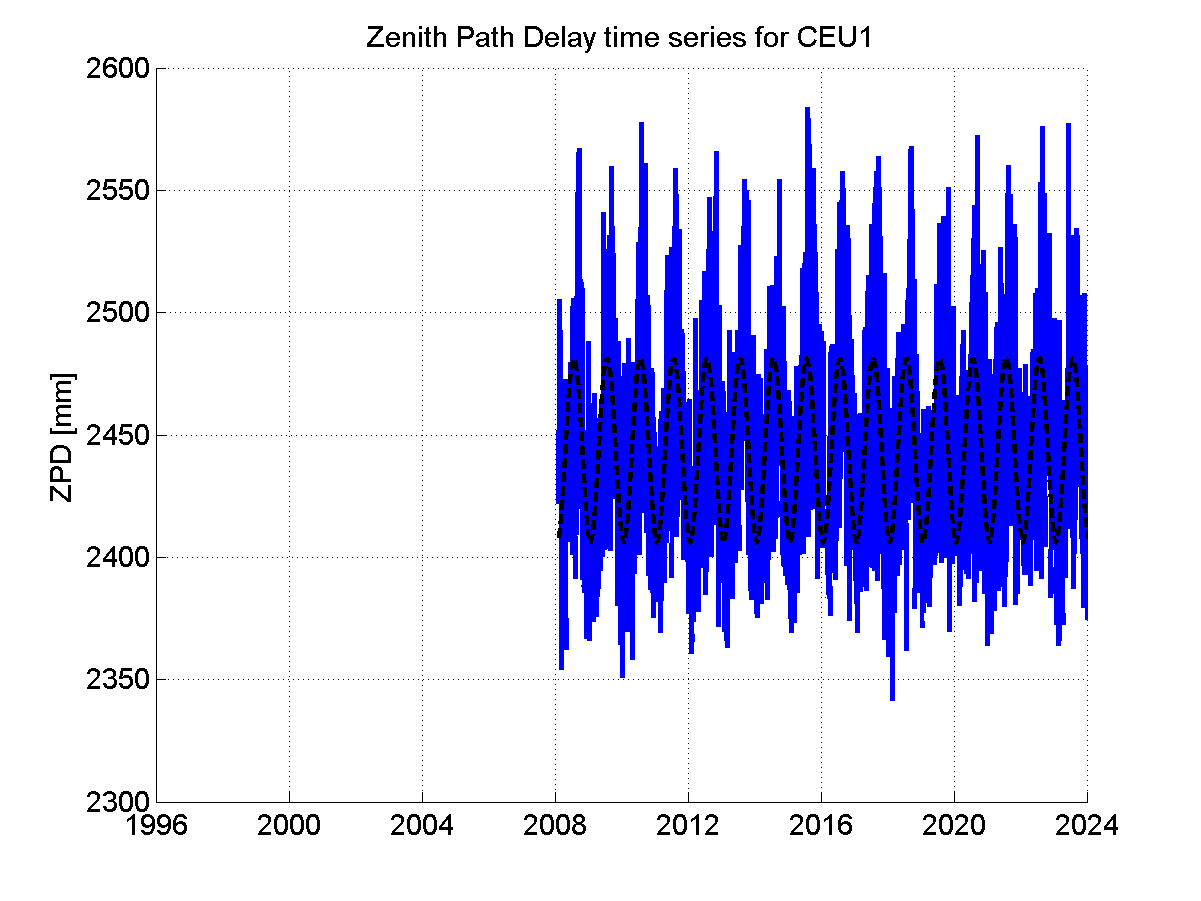

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

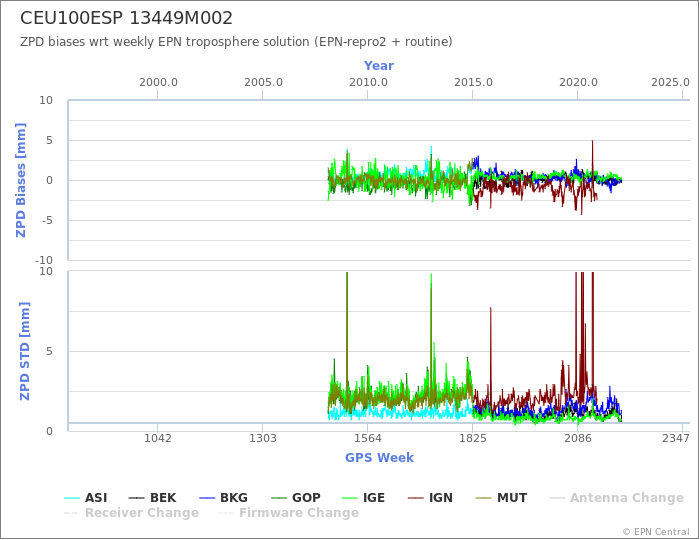

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

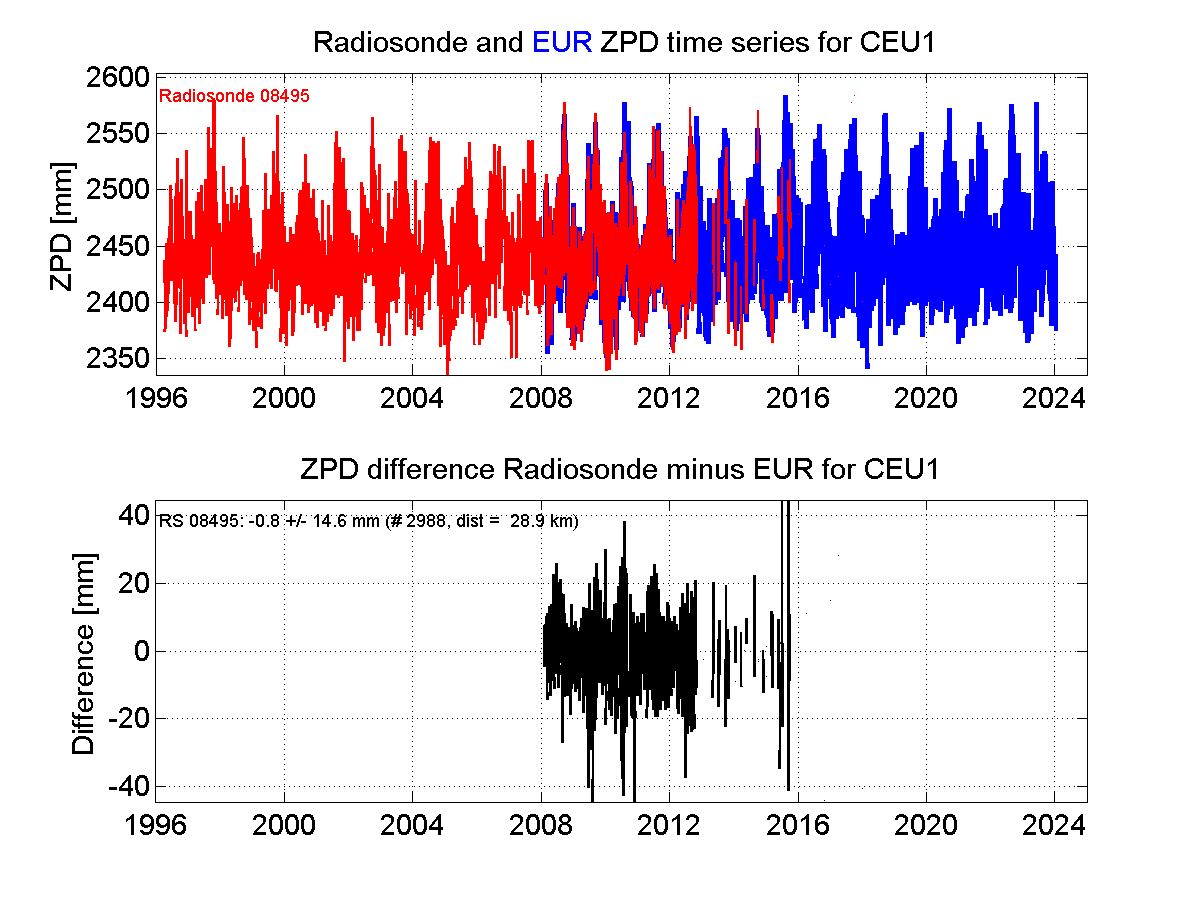

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
