Ceuta, Spain (CEUT00ESP)

RESPONSIBLE AGENCY IGE (Instituto Geografico Nacional de Espana)
RESPONSIBLE FOR METADATA IGE (Instituto Geografico Nacional de Espana)
CURRENT STATION CONFIGURATION ceut00esp_20220907.log
STATUS IN EPN former since 18-02-2007
LAST AVAILABLE DATA 07-12-2006 (decommissioned station)
LAST RECEIVER TRIMBLE NETRS (23-11-2006 to 18-02-2007)
SET TO TRACK GPS
LAST ANTENNA TRM29659.00/TCWD (24-08-2001 to 18-02-2007)
INDIVIDUAL CALIBRATION(S) none
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 341/2006
BKGE 341/2006
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station CEUT00ESP
Last ETRF2000 position valid from 070/2005 to 227/2006
expressed at epoch 001/2010
X = 5150601.958 m Vx = -0.0012 m/y
Y = -478834.696 m Vy = -0.0045 m/y
Z = 3718884.602 m Vz = -0.0001 m/y

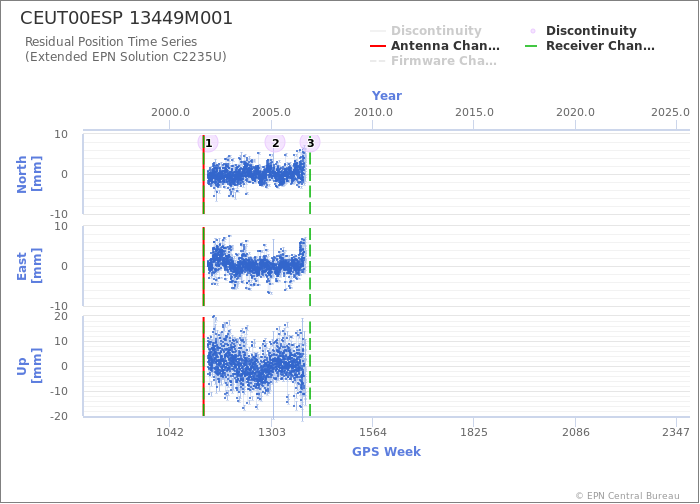

Position time series

Position time series

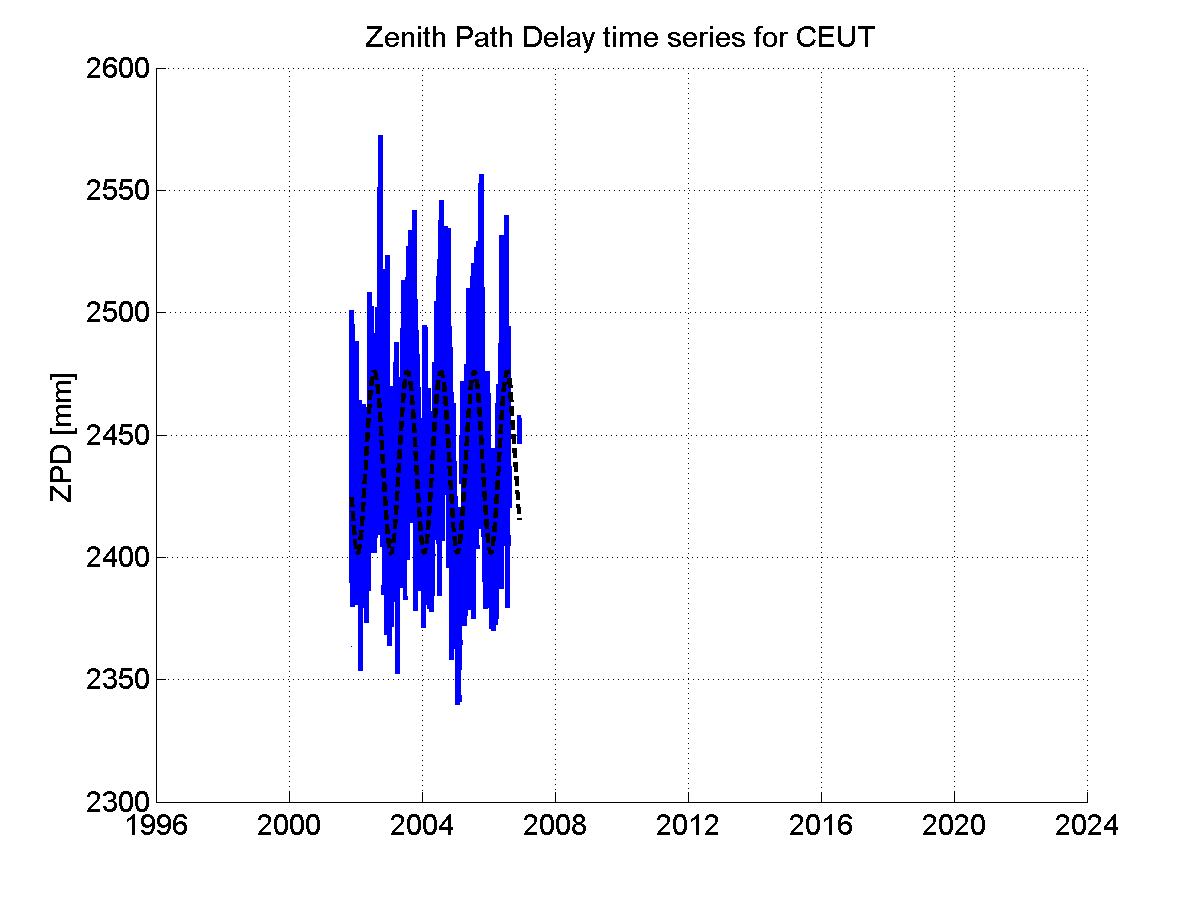

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

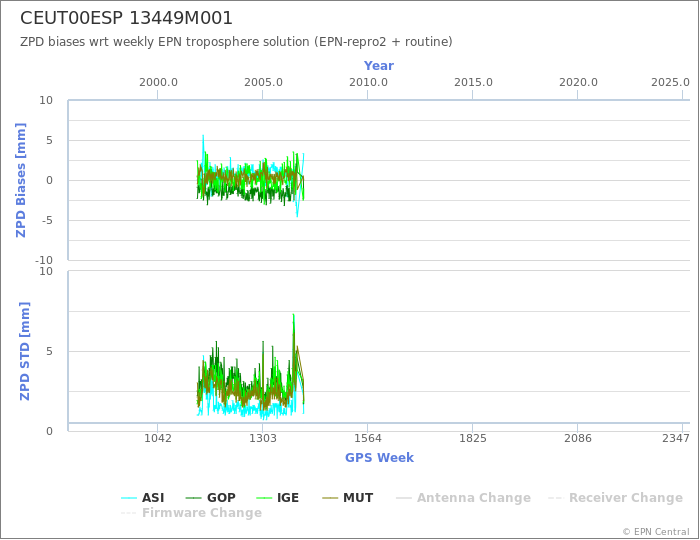

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

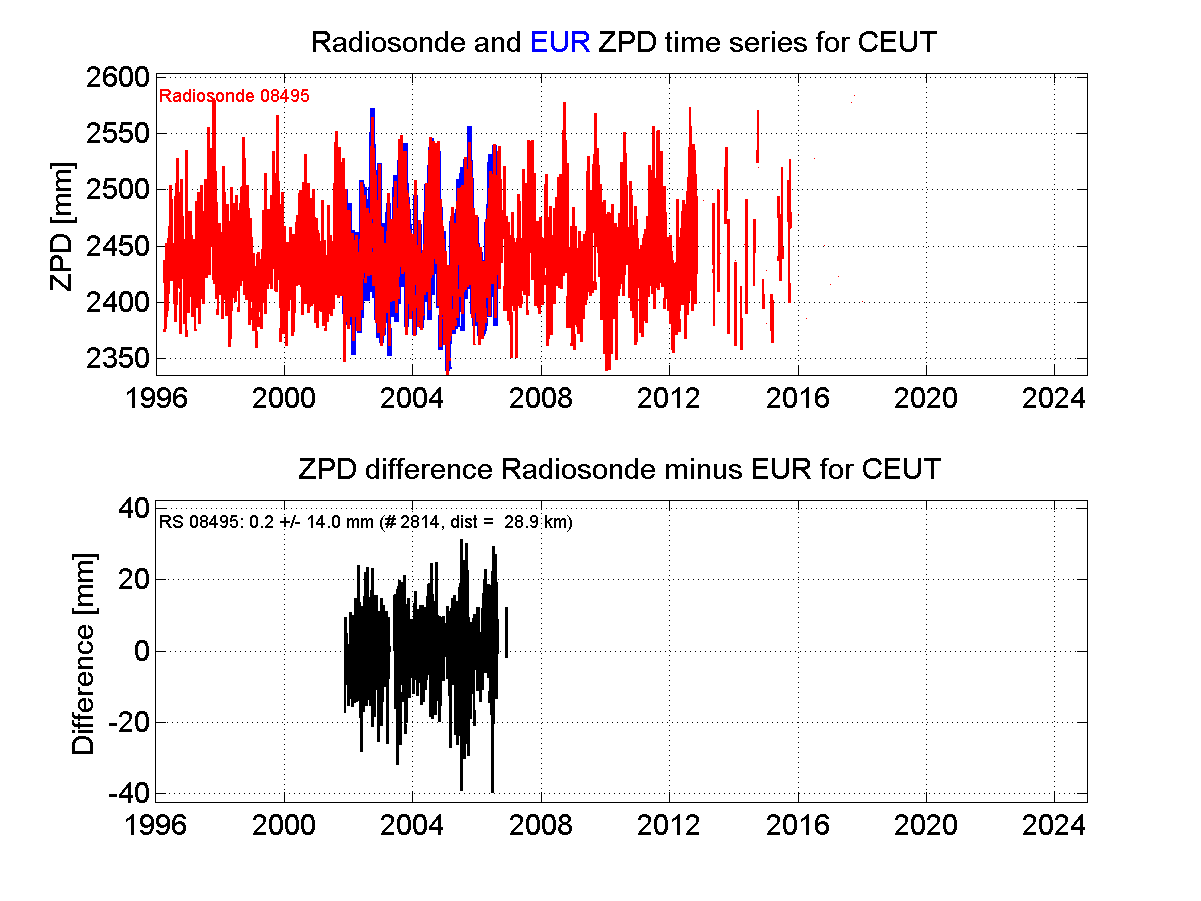

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
