Cadaques, Spain (CREU00ESP)

RESPONSIBLE AGENCY ICGC (Institut Cartografic i Geologic de Catalunya)
RESPONSIBLE FOR METADATA ICGC (Institut Cartografic i Geologic de Catalunya)
CURRENT STATION CONFIGURATION creu00esp_20240913.log
STATUS IN EPN included since 31-01-1999
DATA LICENSE CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI) https://doi.org/10.24414/ROB-EUREF-CREU00ESP
LAST AVAILABLE DATA 20-11-2024
LAST RECEIVER LEICA GR50 (13-09-2024 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA LEIAR25.R4/NONE (17-05-2016 to now)
INDIVIDUAL CALIBRATION(S)
  • LEIAR25.R4/NONE (SN: 726357) from 2016-05-17 to now :
DATA ROUTINELY ANALYSED BY BEK, IGE, IGN, UPA
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 15-04-2020.

RINEX V2.11 - GPS+GLO+GAL
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 105/2020 N/A
BEV 023/2020 N/A
BKGE 105/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 319/2024 78.57%
BEV 325/2024 100%
BKGE 325/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 326/2024 (H) 100% 100%
BKGE 326/2024 (H) 100% 100%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

CREU00ESP0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/11/20 11:41 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80) wrt site log (4.80/7.900)

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/11/21 08:26 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80) wrt site log (4.80/7.900)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)

    2024/11/20 09:45 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80) wrt site log (4.80/7.900)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station CREU00ESP
Last ETRF2000 position valid from 143/2016 to 316/2022
expressed at epoch 001/2010
X = 4715420.543 m Vx = -0.0004 m/y
Y = 273177.512 m Vy = -0.0002 m/y
Z = 4271946.432 m Vz = -0.0008 m/y

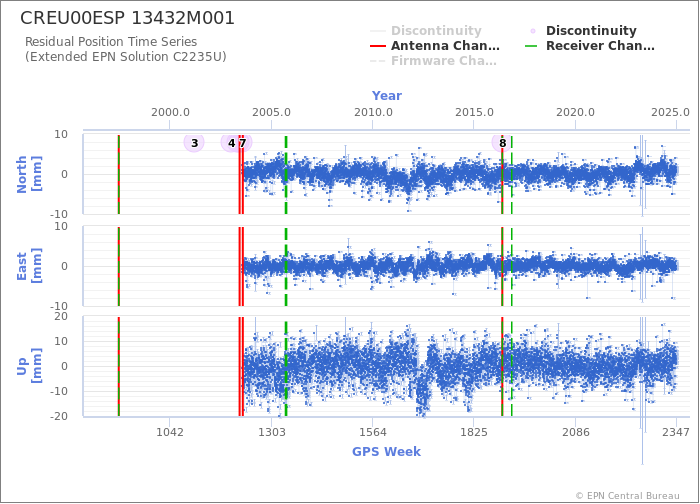

Position time series

Position time series

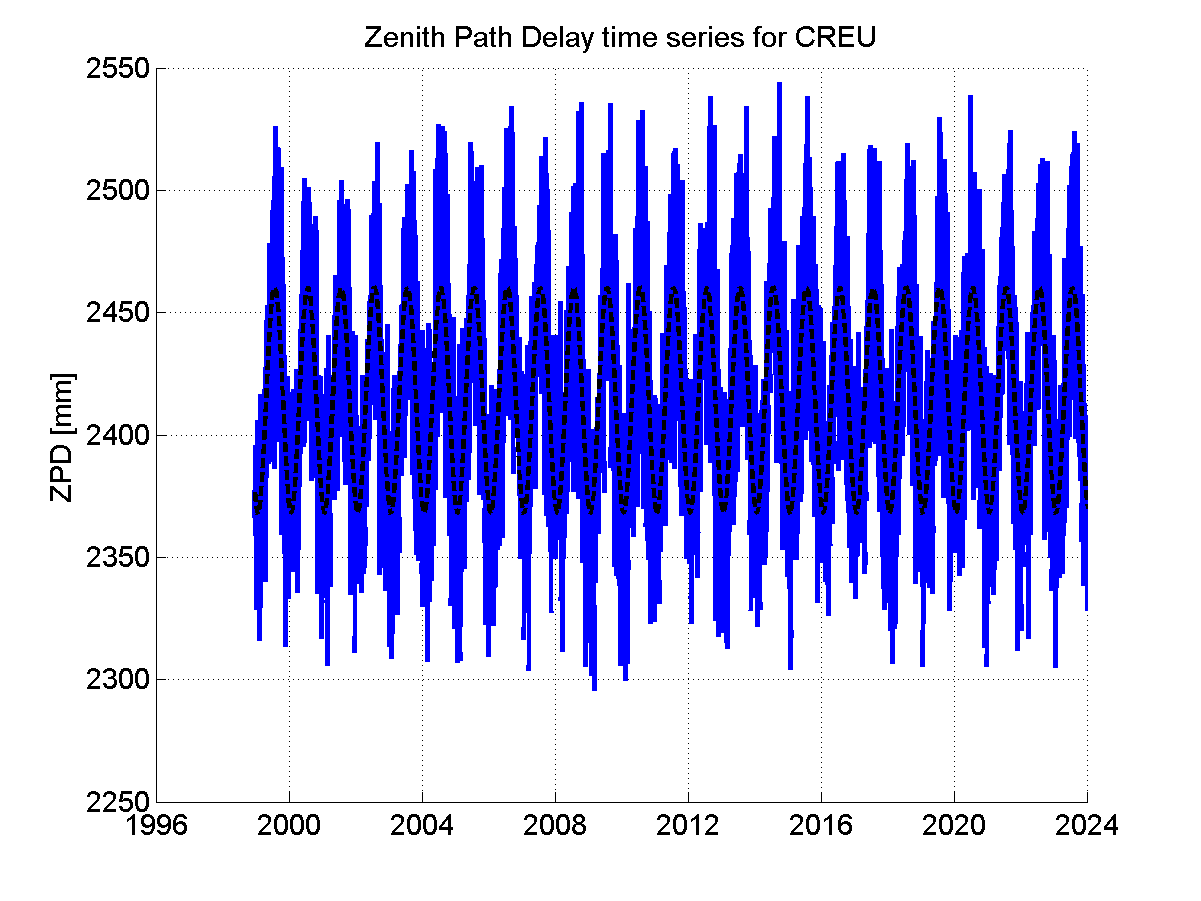

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

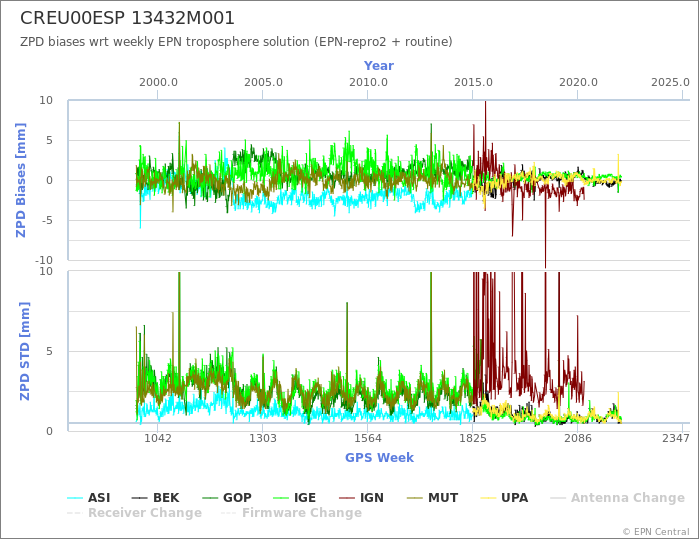

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
