EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA	BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION	dill00deu_20240918.log
STATUS IN EPN	included since 14-08-2016
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	JAVAD TRE_3S DELTA (18-09-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	LEIAR25.R4/LEIT (14-11-2019 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/LEIT (SN: 725058) from 2012-03-28 to 2018-11-29 : BERL - ROBOT (freq: G01, G02, G05, R01, R02, E06, E07, E08, C02, C06, date: 2019-04-29) - careful: not used within EPN analysis BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, S01, S05, E01, E05, E07, E08, E06, J01, J02, J05, J06, C02, C07, C06, I05, date: 2019-01-18) - careful: not used within EPN analysis BONN - CHAMBER (freq: G01, G02, G05, R01, R02, E01, E05, E08, E07, E06, date: 2011-09-12) - careful: not used within EPN analysis GEO - ROBOT (freq: G01, G02, R01, R02, date: 2011-07-08) LEIAR25.R4/LEIT (SN: 725072) from 2019-11-14 to now : BERL - ROBOT (freq: G01, G02, G05, R01, R02, E06, E07, E08, C02, C06, date: 2019-08-19) - careful: not used within EPN analysis BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, R04, R06, S01, S05, E01, E05, E07, E08, E06, J01, J02, J05, J06, C01, C02, C05, C06, C07, C08, I05, date: 2019-09-23) GEO - ROBOT (freq: G01, G02, R01, R02, date: 2011-07-25) - careful: not used within EPN analysis BONN - CHAMBER (freq: G01, G02, G05, R01, R02, E01, E05, E08, E07, E06, date: 2011-09-13) - careful: not used within EPN analysis LEIAR25.R4/LEIT (SN: 725266) from 2018-11-29 to 2019-11-14 : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2012-09-24) - careful: not used within EPN analysis BONN - CHAMBER (freq: G01, G02, G05, R01, R02, R03, S01, S05, E01, E05, E07, E08, E06, J01, J02, J05, J06, C02, C07, C06, I05, date: 2018-08-23) BONN - CHAMBER (freq: G01, G02, G05, R01, R02, E01, E05, E08, E07, E06, date: 2013-02-20) - careful: not used within EPN analysis BERL - ROBOT (freq: G01, G02, G05, R01, R02, E06, E07, E08, C02, C06, date: 2019-12-17) - careful: not used within EPN analysis TPSCR3_GGD/CONE (SN: 2170249) from 2004-12-01 to 2012-03-28 : GEO - ROBOT (freq: G01, G02, date: 2004-02-25)
DATA ROUTINELY ANALYSED BY	BEK, BKG, ROB, SUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 03-05-2021.

RINEX V2.11 - GPS+GLO+SBAS

Daily

(data calendar)

Data centres	Online	Last data	Availability	Download
EPNCB (historical)		123/2021	N/A
BEV		123/2021	N/A
BKGE		123/2021	N/A

RINEX V3.05 - GPS+GLO+GAL+BDS+SBAS

Daily

(data calendar)

Data centres	Online	Last data	Availability	Download
EPNCB (historical)		319/2024	78.57%
BEV		324/2024	96.43%
BKGE		325/2024	100%

Hourly

No recent data available

Hourly

Data centres	Online	Last data	Availability	Latency
BEV		326/2024 (H)	100%	100%
BKGE		326/2024 (H)	100%	100%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

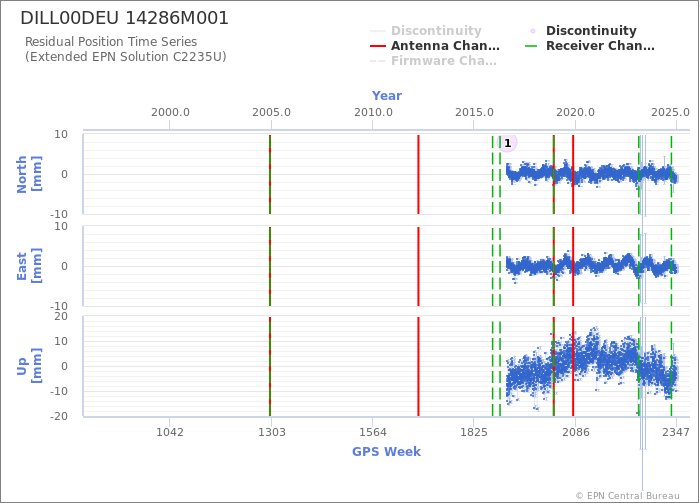

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station DILL00DEU
Last ETRF2000 position valid from 227/2016 to 316/2022 expressed at epoch 001/2010
X = 4132892.677 m	Vx = 0.0003 m/y
Y = 485478.973 m	Vy = -0.0001 m/y
Z = 4817740.225 m	Vz = 0.0001 m/y
