Dourbes, Belgium (DOUR00BEL)

RESPONSIBLE AGENCY ROB (Royal Observatory of Belgium)
RESPONSIBLE FOR METADATA ROB (Royal Observatory of Belgium)
CURRENT STATION CONFIGURATION dour00bel_20240409.log
STATUS IN EPN included since 14-01-1996
DATA LICENSE CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI) https://doi.org/10.24414/ROB-GNSS-DOUR00BEL
LAST AVAILABLE DATA 20-11-2024
LAST RECEIVER SEPT POLARX5 (08-11-2022 to now)
SET TO TRACK GPS+GLO+GAL+BDS+QZSS
LAST ANTENNA LEIAR25.R3/NONE (09-04-2024 to now)
INDIVIDUAL CALIBRATION(S)
  • LEIAR25.R3/NONE (SN: 09300021) from 2015-03-02 to 2024-04-09, from 2024-04-09 to now :
DATA ROUTINELY ANALYSED BY COD, IGE, LPT, MUT, ROB
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 12-01-2021.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 011/2021 N/A
BEV 011/2021 N/A
BKGE 011/2021 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 319/2024 78.57%
BEV 325/2024 100%
BKGE 325/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 326/2024 (G) 100% 94.64%
BKGE 326/2024 (H) 100% 94.64%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

DOUR00BEL0 :

  • ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+QZSS+SBAS (MSM7)

    2024/11/20 12:02 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS+SBAS) wrt site log (GPS+GLO+GAL+BDS+QZSS)

    2024/11/20 12:02 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS+SBAS) wrt source table (GPS+GLO)

  • BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+QZSS+SBAS (MSM7)

    2024/11/21 08:48 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS+SBAS) wrt site log (GPS+GLO+GAL+BDS+QZSS)

  • ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+QZSS+SBAS (MSM7)

    2024/11/20 10:05 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS+SBAS) wrt site log (GPS+GLO+GAL+BDS+QZSS)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station DOUR00BEL
Last ETRF2000 position valid from 067/2015 to 316/2022
expressed at epoch 001/2010
X = 4086778.408 m Vx = -0.0003 m/y
Y = 328451.750 m Vy = -0.0002 m/y
Z = 4869782.418 m Vz = -0.0005 m/y

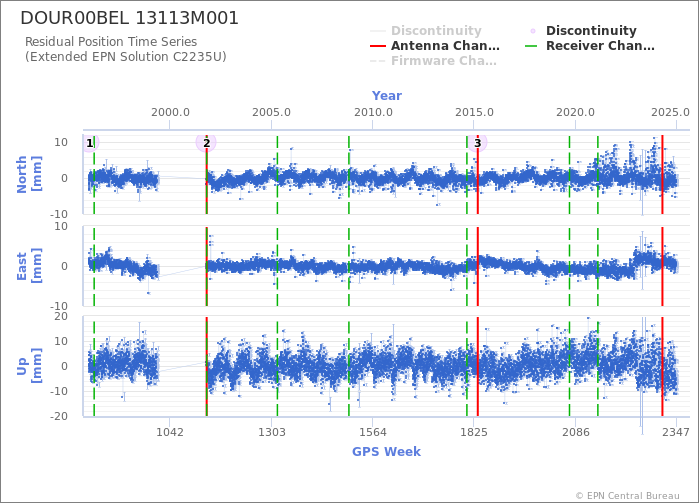

Position time series

Position time series

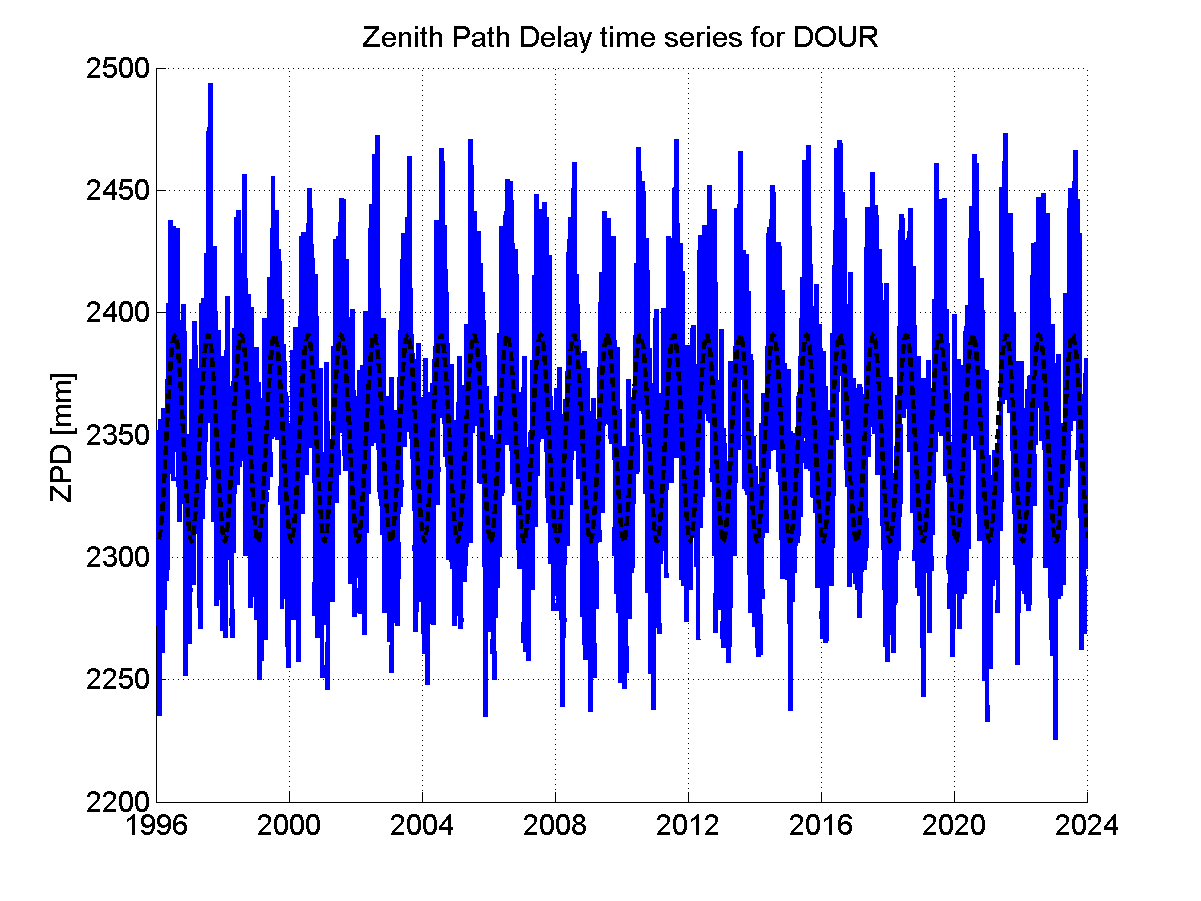

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

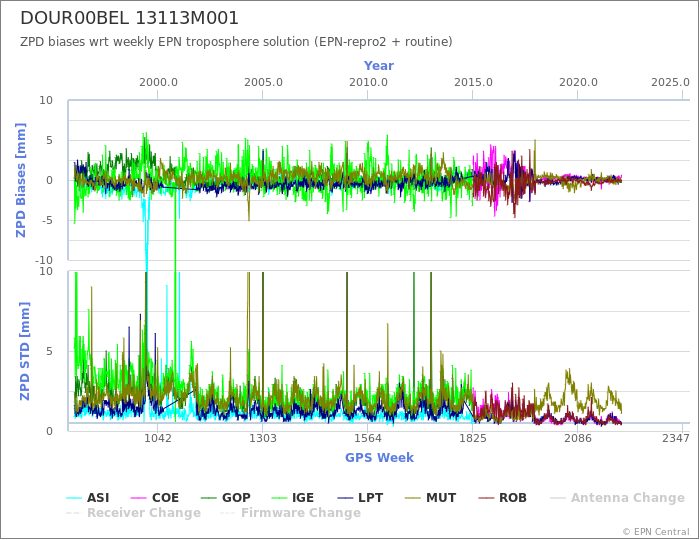

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

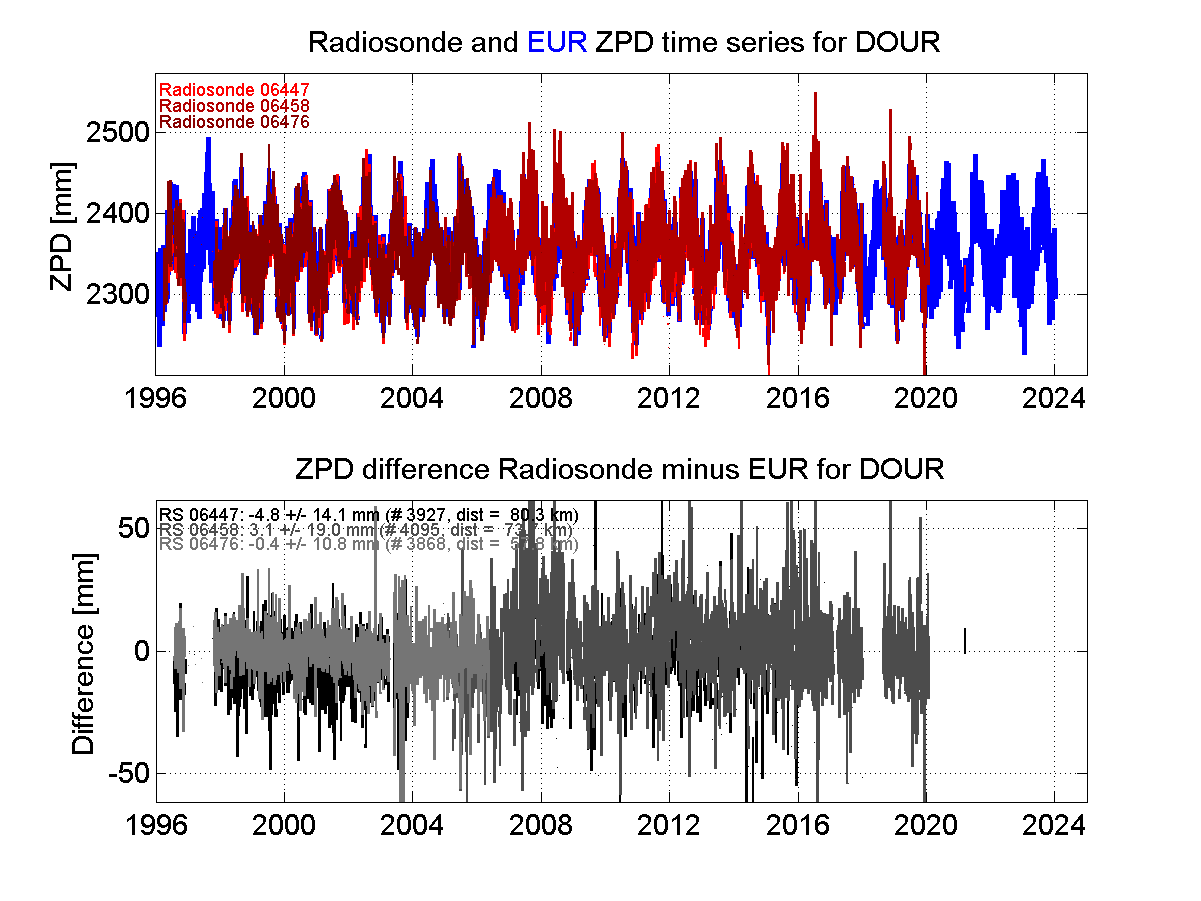

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
