EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	CNES (Centre National d'Etudes Spatiales)
RESPONSIBLE FOR METADATA	CNES (Centre National d'Etudes Spatiales)
CURRENT STATION CONFIGURATION	dyng00grc_20241011.log
STATUS IN EPN	included since 20-10-2013
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	SEPT POLARX5 (19-09-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+IRNSS+SBAS
LAST ANTENNA	TRM59800.00/NONE (25-09-2015 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	ASI, BEK, BKG, IGN, RGA
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 14-12-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

DYNG00GRC0 :

ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)
2024/11/20 12:04 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt source table (GPS+GLO)
2024/11/20 12:04 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 2.2676 m) exceeds threshold

BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)
2024/11/20 08:47 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 2.2676 m) exceeds threshold

ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)
2024/11/20 10:08 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 2.2676 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

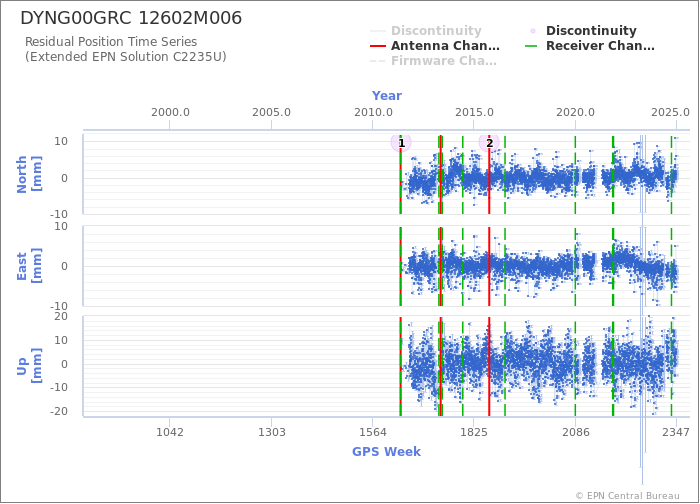

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station DYNG00GRC
Last ETRF2000 position valid from 270/2015 to 316/2022 expressed at epoch 001/2010
X = 4595220.432 m	Vx = 0.0208 m/y
Y = 2039433.732 m	Vy = -0.0084 m/y
Z = 3912625.721 m	Vz = -0.0207 m/y
