Edinburgh, United Kingdom Of Great Britain And Northern Ireland (the) (EDIN00GBR)

RESPONSIBLE AGENCY OS (Ordnance Survey)
RESPONSIBLE FOR METADATA OS (Ordnance Survey)
CURRENT STATION CONFIGURATION edin00gbr_20230406.log
STATUS IN EPN former since 13-09-2020
LAST AVAILABLE DATA 08-09-2020 (decommissioned station)
LAST RECEIVER SEPT POLARX5 (20-02-2020 to 08-09-2020)
SET TO TRACK GPS+GLO
LAST ANTENNA LEIAR25/LEIT (10-12-2008 to 08-09-2020)
INDIVIDUAL CALIBRATION(S) none
INCLUSION IN OTHER NETWORK(S) EPOS
RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Last data
EPNCB (historical) 251/2020
BEV 023/2020
BKGE 252/2020
Hourly

No recent data available

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station EDIN00GBR
Last ETRF2000 position valid from 043/2017 to 251/2020
expressed at epoch 001/2010
X = 3575928.458 m Vx = -0.0004 m/y
Y = -205860.617 m Vy = -0.0001 m/y
Z = 5259853.174 m Vz = -0.0004 m/y

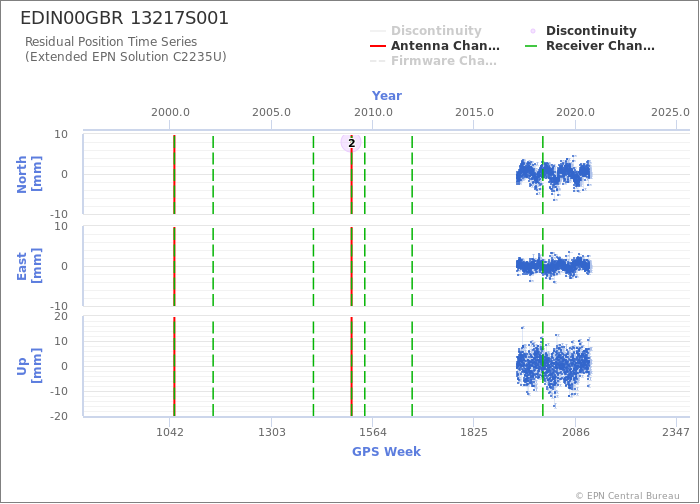

Position time series

Position time series

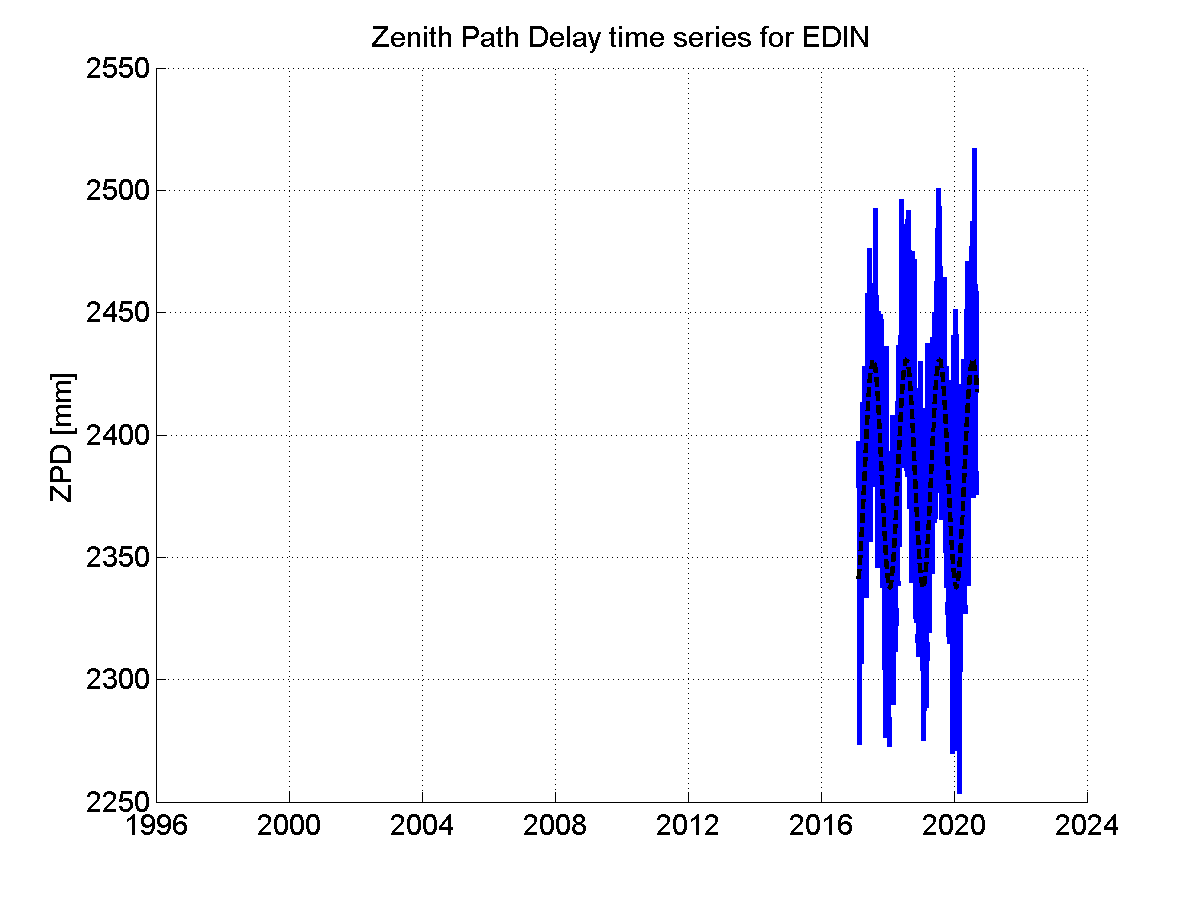

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

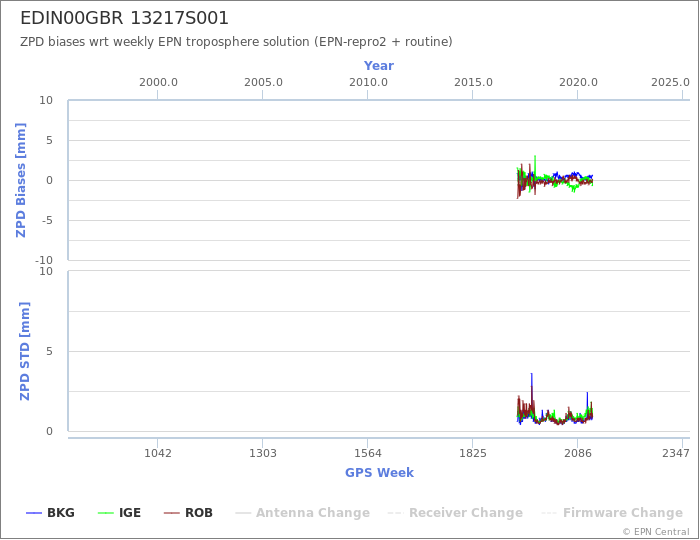

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
