Eijsden, Netherlands (the) (EIJS00NLD)

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 093/2021 78.57%
BEV 099/2021 100%
BKGE 099/2021 100%
RINEX V3.04 - GPS+GLO+GAL+BDS+QZSS+IRNSS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 093/2021 78.57%
BEV 099/2021 100%
BKGE 099/2021 100%
Hourly
Data centres Online Last data Availability Latency
BEV 100/2021 (S) 100% 95.83%
BKGE 100/2021 (S) 100% 96.43%
Hourly
Data centres Online Last data Availability Latency
BEV 100/2021 (S) 100% 100%
BKGE 100/2021 (S) 100% 100%

Daily and Hourly Latency Plots

Real-time

EIJS00NLD0 :

  • ASI (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+QZSS+SBAS (MSM7)

    2021/04/10 19:08 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+QZSS+SBAS) wrt source table (GPS+GLO+GAL+BDS+QZSS)

information above extracted from monitor files - ftp://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF has classified EIJS00NLD as a class A station
Last ETRF2000 position valid from 117/2014 to 312/2020
expressed at epoch 001/2010
X = 4023086.533 m Vx = 0.0001 m/y
Y = 400394.867 m Vy = -0.0006 m/y
Z = 4916655.331 m Vz = 0.0000 m/y

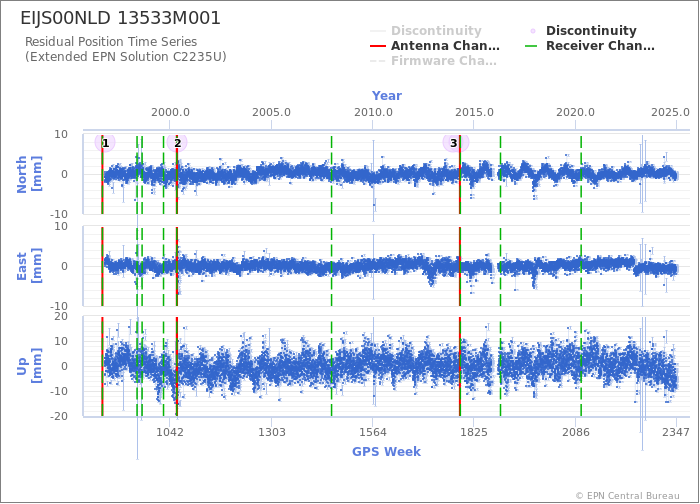

Position time series

Position time series

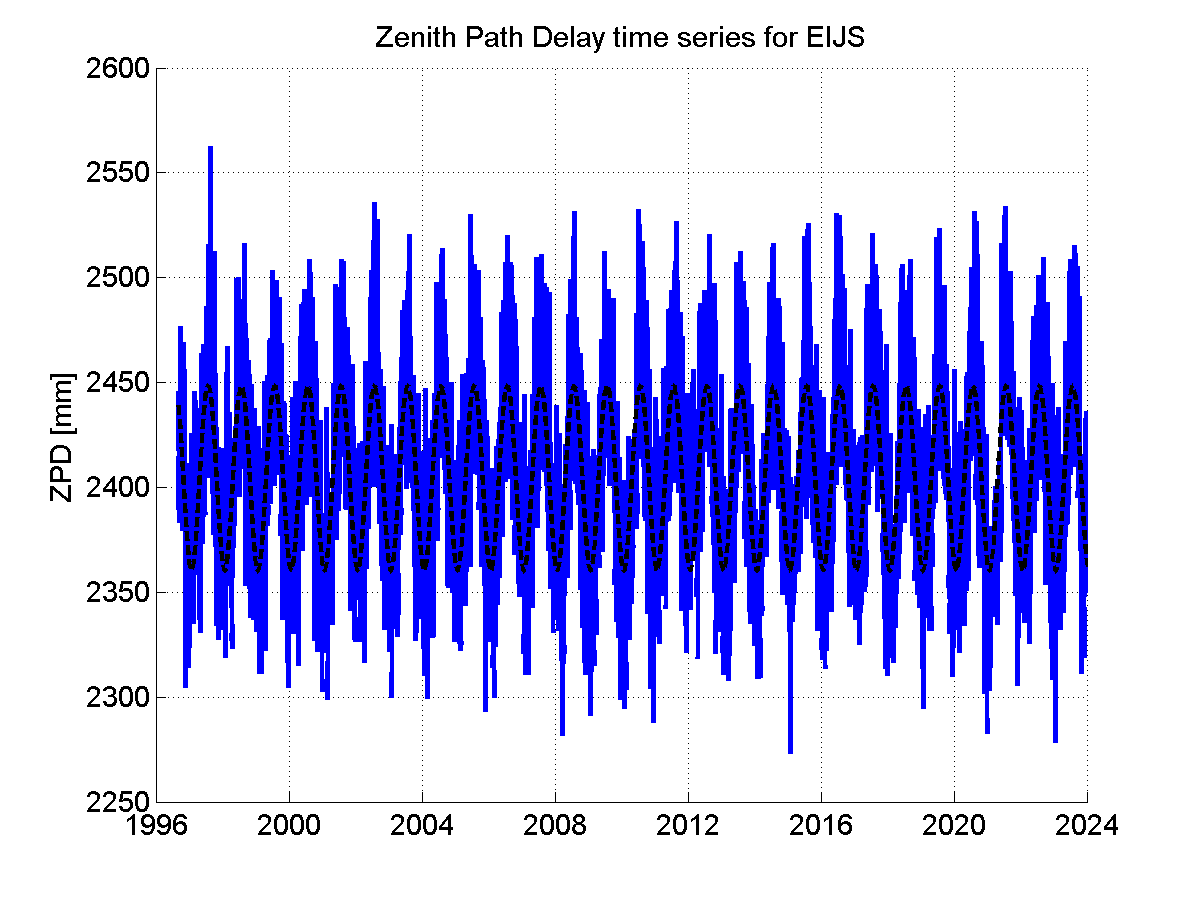

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

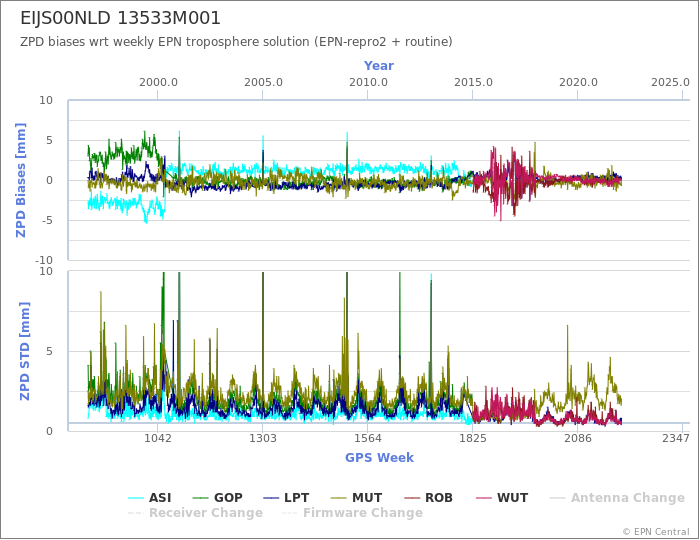

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

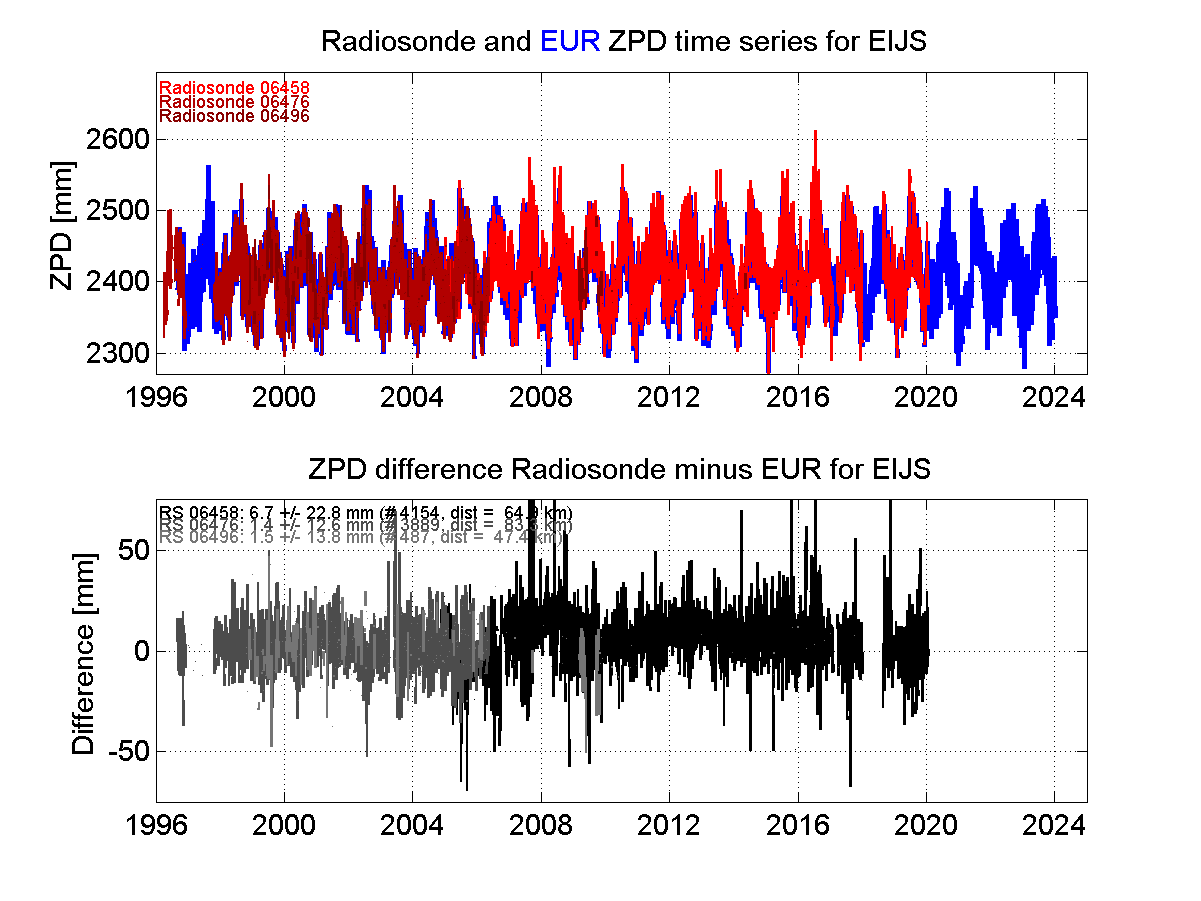

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
