RESPONSIBLE AGENCY GFZ (Helmholtz Centre Potsdam GFZ German Research Centre for Geosciences)
RESPONSIBLE FOR METADATA GFZ (Helmholtz Centre Potsdam GFZ German Research Centre for Geosciences)
CURRENT STATION CONFIGURATION enao00prt_20230203.log
STATUS IN EPN included since 29-03-2020
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 20-11-2024
LAST RECEIVER JAVAD TRE_3 (03-02-2023 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA JAVRINGANT_G5T/NONE (23-07-2019 to now)
INDIVIDUAL CALIBRATION(S)
  • JAVRINGANT_G5T/NONE (SN: 3222) from 2019-07-23 to now :
DATA ROUTINELY ANALYSED BY ASI, BEK, GFZ, IGE, WUT
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 09-01-2020.

RINEX V2.11
Daily
(data calendar)

No recent data available

RINEX V3.05 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 319/2024 78.57%
BEV 325/2024 100%
BKGI 325/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 326/2024 (H) 100% 100%
BKGI 326/2024 (H) 100% 100%

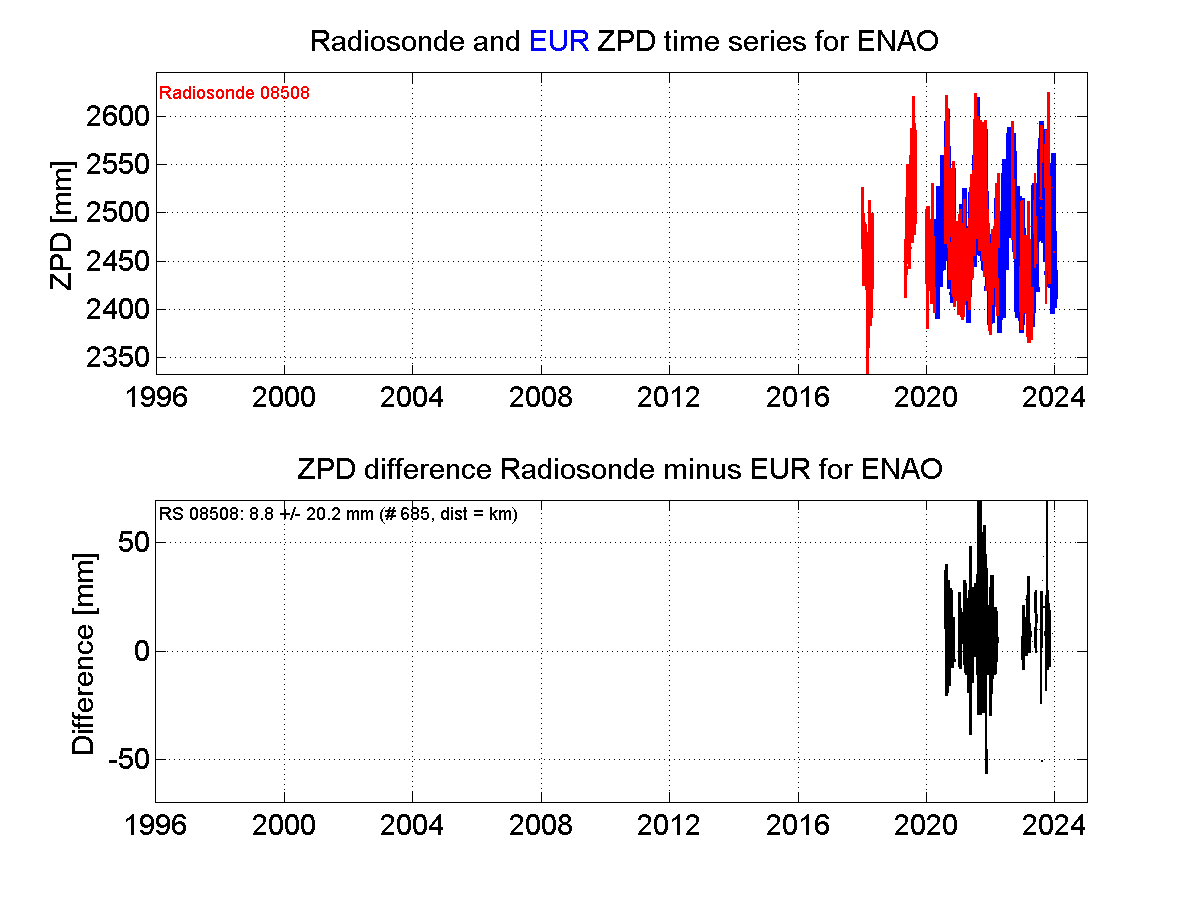

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

ENAO00PRT0 :

  • ASI (broadcaster, registration) - RTCM3.0 : stream constellation information not available

    2020/08/14 10:42 RTCM 3.3 : Unexpected constellations in stream (GPS+GLO+GAL+BDS+SBAS) wrt source table (GPS+GLO+GAL)

    2020/08/14 10:42 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.6961m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2024/11/20 09:01 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.6833 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.3 : GPS+GLO+GAL+BDS+SBAS (MSM7)

    2024/11/20 10:23 RTCM 3.3/1006: Coordinate difference with ETRS89 ( 0.6833 m) exceeds threshold

    2024/11/20 10:23 RTCM 3.3 Latency (8.5s) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Location

Pictures
