EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	OSNI (Ordnance Survey of Northern Ireland)
RESPONSIBLE FOR METADATA	OSNI (Ordnance Survey of Northern Ireland)
CURRENT STATION CONFIGURATION	enis00gbr_20241112.log
STATUS IN EPN	included since 15-03-2009
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	02-09-2020 (dormant station)
LAST RECEIVER	LEICA GR25 (22-10-2020 to now)
SET TO TRACK	GPS+GLO+GAL
LAST ANTENNA	LEIAT504GG/LEIS (21-04-2008 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BKG, MUT, ROB, WUT

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 22-10-2020.

Data centres	Online	Last data	Availability	Download
BKGE		247/2014	0%

No recent data available

Data centres	Online	Last data	Availability	Latency
BEV		255/2023 (W)	0%	0%

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

ENIS00GBR0 :

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

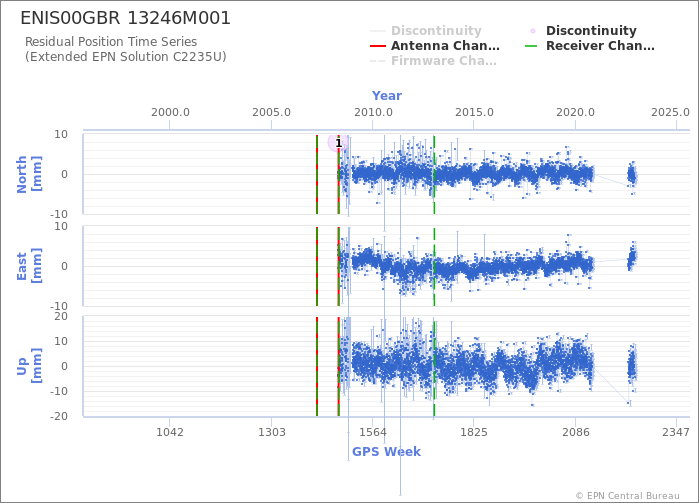

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station ENIS00GBR
Last ETRF2000 position valid from 114/2008 to 316/2022 expressed at epoch 001/2010
X = 3688504.102 m	Vx = -0.0010 m/y
Y = -495090.787 m	Vy = -0.0016 m/y
Z = 5162577.258 m	Vz = -0.0002 m/y
