EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	ICGC (Institut Cartografic i Geologic de Catalunya)
RESPONSIBLE FOR METADATA	ICGC (Institut Cartografic i Geologic de Catalunya)
CURRENT STATION CONFIGURATION	esco00esp_20240902.log
STATUS IN EPN	included since 05-09-1999
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-ESCO00ESP
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	LEICA GR50 (27-08-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS
LAST ANTENNA	LEIAR25.R4/NONE (28-09-2016 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/NONE (SN: 726360) from 2016-09-28 to now : GEO - ROBOT (freq: G01, G02, R01, R02, date: 2015-12-03)
DATA ROUTINELY ANALYSED BY	BEK, IGE, IGN, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 15-04-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

ESCO00ESP0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/11/20 12:22 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80) wrt site log (4.80/7.900)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/11/20 09:08 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80) wrt site log (4.80/7.900)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM5)
2024/11/20 10:29 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80) wrt site log (4.80/7.900)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

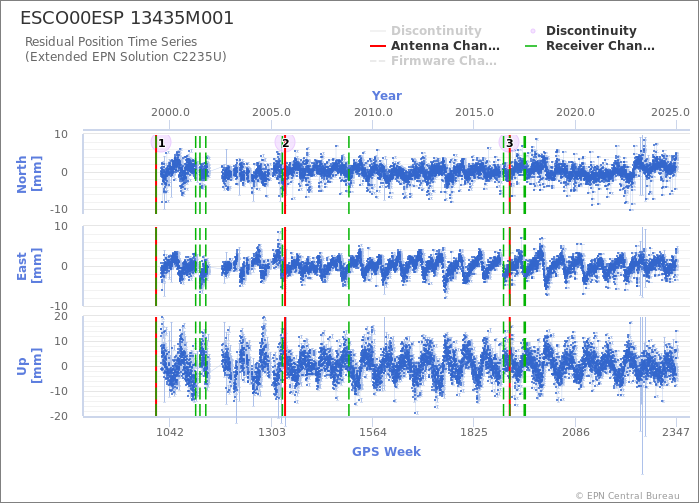

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station ESCO00ESP
Last ETRF2000 position valid from 276/2016 to 316/2022 expressed at epoch 001/2010
X = 4696265.178 m	Vx = -0.0003 m/y
Y = 79978.228 m	Vy = -0.0004 m/y
Z = 4304244.751 m	Vz = -0.0004 m/y
