EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA	BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION	eusk00deu_20240919.log
STATUS IN EPN	included since 30-08-1998
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	SEPT POLARX5E (19-09-2024 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	LEIAR25.R4/LEIT (25-03-2014 to now)
INDIVIDUAL CALIBRATION(S)	LEIAR25.R4/LEIT (SN: 725299) from 2014-03-25 to now : BONN - CHAMBER (freq: G01, G02, G05, R01, R02, E01, E05, E08, E07, E06, date: 2012-03-02) GEO - ROBOT (freq: G01, G02, R01, R02, date: 2011-11-10) - careful: not used within EPN analysis LEIAT504GG/LEIS (SN: 200460) from 2009-11-17 to 2014-03-25 : GEO - ROBOT (freq: G01, G02, date: 2008-04-15)
DATA ROUTINELY ANALYSED BY	BKG, LPT, MUT, ROB
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 20-10-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

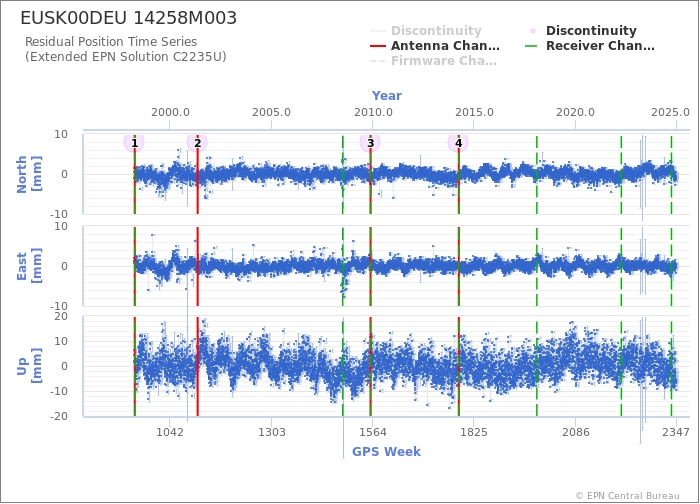

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station EUSK00DEU
Last ETRF2000 position valid from 089/2014 to 316/2022 expressed at epoch 001/2010
X = 4022106.505 m	Vx = -0.0010 m/y
Y = 477010.860 m	Vy = -0.0006 m/y
Z = 4910840.531 m	Vz = -0.0007 m/y
