EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	CSIRP&NFC (Centre of Special Information Receiving and Processing and Navigation Field Control)
RESPONSIBLE FOR METADATA	MAO (Main Astronomical Observatory of the National Academy of Sciences of Ukraine)
CURRENT STATION CONFIGURATION	gdrs00ukr_20240202.log
STATUS IN EPN	included since 14-04-2019
LAST AVAILABLE DATA	17-04-2024
LAST RECEIVER	NOV OEMV3 (02-11-2018 to now)
SET TO TRACK	GPS+GLO
LAST ANTENNA	NOV702GG/NONE (28-11-2014 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEV, GFZ, UPA, WUT
INCLUSION IN OTHER NETWORK(S)	EPOS

Data Provided

Recent RINEX file errors detected by BKG data centre: web page, API (JSON format)

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

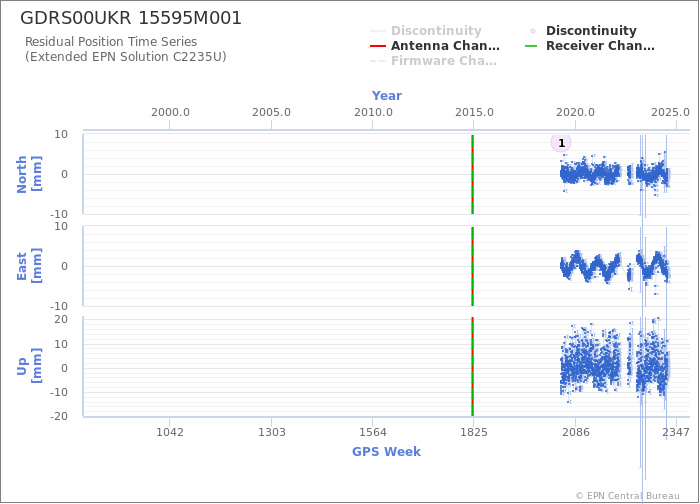

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station GDRS00UKR
Last ETRF2000 position valid from 104/2019 to 264/2022 expressed at epoch 001/2010
X = 3532702.357 m	Vx = -0.0002 m/y
Y = 1994351.011 m	Vy = -0.0009 m/y
Z = 4905461.292 m	Vz = -0.0008 m/y
