Genova, Italy (GENO00ITA)

RESPONSIBLE AGENCY ASI (Agenzia Spaziale Italiana)
RESPONSIBLE FOR METADATA ASI (Agenzia Spaziale Italiana)
CURRENT STATION CONFIGURATION geno00ita_20240718.log
STATUS IN EPN included since 29-11-1998
DATA LICENSE CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI) https://doi.org/10.24414/ROB-EUREF-GENO00ITA
LAST AVAILABLE DATA 20-11-2024
LAST RECEIVER LEICA GR30 (28-02-2024 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA LEIAR20/NONE (06-03-2018 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY ASI, BEK, MUT, UPA
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 03-08-2020.

RINEX V2.11 - GPS+GLO+GAL+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 216/2020 N/A
BEV 023/2020 N/A
BKGI 216/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 319/2024 78.57%
BEV 287/2024 0%
BKGI 325/2024 92.86%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 288/2024 (J) 0% 0%
BKGI 326/2024 (H) 100% 93.45%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

GENO00ITA0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 12:49 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 12:49 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 12:49 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)

    2024/11/20 12:49 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.5646 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 09:35 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 09:35 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)

    2024/11/20 09:35 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.5646 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 10:56 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 10:56 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (4.80.109) wrt site log (4.80/7.900)

    2024/11/20 10:56 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.5646 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station GENO00ITA
Last ETRF2000 position valid from 066/2018 to 316/2022
expressed at epoch 001/2010
X = 4507892.587 m Vx = -0.0007 m/y
Y = 707621.226 m Vy = -0.0001 m/y
Z = 4441603.281 m Vz = -0.0008 m/y

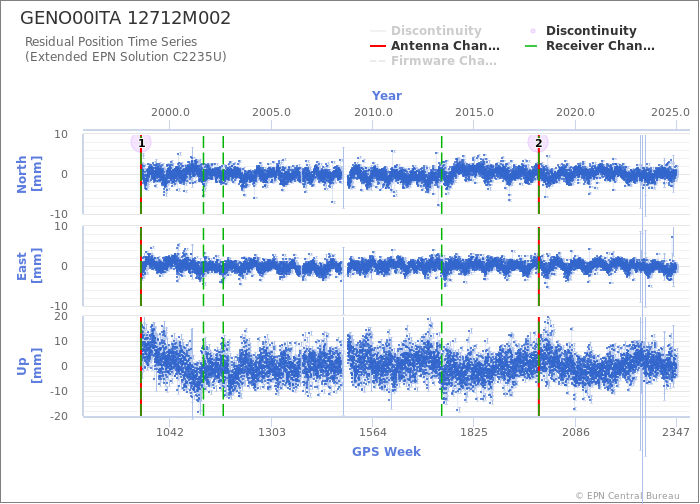

Position time series

Position time series

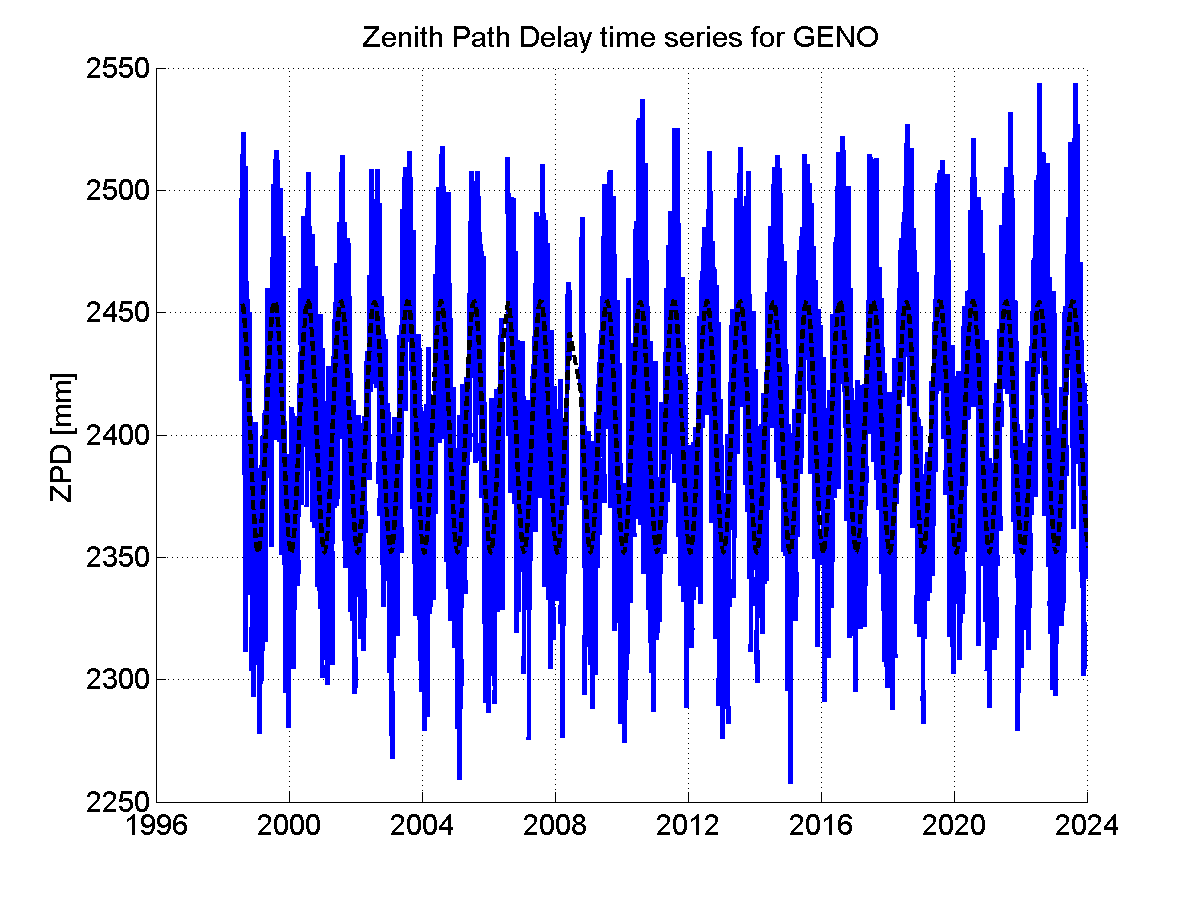

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

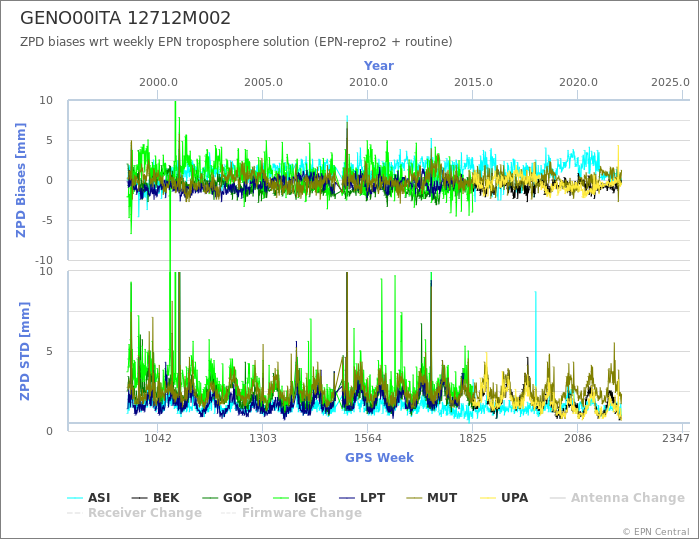

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution
Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
