EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	MAO (Main Astronomical Observatory of the National Academy of Sciences of Ukraine)
RESPONSIBLE FOR METADATA	MAO (Main Astronomical Observatory of the National Academy of Sciences of Ukraine)
CURRENT STATION CONFIGURATION	glsv00ukr_20200508.log
STATUS IN EPN	included since 10-05-1998
DATA LICENSE	CC-BY-4.0
DIGITAL OBJECT IDENTIFIER (DOI)	https://doi.org/10.24414/ROB-EUREF-GLSV00UKR
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	TRIMBLE NETR9 (07-05-2020 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+QZSS
LAST ANTENNA	TRM115000.00/NONE (24-06-2019 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BKG, COD, GFZ, MUT, WUT
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 18-12-2021.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

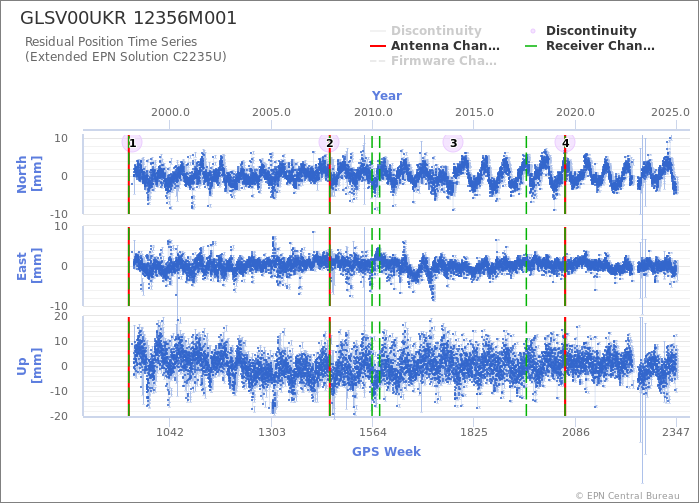

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station GLSV00UKR
Last ETRF2000 position valid from 176/2019 to 291/2022 expressed at epoch 001/2010
X = 3512889.337 m	Vx = -0.0005 m/y
Y = 2068979.680 m	Vy = -0.0005 m/y
Z = 4888903.022 m	Vz = -0.0006 m/y
