Goettingen, Germany (GOET00DEU)

RESPONSIBLE AGENCY BKG (Bundesamt fuer Kartographie und Geodaesie)
RESPONSIBLE FOR METADATA BKG (Bundesamt fuer Kartographie und Geodaesie)
CURRENT STATION CONFIGURATION goet00deu_20240710.log
STATUS IN EPN included since 12-12-2021
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 20-11-2024
LAST RECEIVER JAVAD TRE_3S DELTA (10-07-2024 to now)
SET TO TRACK GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA LEIAR25.R4/LEIT (15-02-2021 to now)
INDIVIDUAL CALIBRATION(S)
  • LEIAR25.R4/LEIT (SN: 10211013) from 2021-02-15 to now :
DATA ROUTINELY ANALYSED BY BEK, BKG, GFZ, ROB
INCLUSION IN OTHER NETWORK(S) EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 01-11-2021.

RINEX V2.11 - GPS+GLO+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 305/2021 N/A
BKGE 305/2021 N/A
RINEX V3.05 - GPS+GLO+GAL+BDS+SBAS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 319/2024 78.57%
BEV 324/2024 96.43%
BKGE 325/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 326/2024 (H) 100% 100%
BKGE 326/2024 (H) 100% 100%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

GOET00DEU0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 12:52 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 12:52 RTCM 3.2/1033: Incorrect Receiver SN in stream (S3433397D4DE1508D947) wrt site log (04927)

    2024/11/20 12:52 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.7300 m) exceeds threshold

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 09:38 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 09:38 RTCM 3.2/1033: Incorrect Receiver SN in stream (S3433397D4DE1508D947) wrt site log (04927)

    2024/11/20 09:38 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.7300 m) exceeds threshold

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 10:59 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)

    2024/11/20 10:59 RTCM 3.2/1033: Incorrect Receiver SN in stream (S3433397D4DE1508D947) wrt site log (04927)

    2024/11/20 10:59 RTCM 3.2/1006: Coordinate difference with ETRS89 ( 0.7300 m) exceeds threshold

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing only positions for the station GOET00DEU
Last ETRF2000 position valid from 346/2021 to 316/2022
expressed at epoch 146/2022
X = 3918912.266 m
Y = 687523.443 m
Z = 4968545.275 m

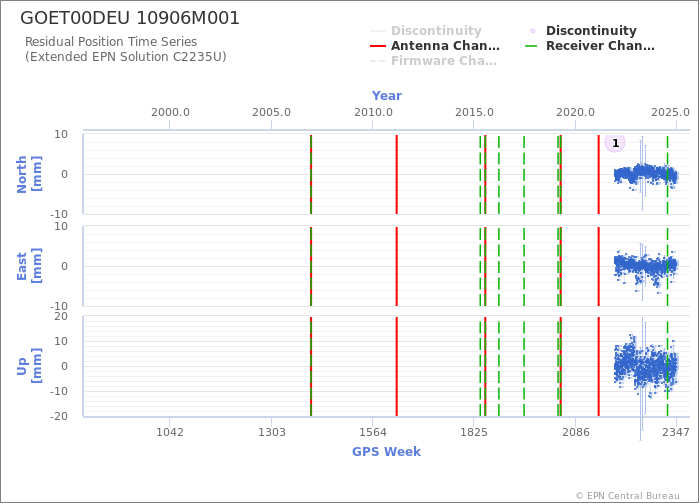

Position time series

Position time series

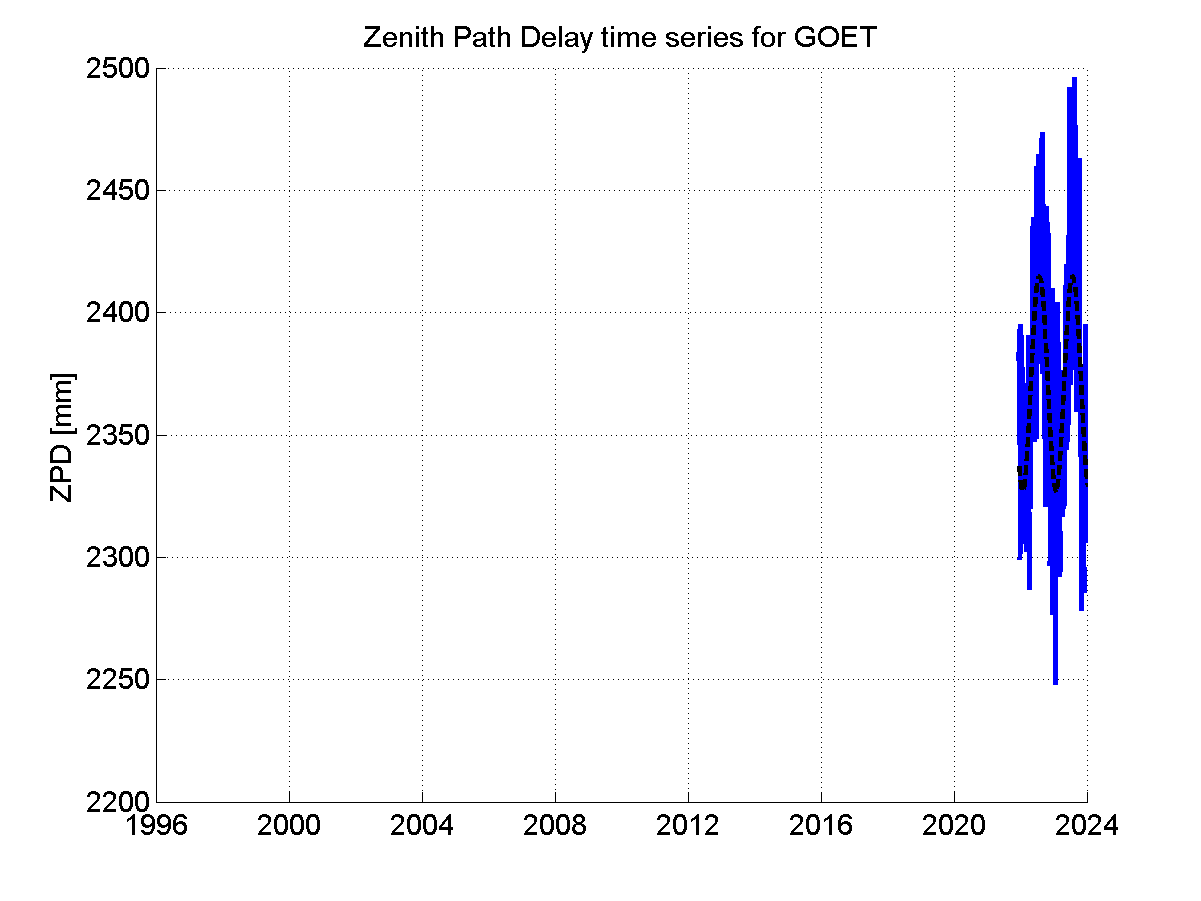

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

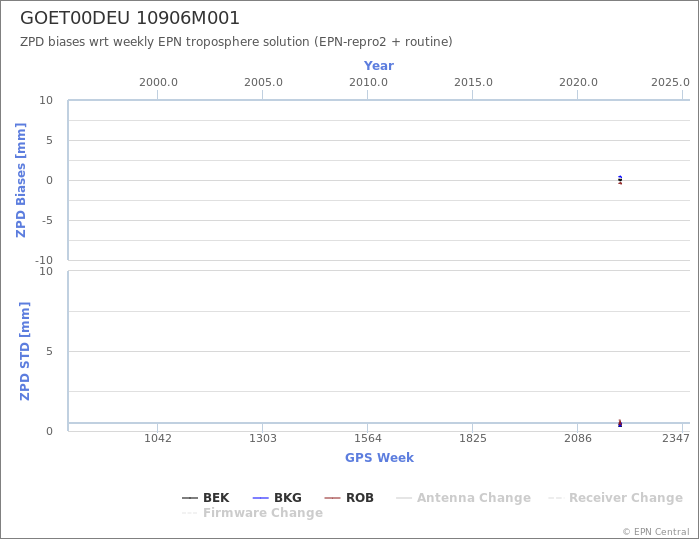

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

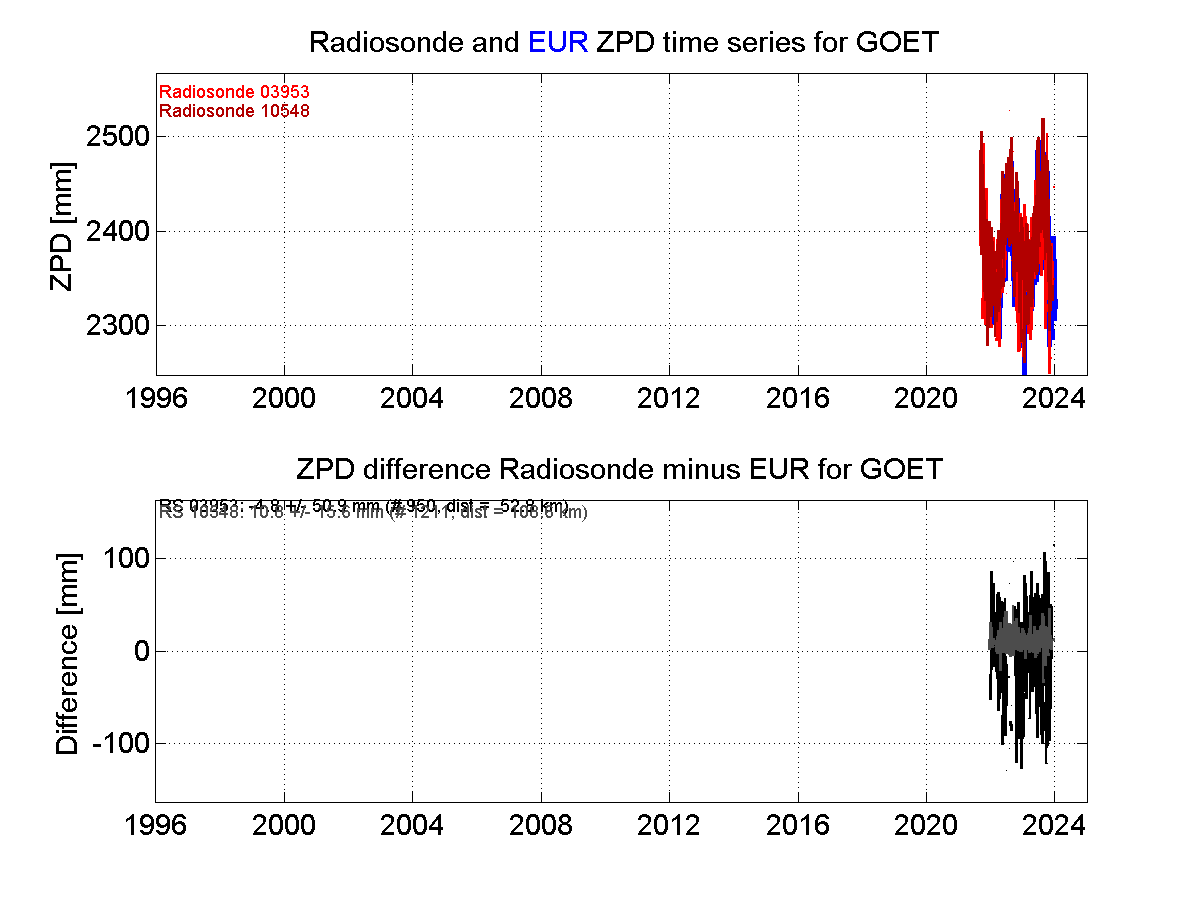

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Location

Pictures
