EUREF Permanent GNSS Network

Station Configuration

RESPONSIBLE AGENCY	CNES (Centre National d'Etudes Spatiales)
RESPONSIBLE FOR METADATA	CNES (Centre National d'Etudes Spatiales)
CURRENT STATION CONFIGURATION	gras00fra_20230713.log
STATUS IN EPN	included since 31-12-1995
DATA LICENSE	CC-BY-4.0
LAST AVAILABLE DATA	20-11-2024
LAST RECEIVER	TRIMBLE NETR9 (10-07-2023 to now)
SET TO TRACK	GPS+GLO+GAL+BDS+SBAS
LAST ANTENNA	ASH701945E_M/NONE (21-10-2004 to now)
INDIVIDUAL CALIBRATION(S)	none
DATA ROUTINELY ANALYSED BY	BEK, IGN, LPT, MUT, ROB, SGO
INCLUSION IN OTHER NETWORK(S)	IGS, EPOS

Data Provided

The RINEX 2 data are no more submitted to the EPN data centres since 14-12-2020.

No recent data available

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

GRAS00FRA0 :

ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/20 13:03 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/20 13:03 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt source table (GPS+GLO)
2024/11/20 13:03 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.56,30/SEP/2022) wrt site log (5.56)
2024/11/20 13:03 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0349 m) wrt site log (0.0350 m)

BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/20 09:49 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/20 09:49 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.56,30/SEP/2022) wrt site log (5.56)
2024/11/20 09:49 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0349 m) wrt site log (0.0350 m)

ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)
2024/11/20 11:11 RTCM 3.2 : Unexpected constellations in stream (GPS+GLO+GAL+BDS) wrt site log (GPS+GLO+GAL+BDS+SBAS)
2024/11/20 11:11 RTCM 3.2/1033: Incorrect Receiver Firmware Version in stream (5.56,30/SEP/2022) wrt site log (5.56)
2024/11/20 11:11 RTCM 3.2/1006: Incorrect Antenna Height in stream (0.0349 m) wrt site log (0.0350 m)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

RINEX Data Quality

Daily tracking performances

Monthly snapshots of satellite tracking

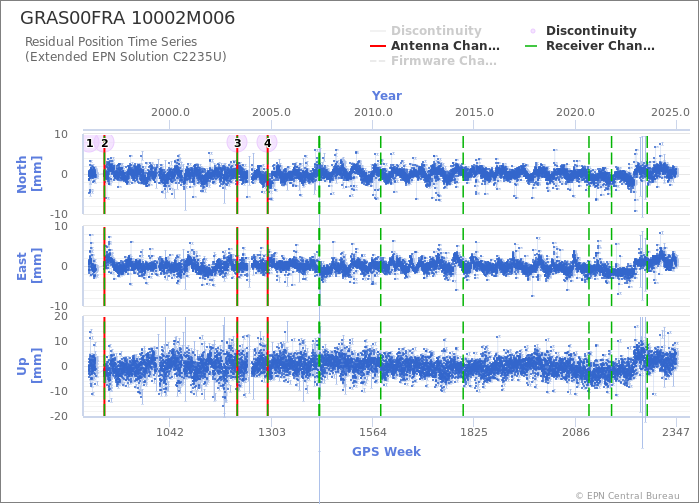

Position, Velocity & Time Series

EUREF is providing positions and velocities for the station GRAS00FRA
Last ETRF2000 position valid from 296/2004 to 316/2022 expressed at epoch 001/2010
X = 4581691.159 m	Vx = -0.0006 m/y
Y = 556114.578 m	Vy = -0.0003 m/y
Z = 4389360.563 m	Vz = -0.0006 m/y
