Graz, Austria (GRAZ00AUT)

RESPONSIBLE AGENCY BEV (Federal Office of Metrology and Surveying Austria)
RESPONSIBLE FOR METADATA BEV (Federal Office of Metrology and Surveying Austria)
CURRENT STATION CONFIGURATION graz00aut_20241106.log
STATUS IN EPN included since 31-12-1995
DATA LICENSE CC-BY-4.0
LAST AVAILABLE DATA 20-11-2024
LAST RECEIVER SEPT POLARX5 (20-09-2022 to now)
SET TO TRACK GPS+GLO+GAL+BDS
LAST ANTENNA LEIAR25.R4/LEIT (23-11-2017 to now)
INDIVIDUAL CALIBRATION(S) none
DATA ROUTINELY ANALYSED BY BEV, BKG, RGA, SGO, UPA
INCLUSION IN OTHER NETWORK(S) IGS, EPOS

The RINEX 2 data are no more submitted to the EPN data centres since 31-12-2020.

RINEX V2.11 - GPS+GLO
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 366/2020 N/A
BEV 316/2020 N/A
BKGI 366/2020 N/A
RINEX V3.04 - GPS+GLO+GAL+BDS
Daily
(data calendar)
Data centres Online Last data Availability Download
EPNCB (historical) 319/2024 78.57%
BEV 325/2024 92.86%
BKGI 325/2024 100%
Hourly

No recent data available

Hourly
Data centres Online Last data Availability Latency
BEV 326/2024 (H) 100% 97.62%
BKGI 326/2024 (H) 100% 97.62%

Daily and Hourly Latency Plots

Recent RINEX file errors detected by BKG data centre: web page

BKG upload settings to other data centres.

Real-time

GRAZ00AUT0 :

  • ASI (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 13:06 RTCM 3.2/1033: Incorrect Receiver SN in stream (3014106) wrt site log (4501501)

  • BKG (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 09:53 RTCM 3.2/1033: Incorrect Receiver SN in stream (3014106) wrt site log (4501501)

  • ROB (broadcaster, registration) - RTCM 3.2 : GPS+GLO+GAL+BDS (MSM7)

    2024/11/20 11:14 RTCM 3.2/1033: Incorrect Receiver SN in stream (3014106) wrt site log (4501501)

information above extracted from monitor files - https://epncb.oma.be/pub/station/real_time/

Real-time Latency Plots

Daily tracking performances

Daily tracking performances
Monthly snapshots of satellite tracking

Monthly snapshots of satellite tracking
EUREF is providing positions and velocities for the station GRAZ00AUT
Last ETRF2000 position valid from 297/2016 to 316/2022
expressed at epoch 001/2010
X = 4194424.120 m Vx = -0.0009 m/y
Y = 1162702.460 m Vy = 0.0002 m/y
Z = 4647245.201 m Vz = -0.0003 m/y

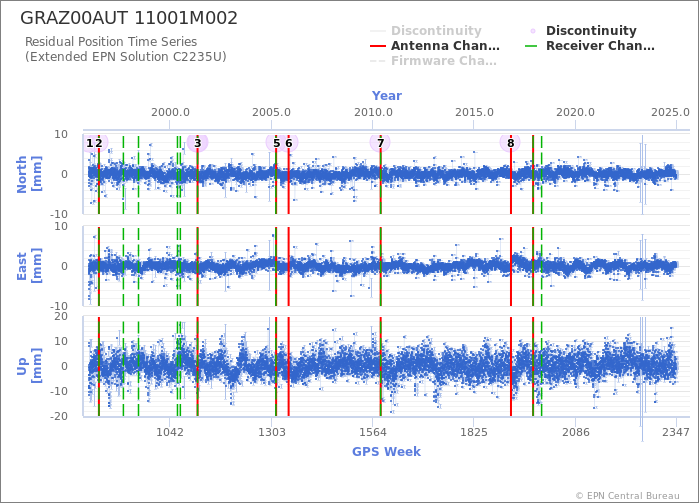

Position time series

Position time series

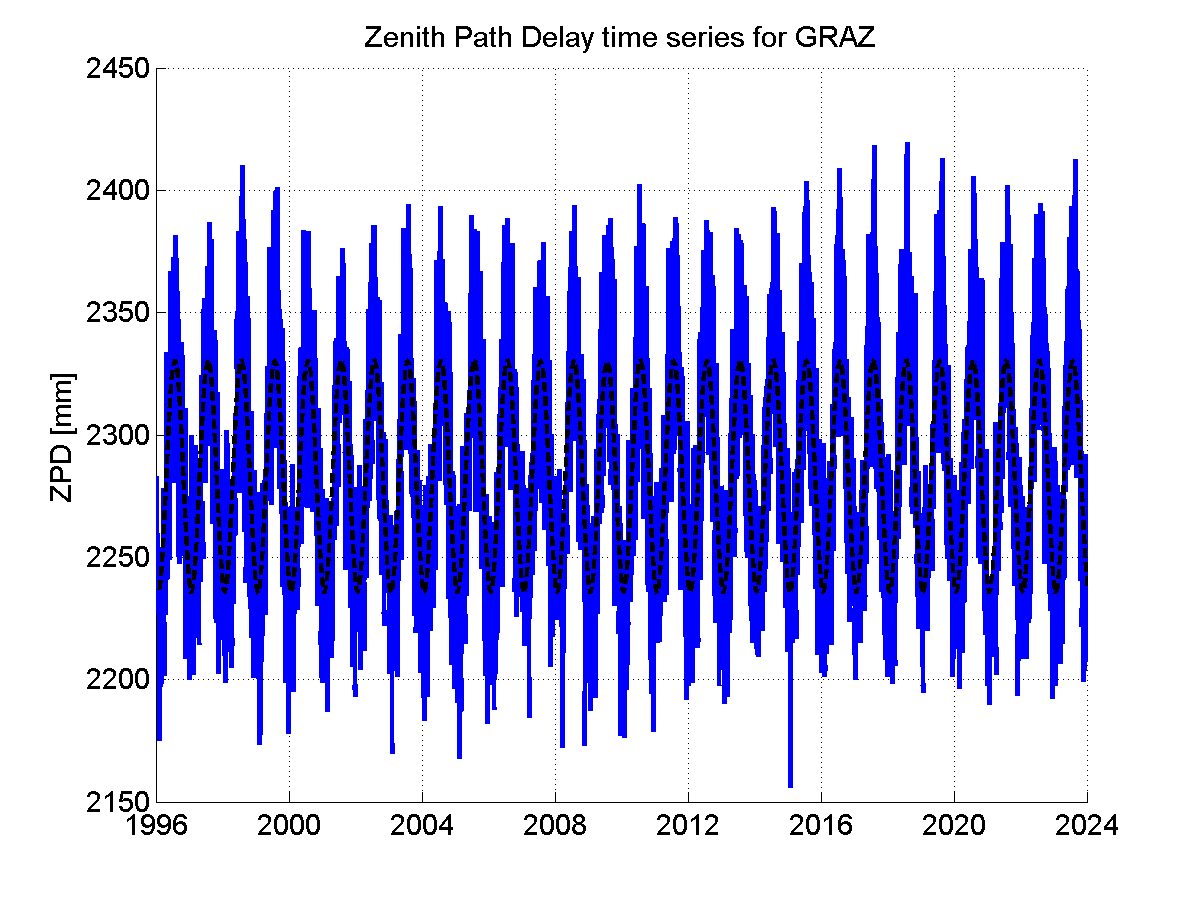

Zenith Path Delays extracted from weekly EPN troposphere solution

Zenith Path Delays extracted from weekly EPN troposphere solution (including monthly means)

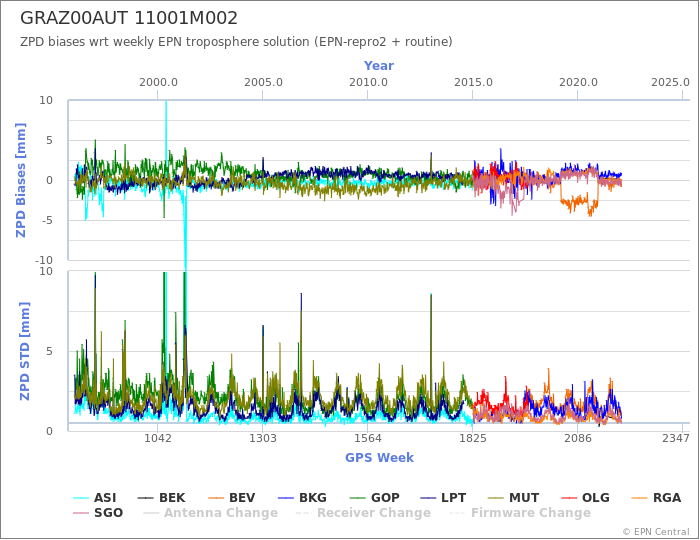

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

Zenith Path Delay biases of each AC wrt weekly EPN troposphere solution

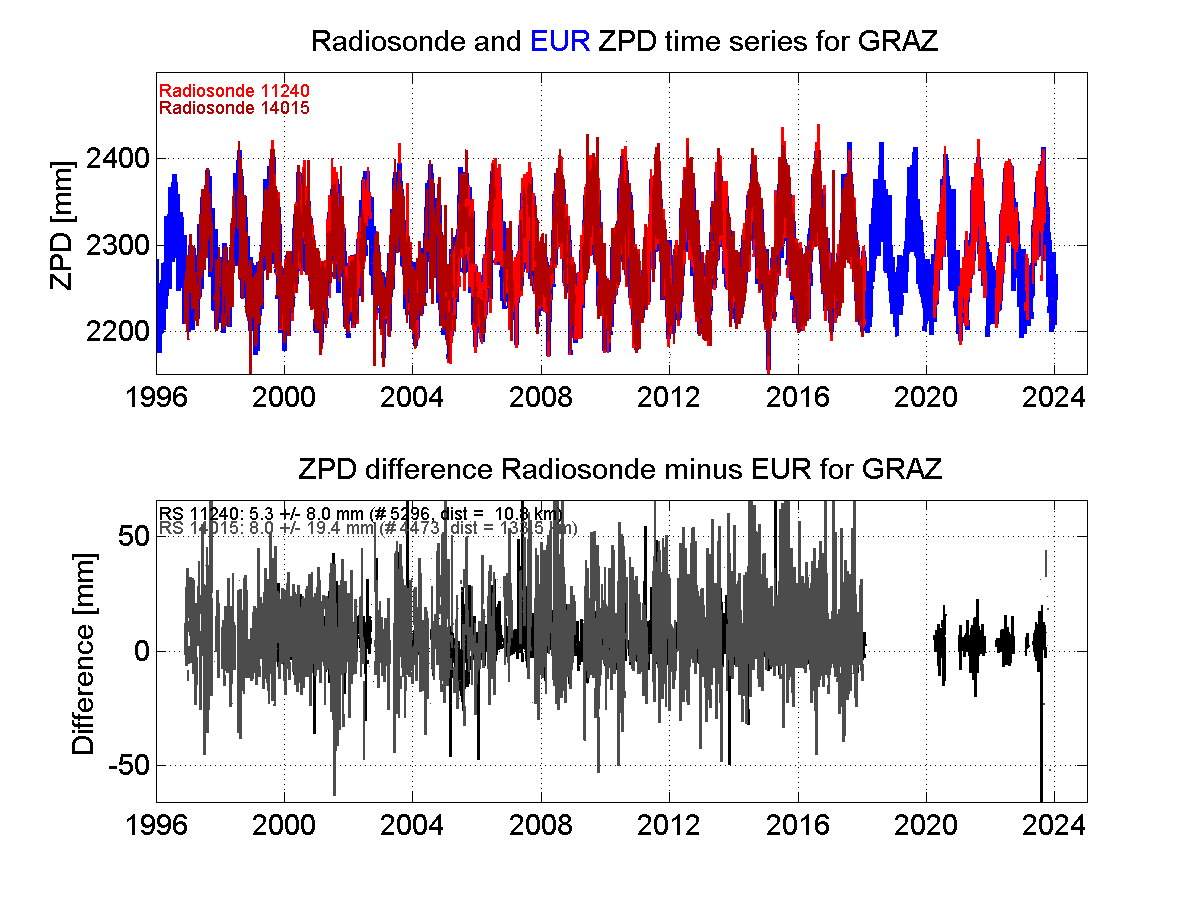

Zenith Path Delay differences between radiosonde data and EPN troposphere solution

Zenith Path Delay differences between radiosonde data and EPN troposphere solution
